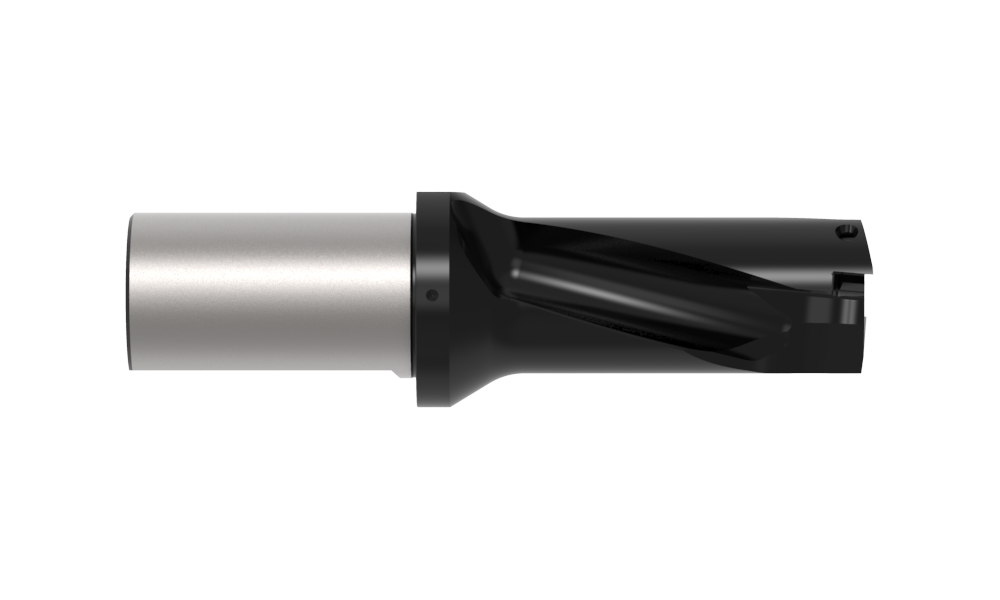

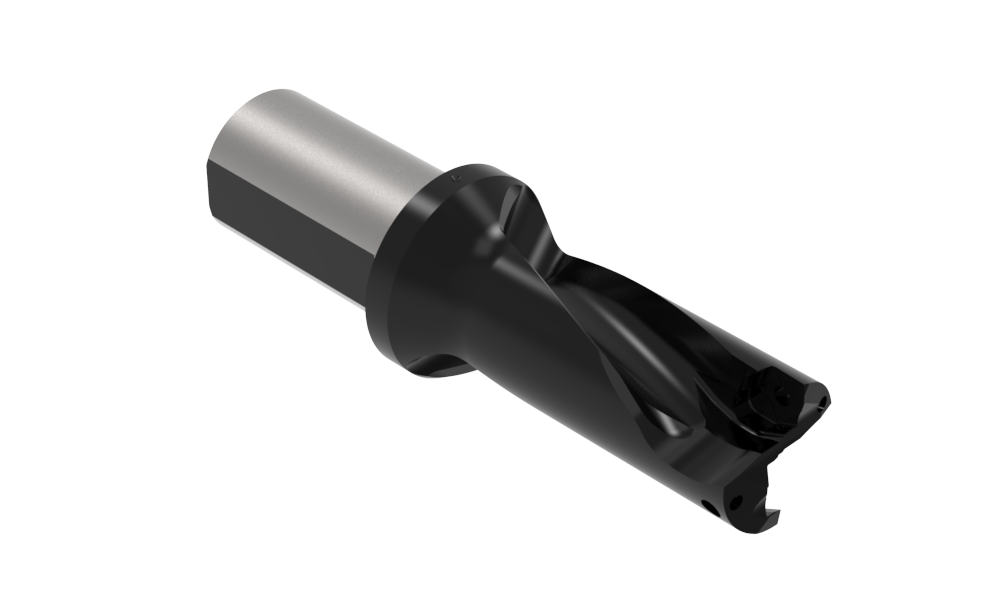

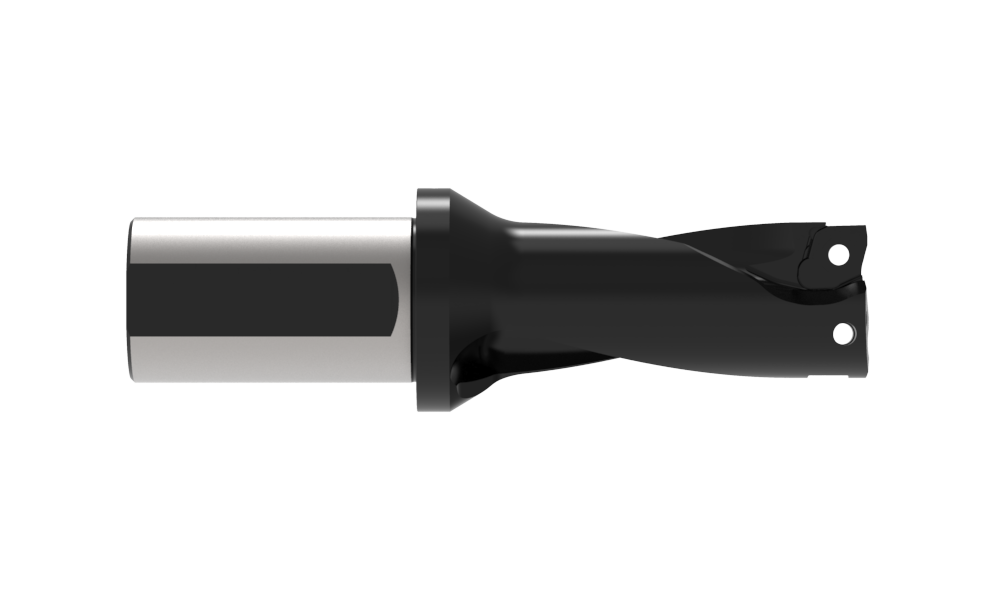

| Type of Product | Indexable Insert Drill |
| Minimum diameter mm | 39.51 |
| Maximum diameter inch | 1.562 |
| Cutter Diameter inch | 1.562 |
| Depth to Diameter | 2XD |
| Series | 14 |
| Quantity of Inserts | 2 |
| Insert prefix | 4T-140408 |
| Coolant Through | Yes |
| Drill depth inch | 3.124 |
| Diameter Fractional Equivalent | 1 9/16 |
| Gage length inch | 4.34645669291339 |
| Assembled overall length inch | 7.06299212598425 |
| Shank type | Flanged |
| Flat | Yes |
| Shank diameter inch | 1.5 |
| Flange diameter inch | 2.1259842519685 |
