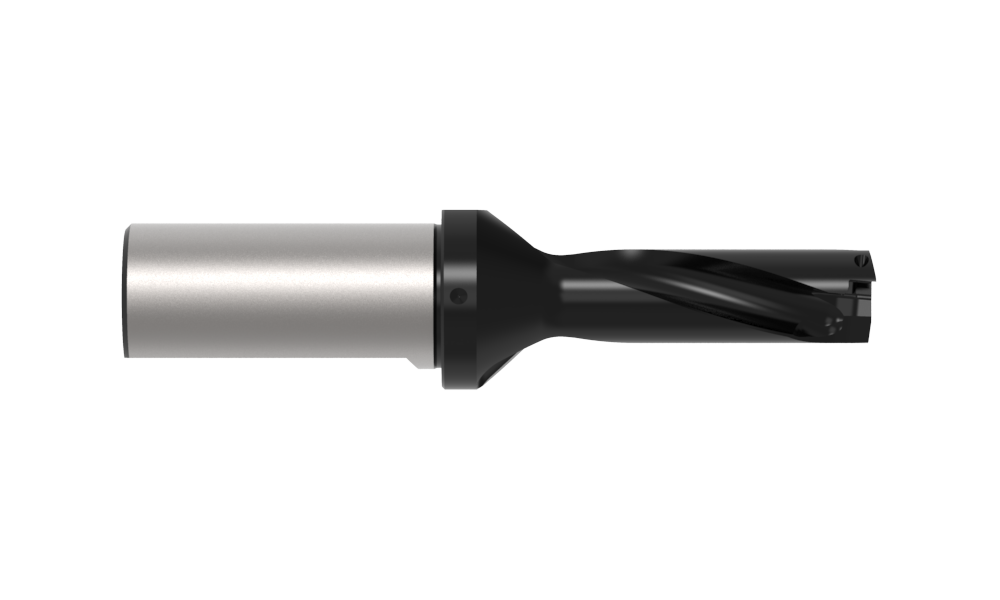

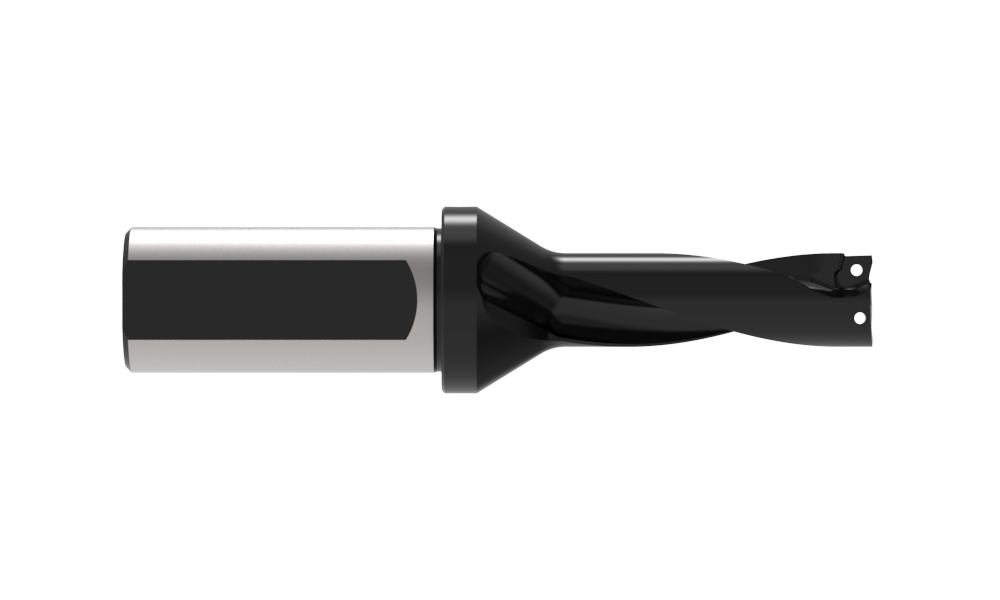

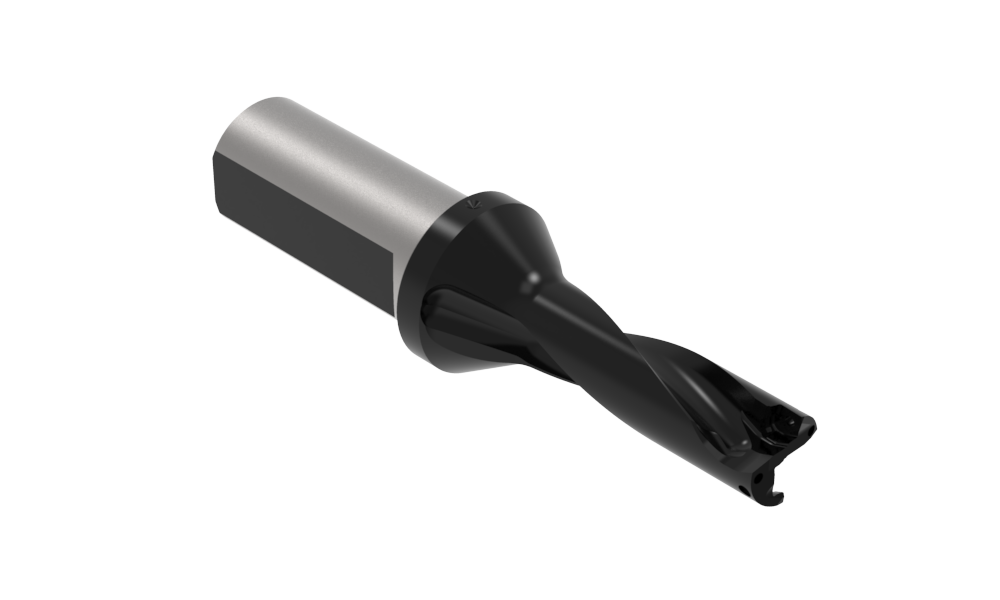

| Type of Product | Indexable Insert Drill |
| Minimum diameter mm | 16.51 |
| Maximum diameter inch | 0.656 |
| Cutter Diameter inch | 0.656 |
| Depth to Diameter | 3XD |
| Series | 05 |
| Quantity of Inserts | 2 |
| Insert prefix | 4T-05T203 |
| Coolant Through | Yes |
| Drill depth mm | 49.98 |
| Diameter Fractional Equivalent | 21/32 |
| Gage length mm | 73 |
| Assembled overall length inch | 127 |
| Shank type | Flanged |
| Flat | Yes |
| Shank diameter mm | 25 |
| Flange diameter mm | 32 |
