HTA0AC45-20FM
T-A Pro® Replaceable Drill Body: 12.70 mm - 15.07 mm, Drill & Chamfer, Flanged Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

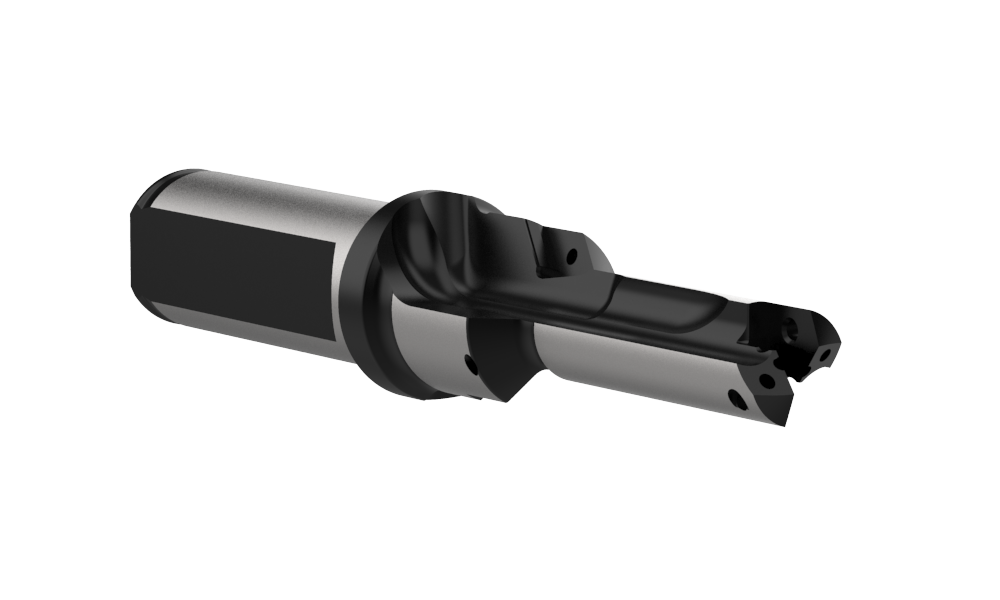

Angle

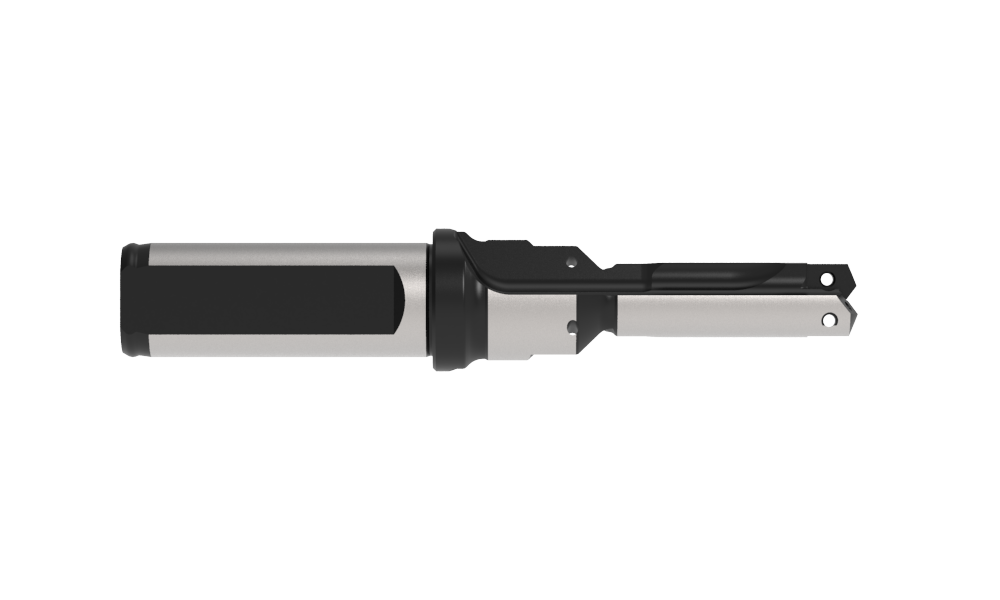

Front

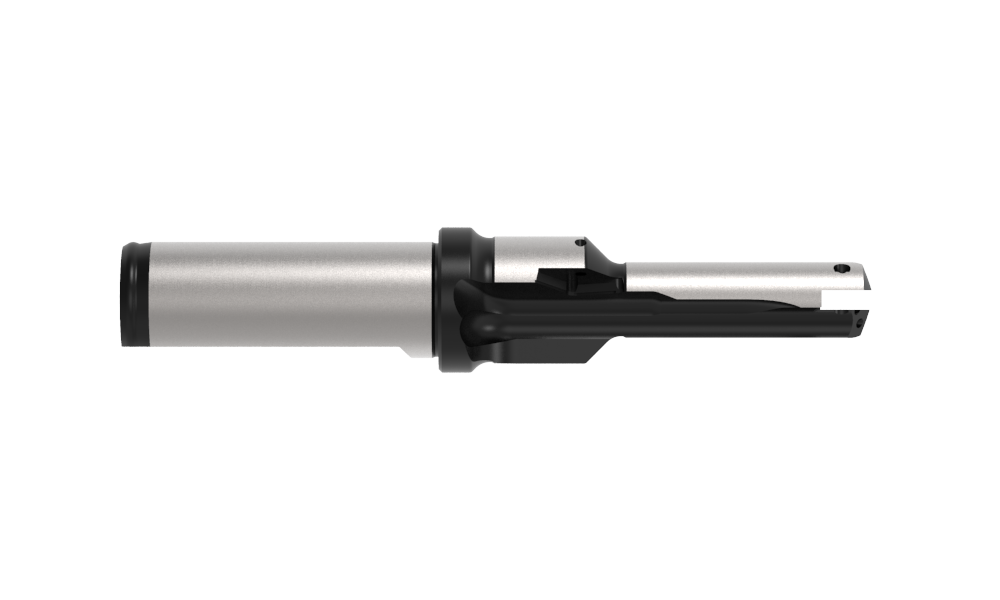

Top
Product Specifications
Series 0
Sub-Series A
Minimum diameter mm 12.70
Maximum diameter mm 15.07
Length Type Drill & Chamfer
Flute Type Straight
Overall length mm 120.7
Tool Reference Length mm 73.4
Body length mm 70.7
Drill depth mm 57.9
Shank type Flanged
Shank diameter mm 20
Shank length mm 50.0
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.447
Weight in kg (each) 0.2
Category Stocked
