HTA0B01-075F
T-A Pro® Replaceable Drill Body: 0.5510" - 0.6946", Stub, Flanged Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

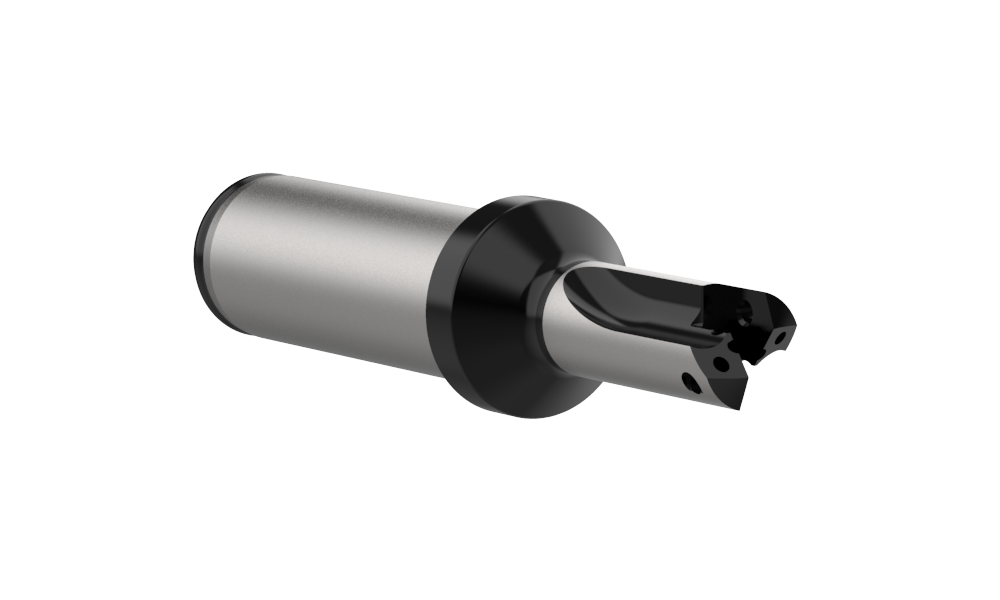

Angle

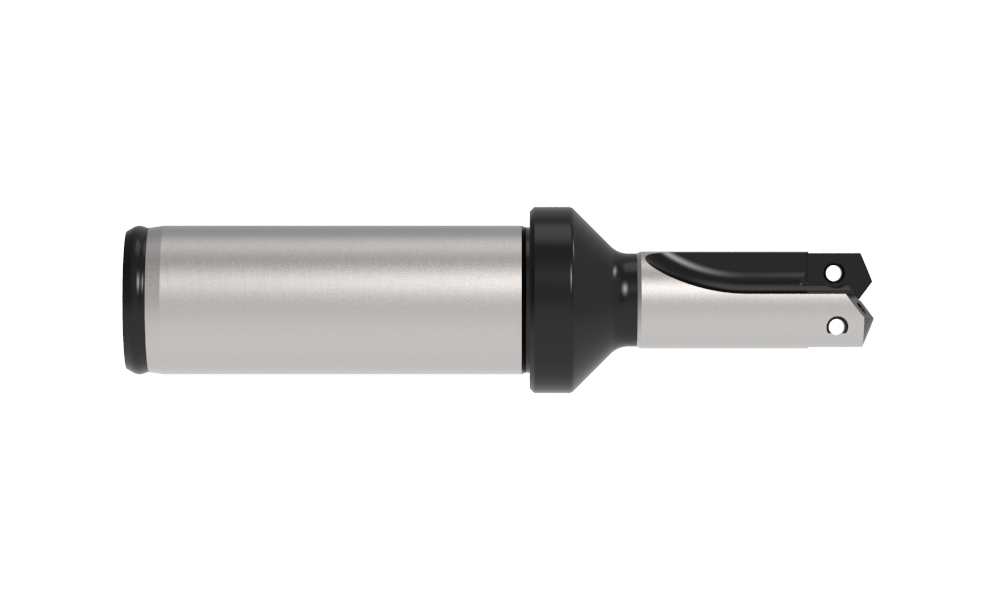

Front

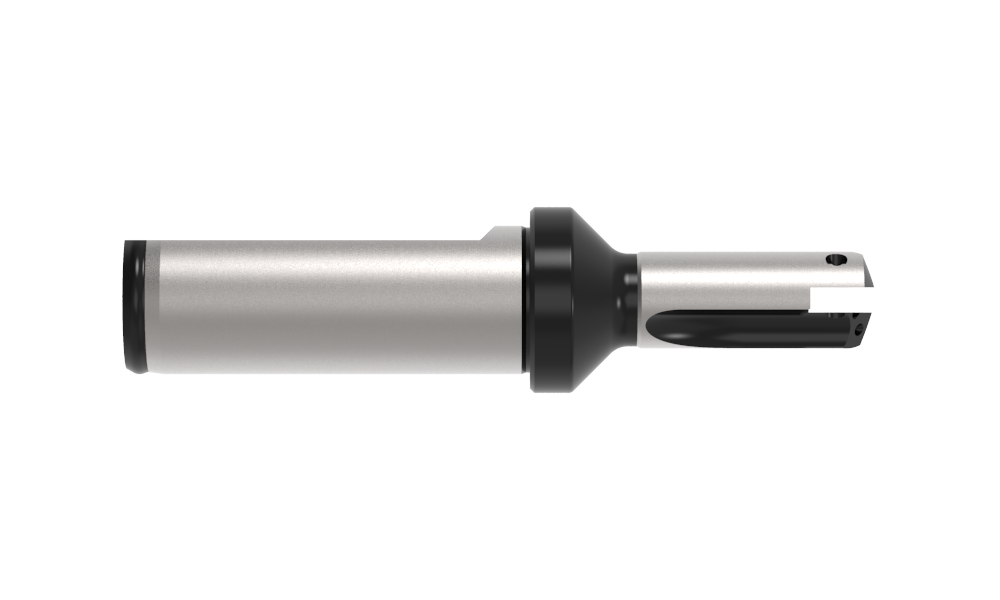

Top
Product Specifications
Series 0
Sub-Series B
Minimum diameter inch 0.5510
Maximum diameter inch 0.6946
Length Type Stub
Flute Type Straight
Overall length inch 3.761
Tool Reference Length inch 1.838
Body length inch 1.731
Drill depth inch 0.603
Shank type Flanged
Shank diameter inch 3/4
Shank length inch 2.030
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement T-A® Screw
0 KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.36
Weight in kg (each) 0.16
Category Stocked
