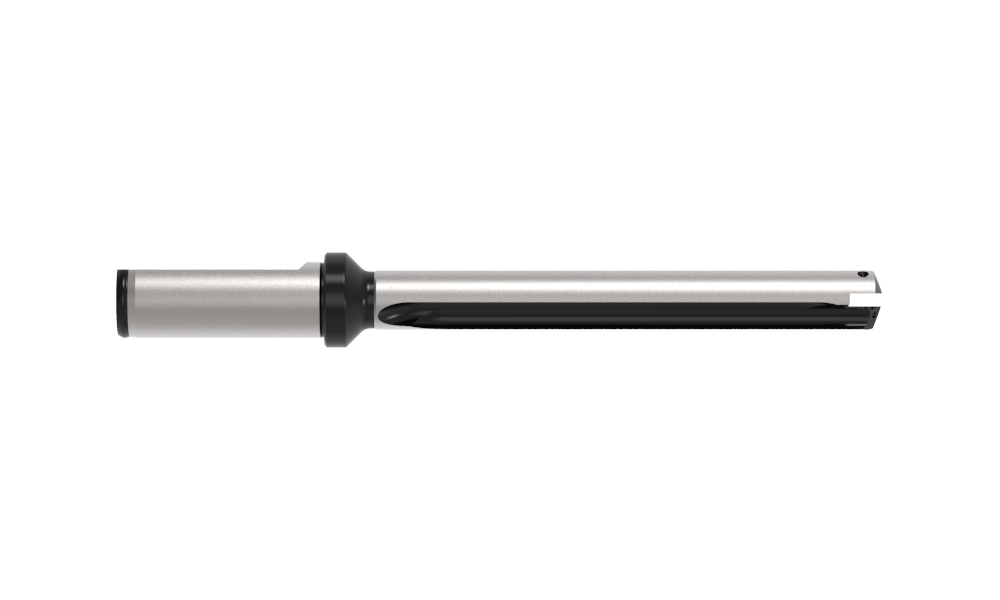

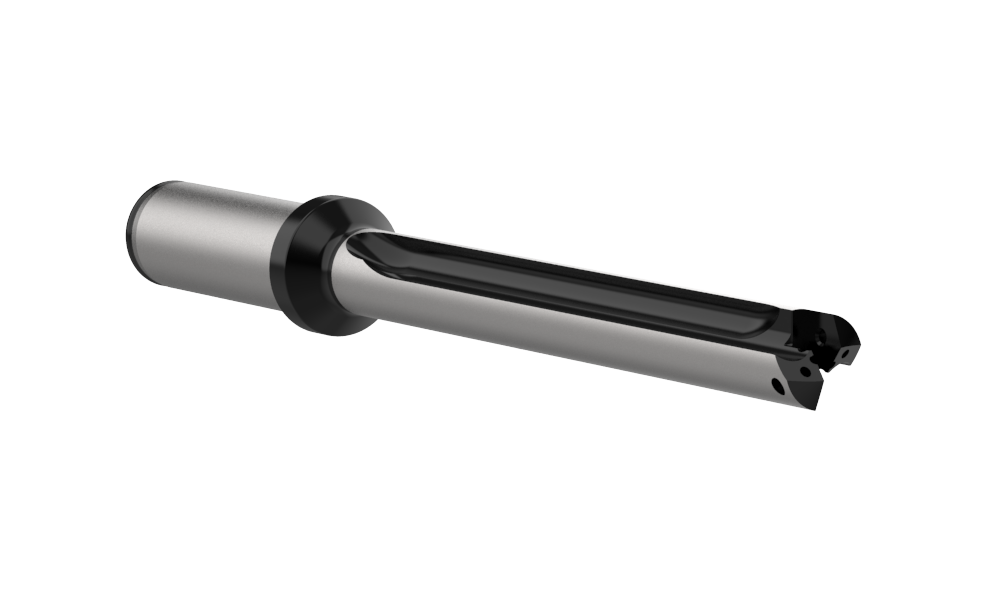

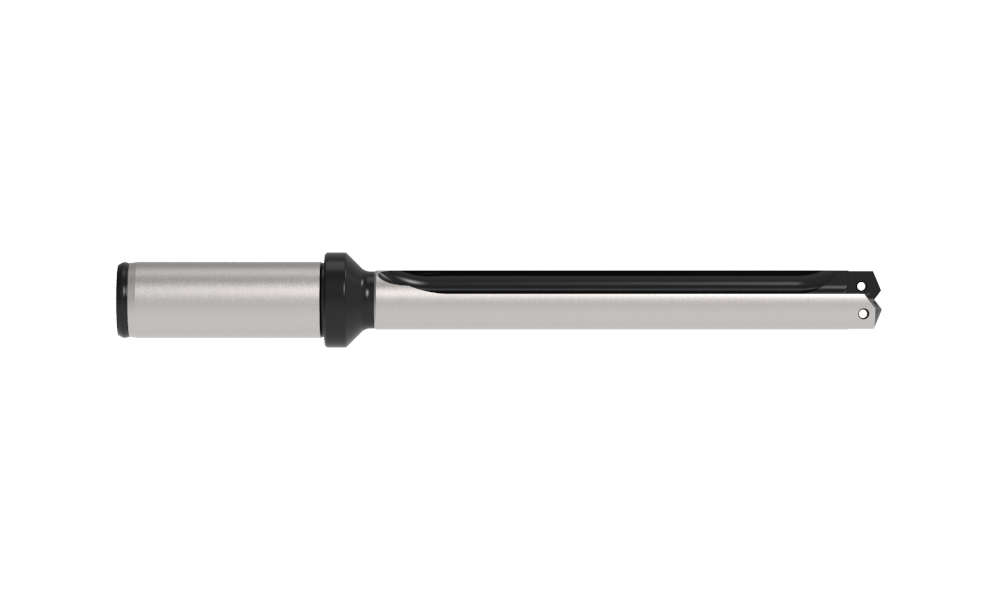

HTA0C07-20FM
0-C TA PRO HLD 7XD 20MM FL
T-A Pro® Holder






Product Specifications
Series0
Sub-SeriesC
Minimum diameter mm15.08
Maximum diameter mm17.64
Length Type7xD
Flute TypeStraight
Overall length mm189.10
Tool Reference Length mm141.81
Body length mm139.09
Drill depth mm107.92
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationHigh Performance
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.58
CategoryStocked
