HTA1A07-25FM
1-A TA PRO HLD 7XD 25MM FL

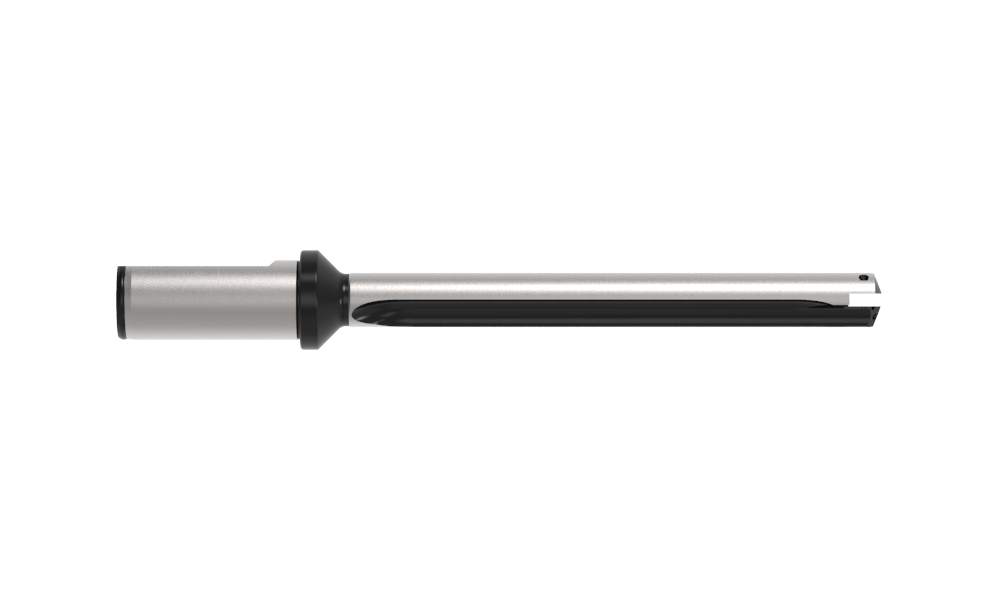

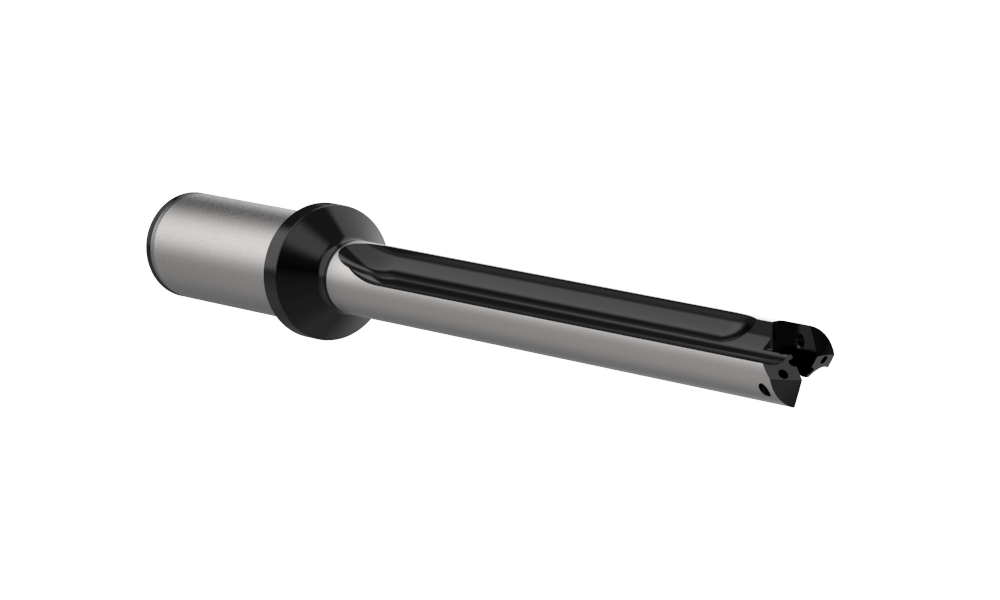

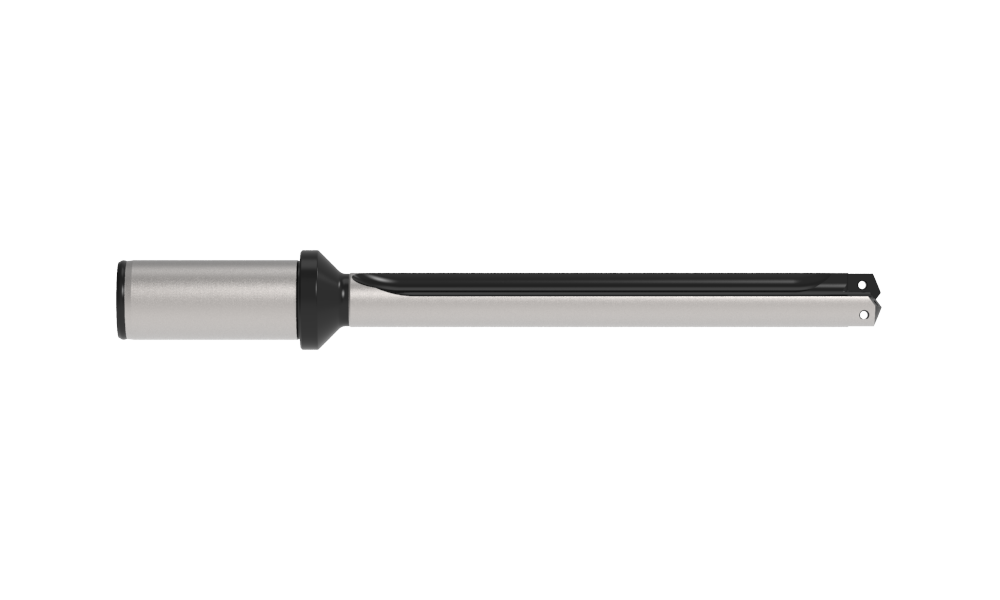

T-A Pro® Holder






Product Specifications
Series1
Sub-SeriesA
Minimum diameter mm17.65
Maximum diameter mm24.37
Length Type7xD
Flute TypeStraight
Overall length mm240.74
Tool Reference Length mm188.29
Body length mm184.73
Drill depth mm148.11
Shank typeFlanged
Shank diameter mm25
Shank length mm56.0
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationHigh Performance
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.05
CategoryStocked
