HTA1D03-25FM
T-A Pro® Replaceable Drill Body: 22.90 mm - 24.37 mm, 3xD, Flanged Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

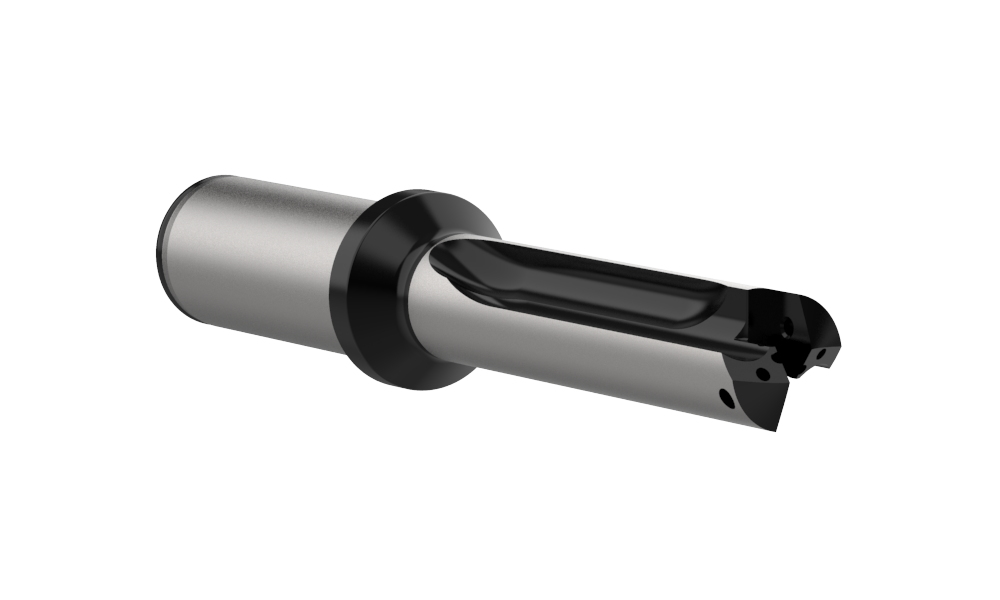

Angle

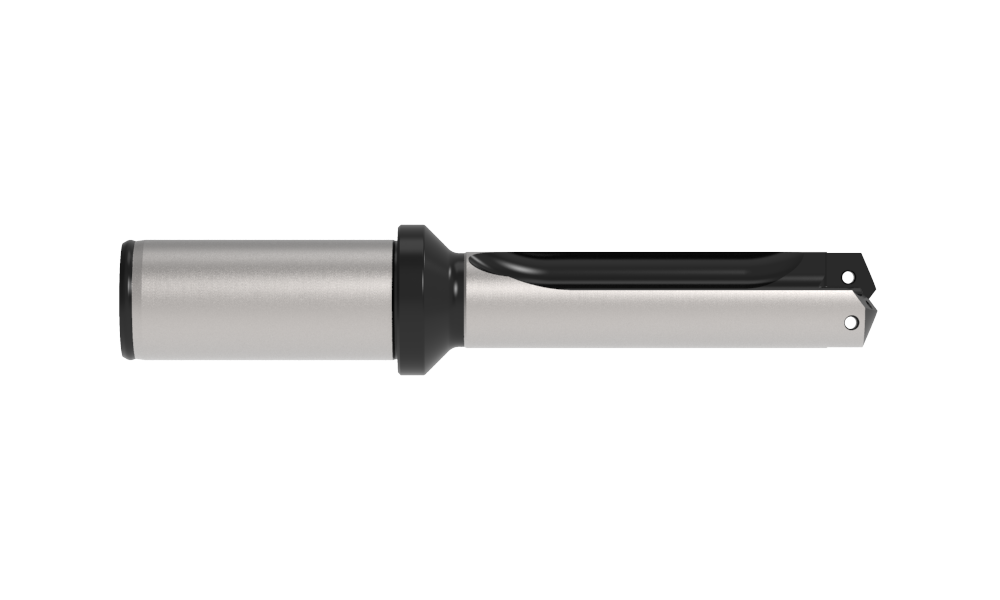

Front
Top
Product Specifications
Series 1
Sub-Series D
Minimum diameter mm 22.90
Maximum diameter mm 24.37
Length Type 3xD
Flute Type Straight
Overall length mm 156.9
Tool Reference Length mm 104.5
Body length mm 100.9
Drill depth mm 62.9
Shank type Flanged
Shank diameter mm 25
Shank length mm 56.0
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 739-IP9-1 (Qty0)
Replacement T-A® Screw
1.5 KIT (1) TORX PLUS, CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.99
Weight in kg (each) 0.45
Category Stocked
