HTA2B15-125C
T-A Pro® Replaceable Drill Body: 0.9999" - 1.3797", 15xD, Cylindrical Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

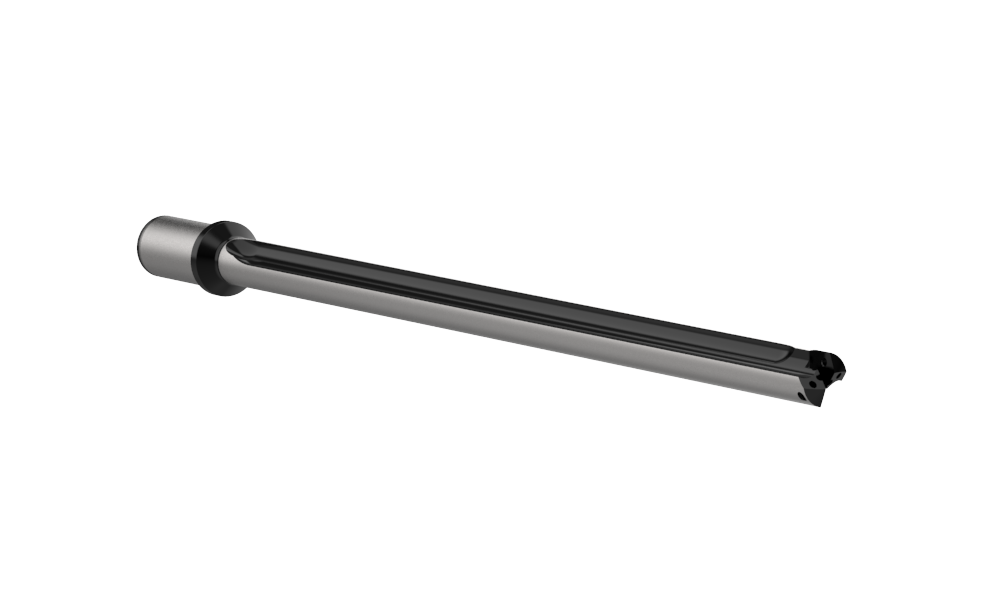

Angle

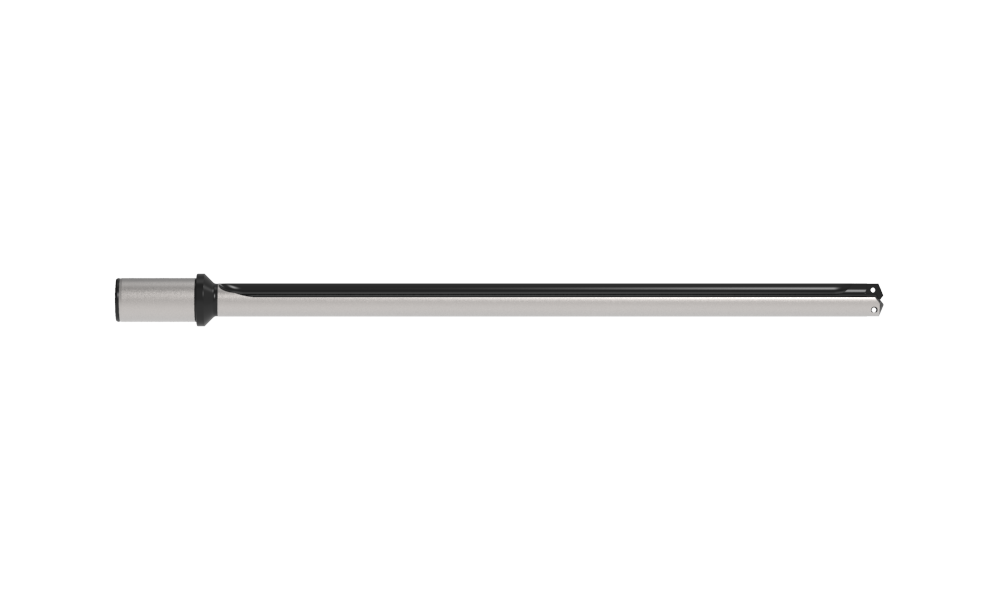

Front

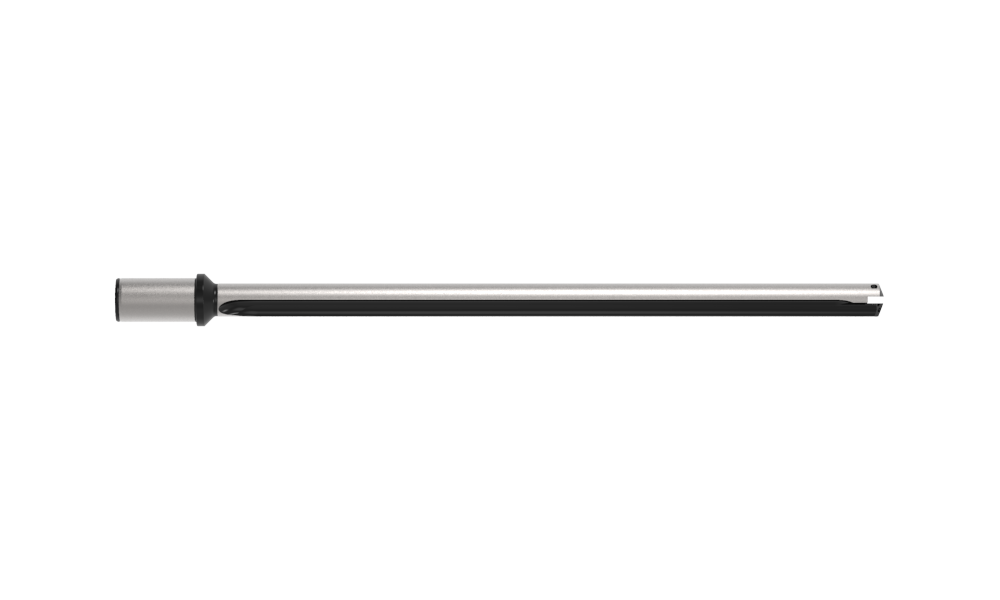

Top
Product Specifications
Series 2
Sub-Series B
Minimum Diameter (inch) 0.9999
Maximum Diameter (inch) 1.3797
Length Type 15xD
Flute Type Straight
Overall Length (inch) 21.743
Tool Reference Length (inch) 19.603
Body Length (inch) 19.463
Drill Depth (inch) 17.565
Shank Type Cylindrical
Shank Diameter (inch) 1-1/4
Shank Length (inch) 2.280
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 3.64
Weight in kg (each) 1.65
Category Stocked
