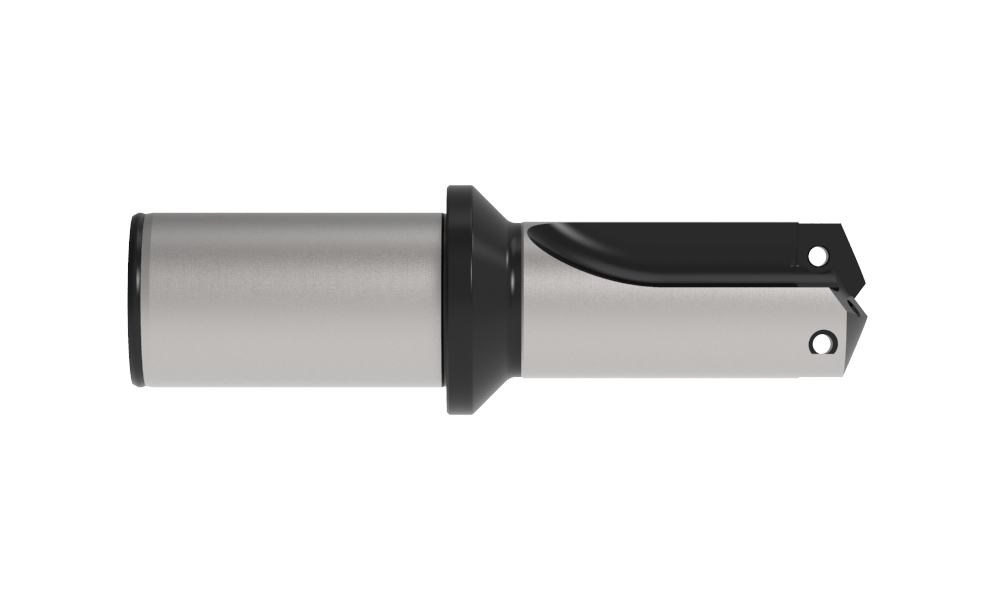

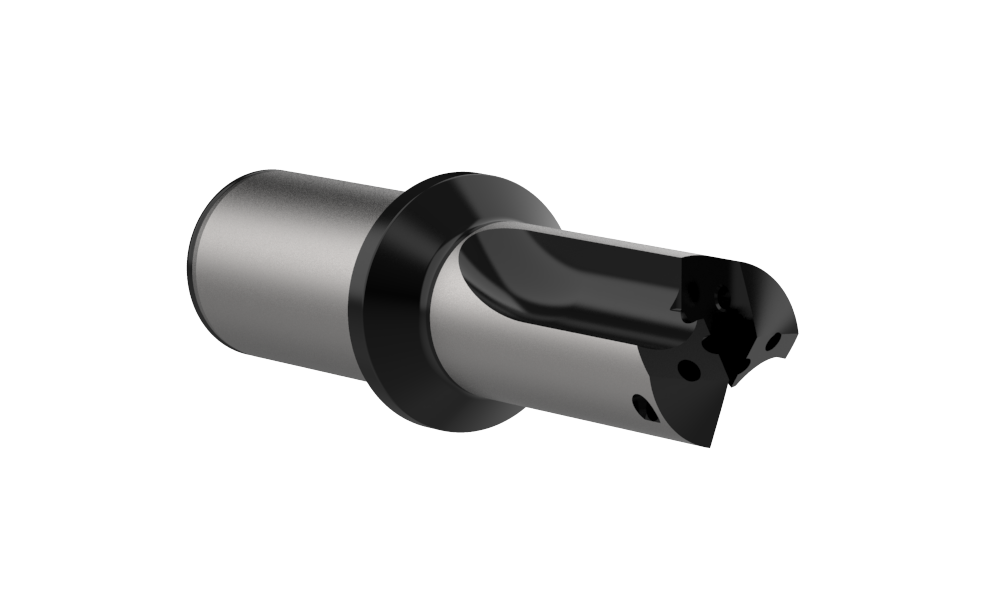

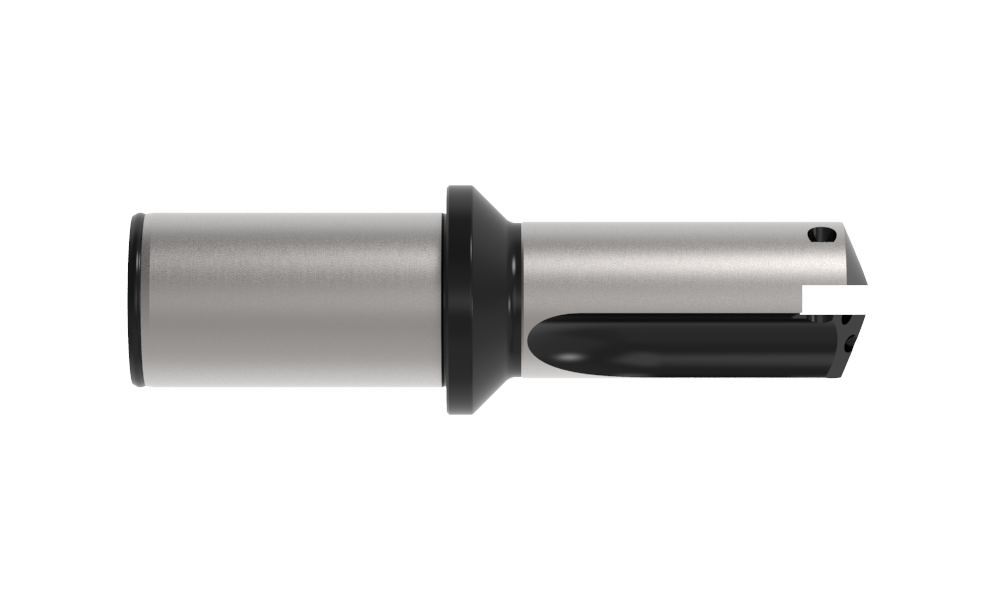

HTA3A01-40CM
3-A TA PRO HLD STUB 40MM CYL
T-A Pro® Holder





See Additional Technical Information

Product Specifications
Series3
Sub-SeriesA
Minimum diameter mm35.05
Maximum diameter mm47.80
Length TypeStub
Flute TypeStraight
Overall length mm162.3
Tool Reference Length mm97.1
Body length mm92.3
Drill depth mm41.1
Shank typeCylindrical
Shank diameter mm40
Shank length mm70.0
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationHigh Performance


Related Items
7514-IP20-1     (Qty: 0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
8IP-20     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)2.74
CategoryStocked
