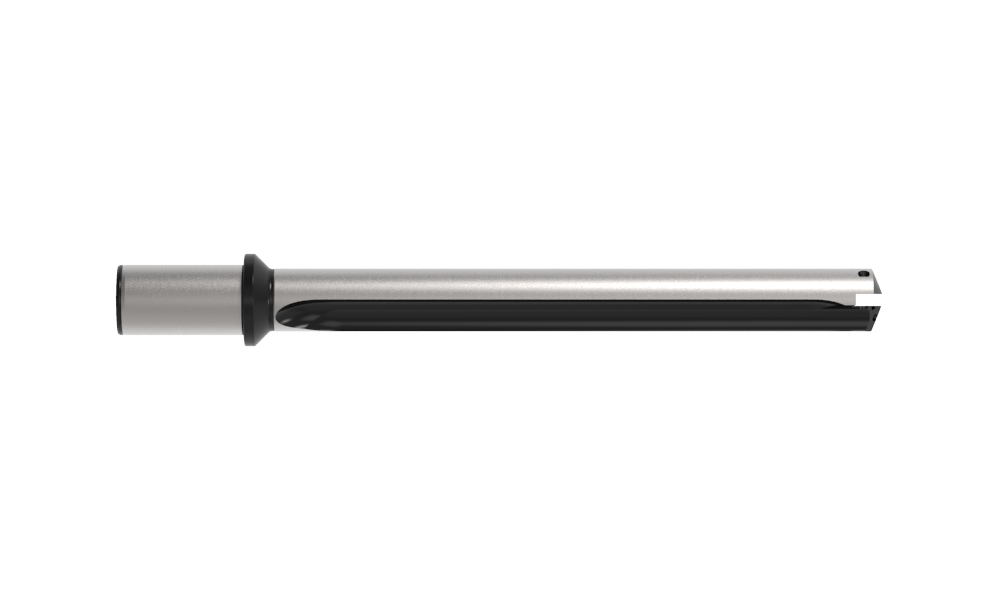

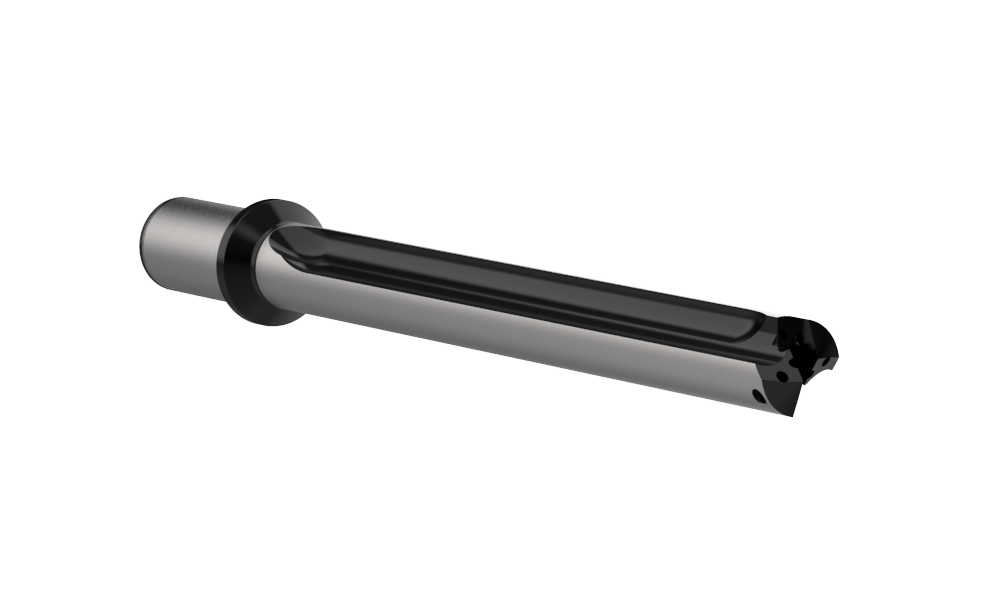

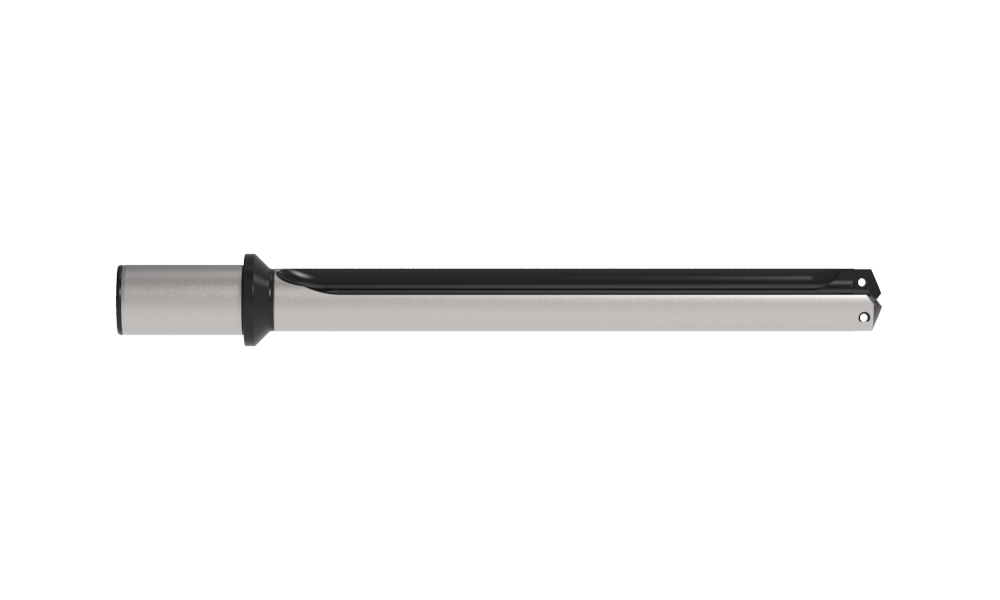

HTA3B07-40CM
3-B TA PRO HLD 7XD 40MM CYL
T-A Pro® Holder





See Additional Technical Information

Product Specifications
Series3
Sub-SeriesB
Minimum diameter mm37.80
Maximum diameter mm47.80
Length Type7xD
Flute TypeStraight
Overall length mm414.5
Tool Reference Length mm349.2
Body length mm344.4
Drill depth mm287.7
Shank typeCylindrical
Shank diameter mm40
Shank length mm70.0
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationHigh Performance


Related Items
7514-IP20-1     (Qty: 0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
8IP-20     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)6
CategoryStocked
