HTAZA03-20CM
T-A Pro® Replaceable Drill Body: 11.10 mm - 12.69 mm, 3xD, Cylindrical Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

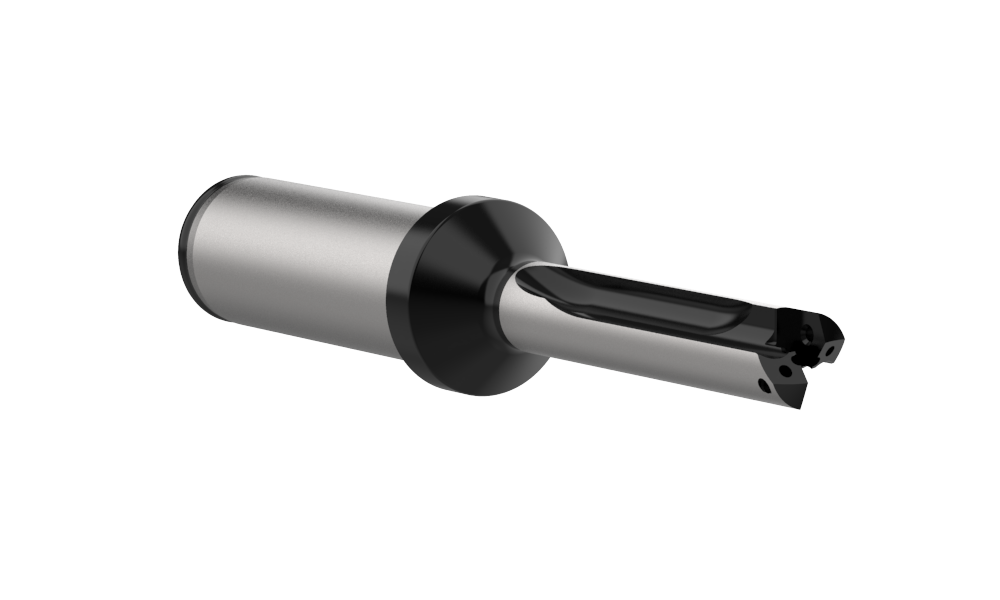

Angle

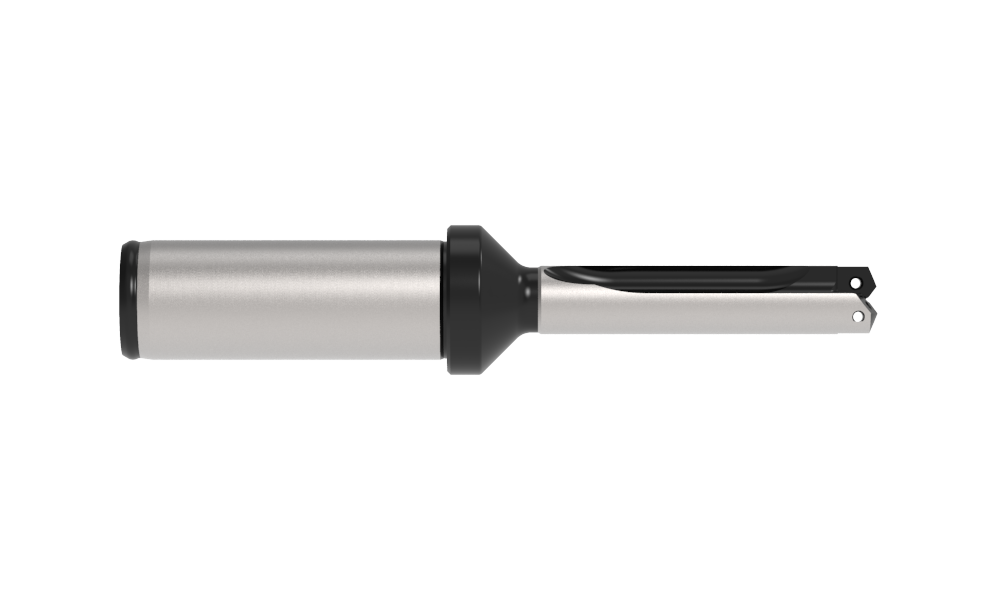

Front

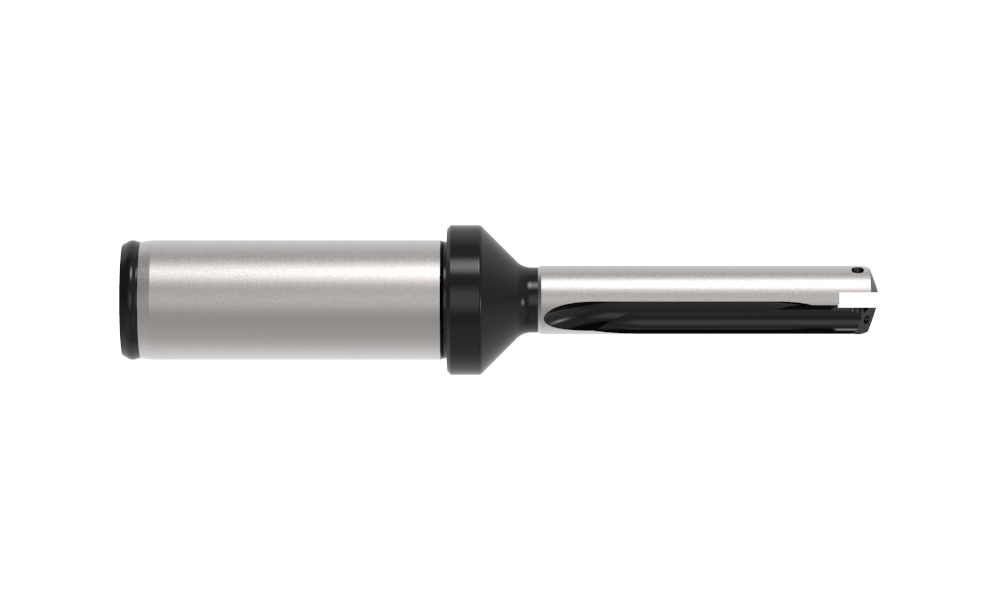

Top
Product Specifications
Series Z
Sub-Series A
Minimum diameter mm 11.10
Maximum diameter mm 12.69
Length Type 3xD
Flute Type Straight
Overall length mm 118.4
Tool Reference Length mm 70.4
Body length mm 68.4
Drill depth mm 36.1
Shank type Cylindrical
Shank diameter mm 20
Shank length mm 50.0
Deep Hole Guidelines No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement T-A® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.4
Weight in kg (each) 0.18
Category Stocked
