| Series | Z |
| Sub-Series | A |
| Minimum diameter inch | 0.4369 |
| Maximum diameter inch | 0.4998 |
| Length Type | 15xD |
| Flute Type | Straight |
| Overall length inch | 10.411 |
| Tool Reference Length inch | 8.461 |
| Body length inch | 8.381 |
| Drill depth inch | 7.144 |
| Shank type | Flanged |
| Shank diameter inch | 3/4 |
| Shank length inch | 2.030 |
| Deep Hole Guidelines | Yes |

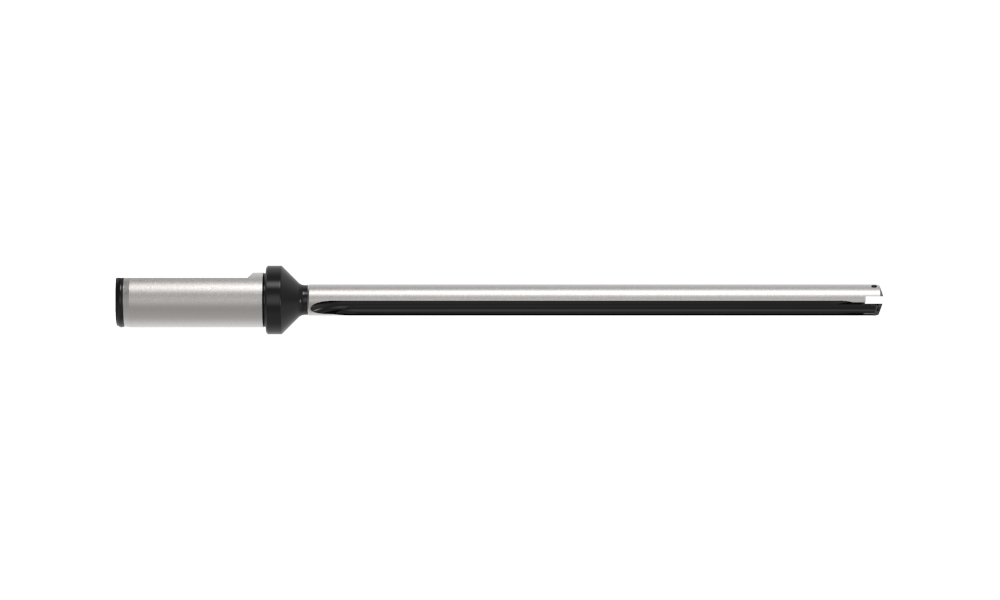

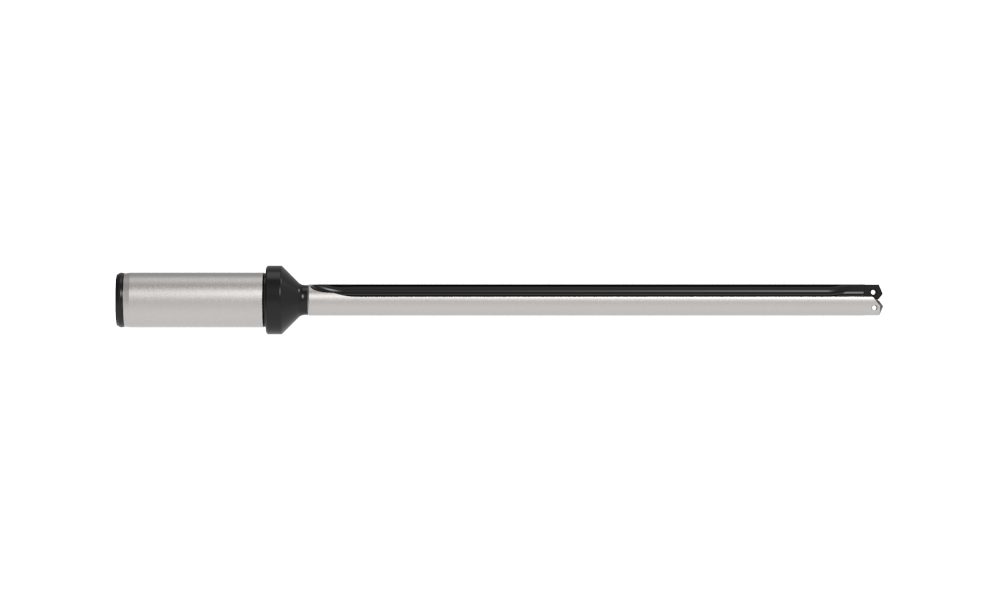

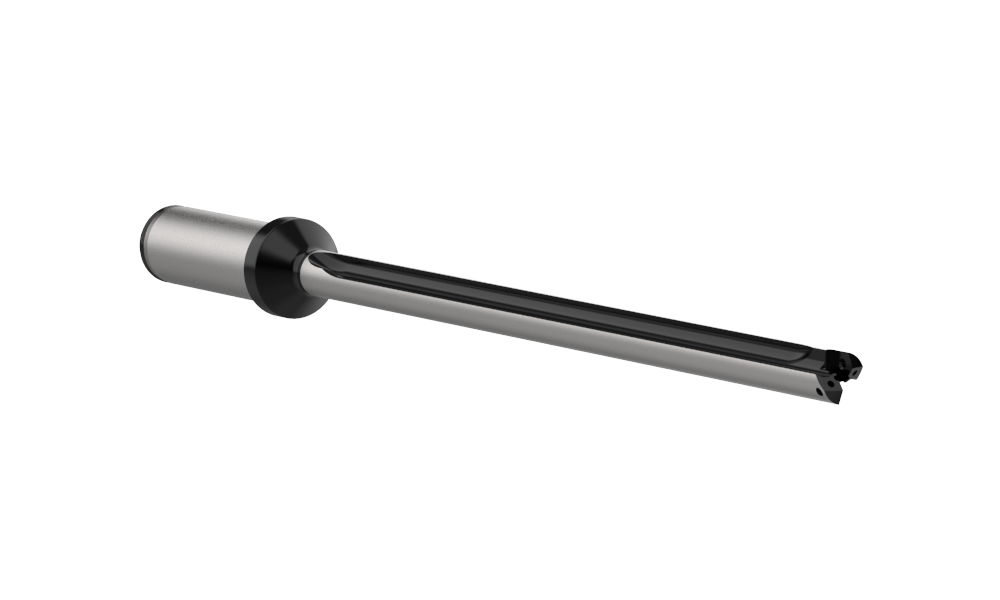

| Type of Product | Replaceable Drill Body |
| Product Application | High Performance |
