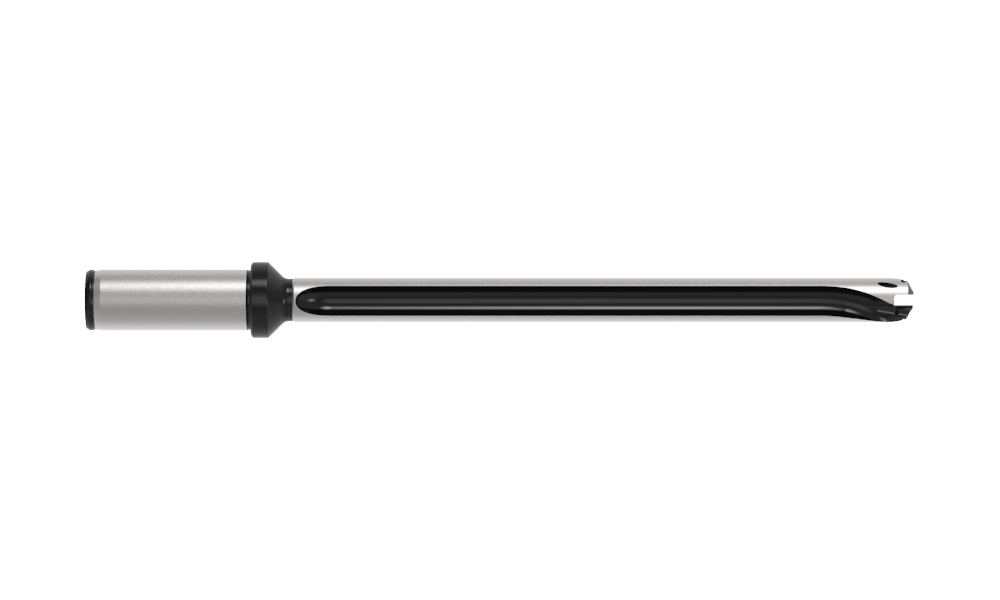

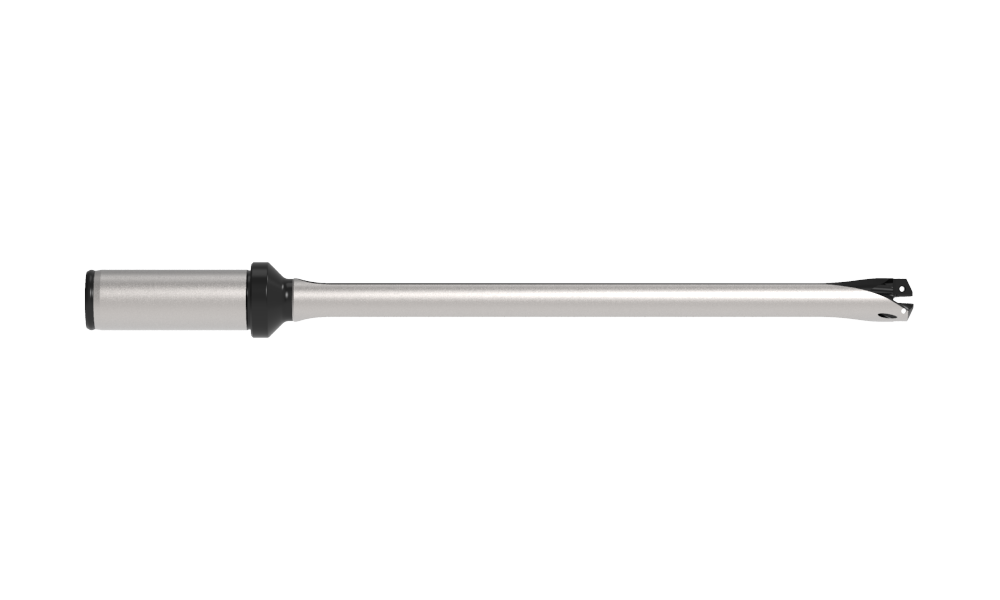

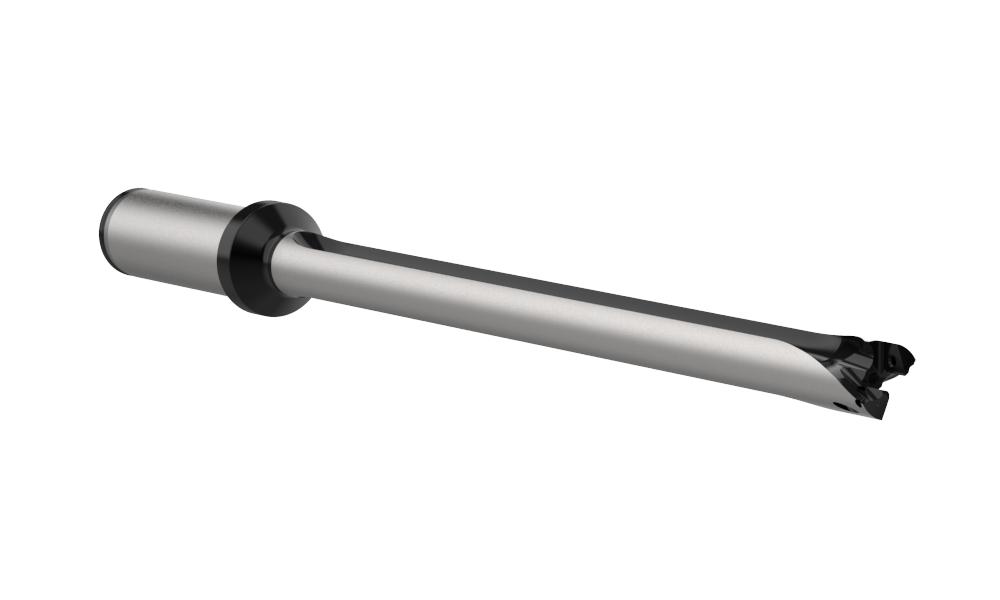

HXT1214S-20CM
14MM 12X HXT HLD 20MM CYL
GEN3SYS® XT Pro Holder






Product Specifications
Series14
Minimum diameter mm14.00
Maximum diameter mm14.99
Length Type12xD
Flute TypeStraight
Overall length mm259.7912
Tool Reference Length mm209.7912
Body length inch8.158
Body length mm207.2132
Drill depth mm180
Shank typeCylindrical
Shank diameter mm20
Shank length mm50
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationHigh Performance


Related Items
7247-IP7-1     (Qty: 0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
8IP-7     (Qty: 0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.544
CategoryStocked
