| Series | 17 |
| Minimum diameter inch | 0.6693 |
| Maximum diameter inch | 0.7086 |
| Length Type | 12xD |
| Flute Type | Straight |
| Overall length inch | 11-27/32 |
| Tool Reference Length inch | 9-13/16 |
| Body length inch | 9.682 |
| Drill depth inch | 8-1/2 |
| Shank type | Cylindrical |
| Shank diameter inch | 3/4 |
| Shank length inch | 2-1/32 |
| Deep Hole Guidelines | Yes |

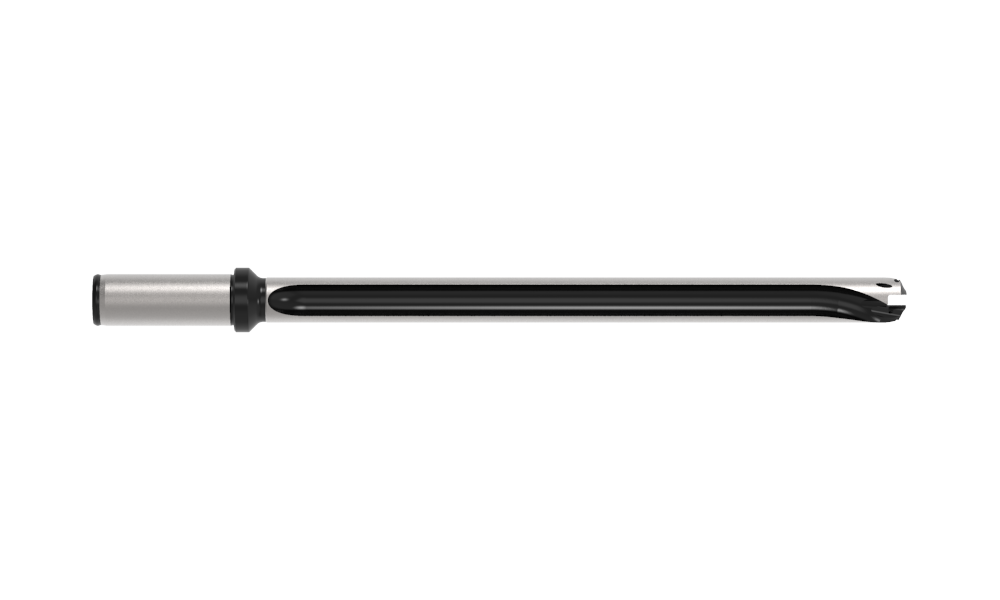

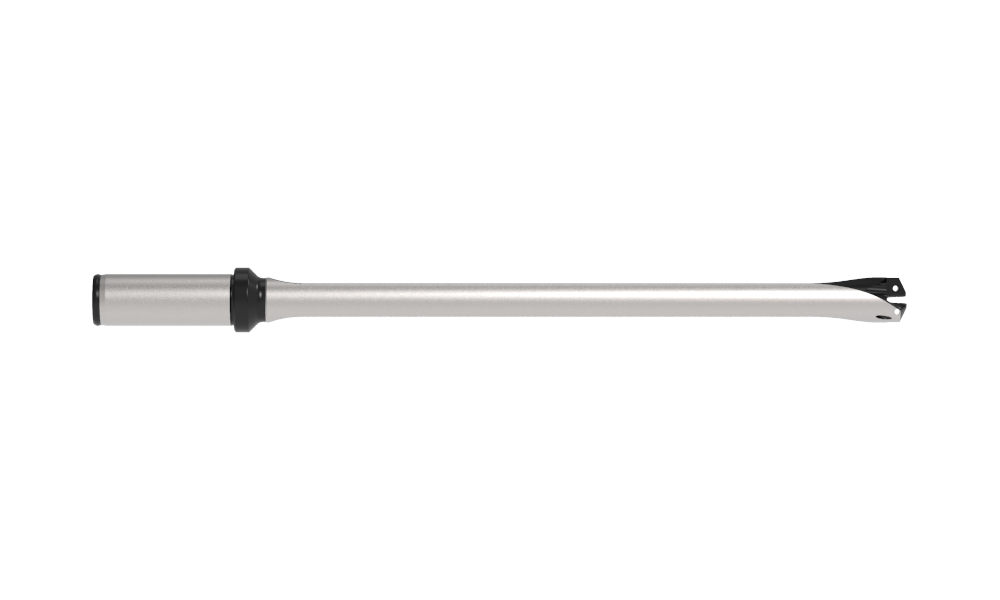

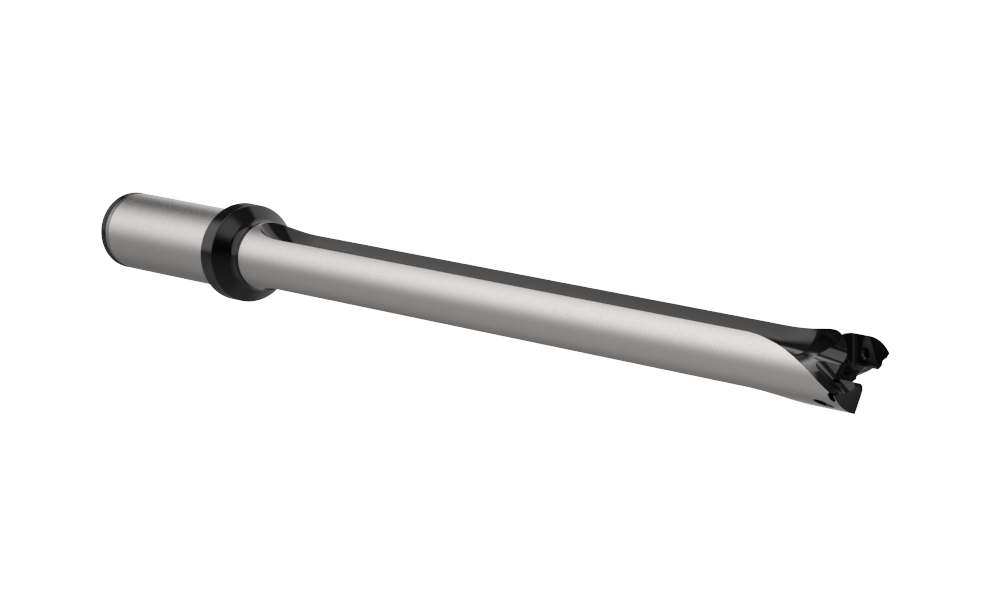

| Type of Product | Replaceable Drill Body |
| Product Application | High Performance |
