HXT1220S-100F
GEN3SYS® XT Pro Replaceable Drill Body: 0.7873" - 0.8659", 12xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

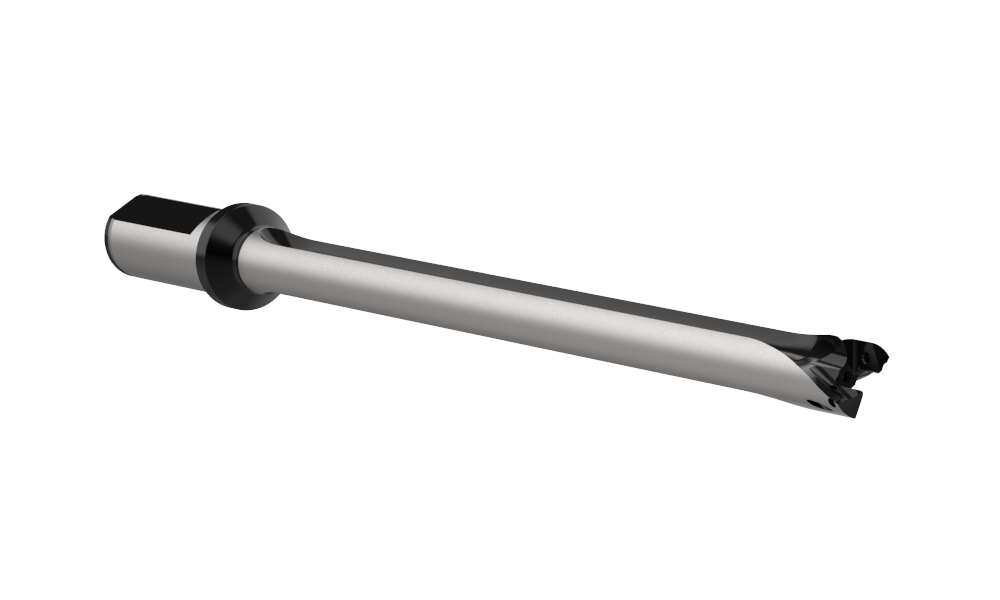

Angle

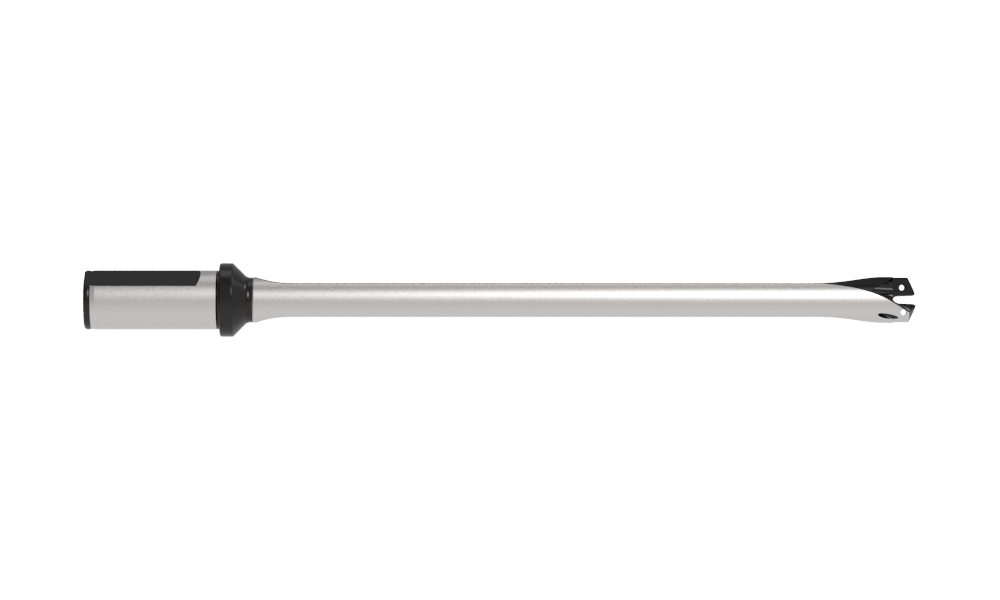

Front

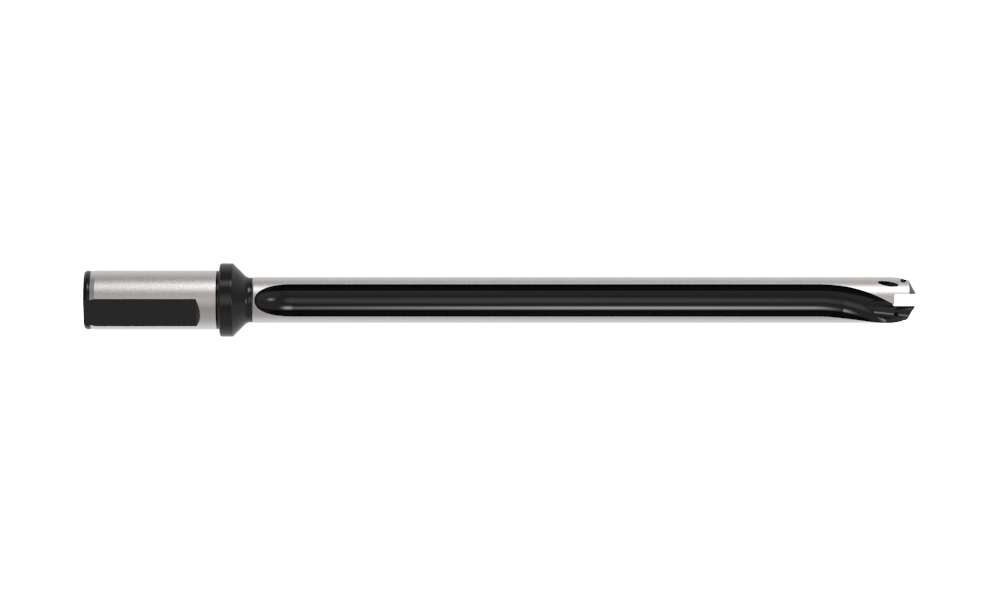

Top
Product Specifications
Series 20
Minimum diameter inch 0.7873
Maximum diameter inch 0.8659
Length Type 12xD
Flute Type Straight
Overall length inch 14.123
Tool Reference Length inch 11.843
Body length inch 11.733
Drill depth inch 10.389
Shank type Flanged
Shank diameter inch 1
Shank length inch 2.280
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.27
Weight in kg (each) 0.58
Category Stocked
