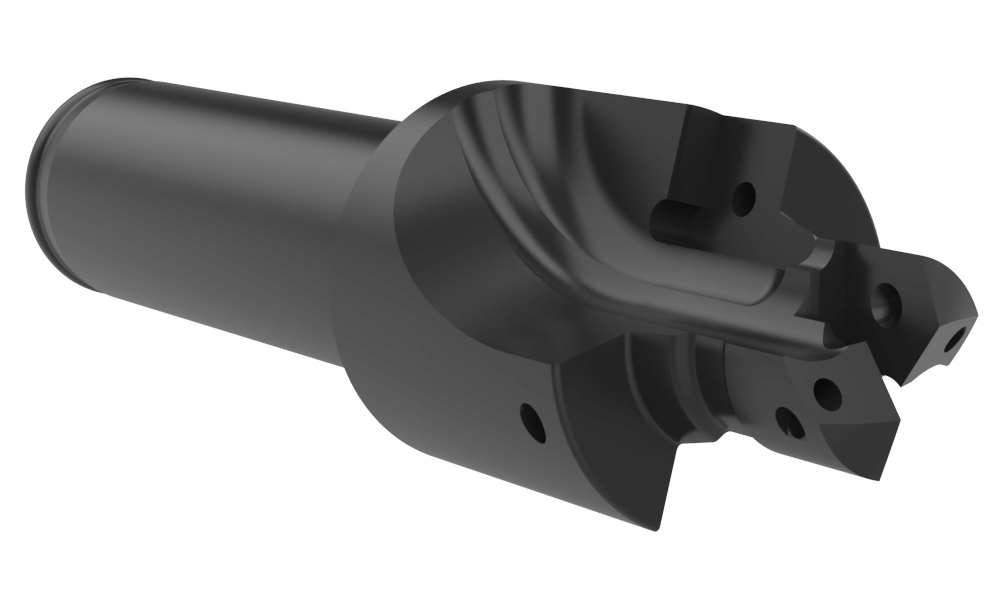

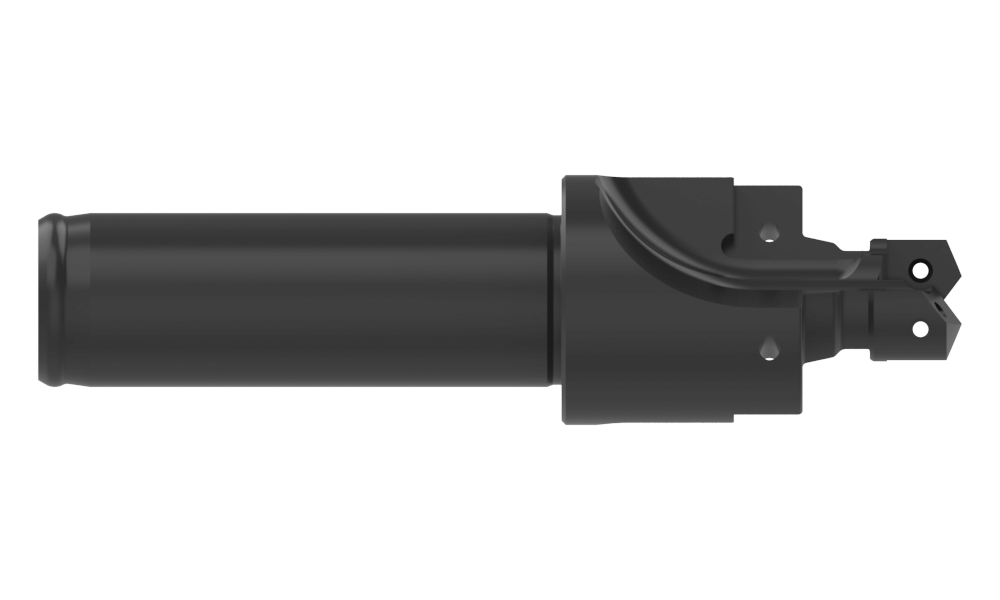

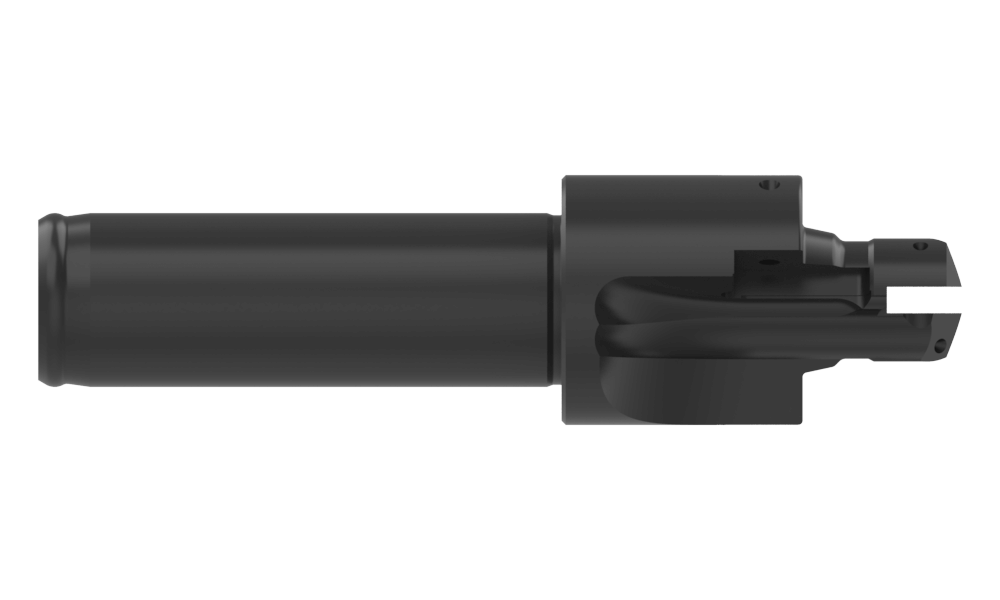

| Type of Product | Replaceable Port Form Body |
| Series | Z |
| Overall length inch | 3.402 |
| Overall length mm | 86.4 |
| Pipe tap rear inch | 1/16 |
| Shank diameter mm | 15.9 |
| Shank diameter inch | 0.625 |
| Shank length mm | 47.6 |
| Shank length inch | 1.875 |
| Shank type | Cylindrical |
| Pilot Diameter mm | 11.5 |
| Pilot Diameter inch | 0.453 |
| Pilot length mm | 14 |
| Pilot length inch | 0.551 |
| Tool Reference Length mm | 38.8 |
| Tool Reference Length inch | 1.527 |
| Port Standard | SAE J-1926 |
| Tube Size | -5 |
| Port thread size | 1/2-20 UNF-2B |
| Spotface diameter mm | 23.5 |
| Spotface diameter inch | 0.926 |
| Seal angle | 12° |
| Seal angle diameter mm | 14.1 |
| Seal angle diameter inch | 0.553 |
| Seal angle length mm | 2.7 |
| Seal angle length inch | 0.106 |
| Spotface to shoulder length inch | 0.885 |
| Spotface to shoulder length mm | 22.5 |
| Minor Diameter Insert Carbide | 4C1ZH-11.5 |
| Minor Diameter Insert Super Cobalt | 45ZH-11.5 |
