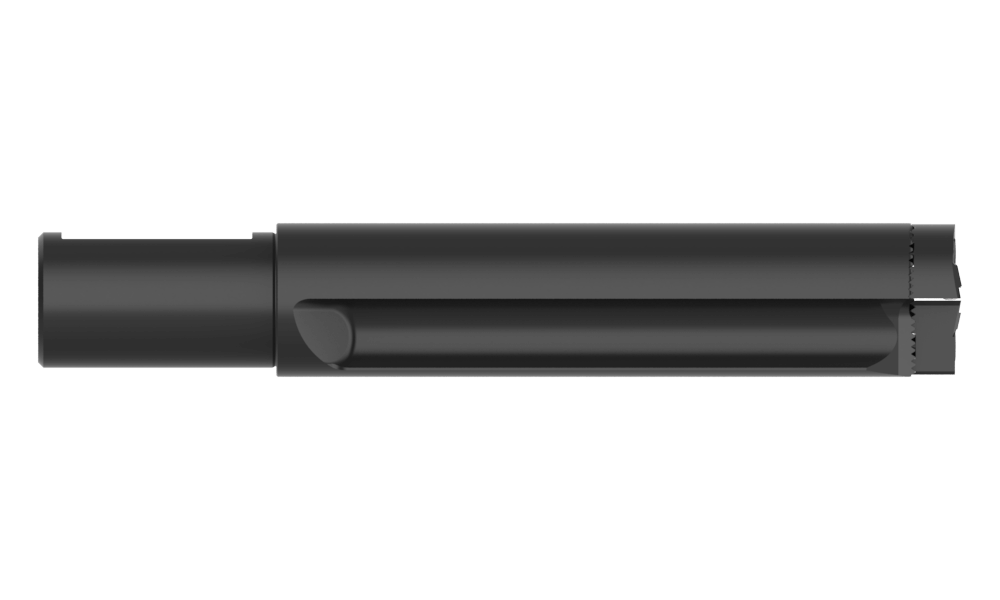

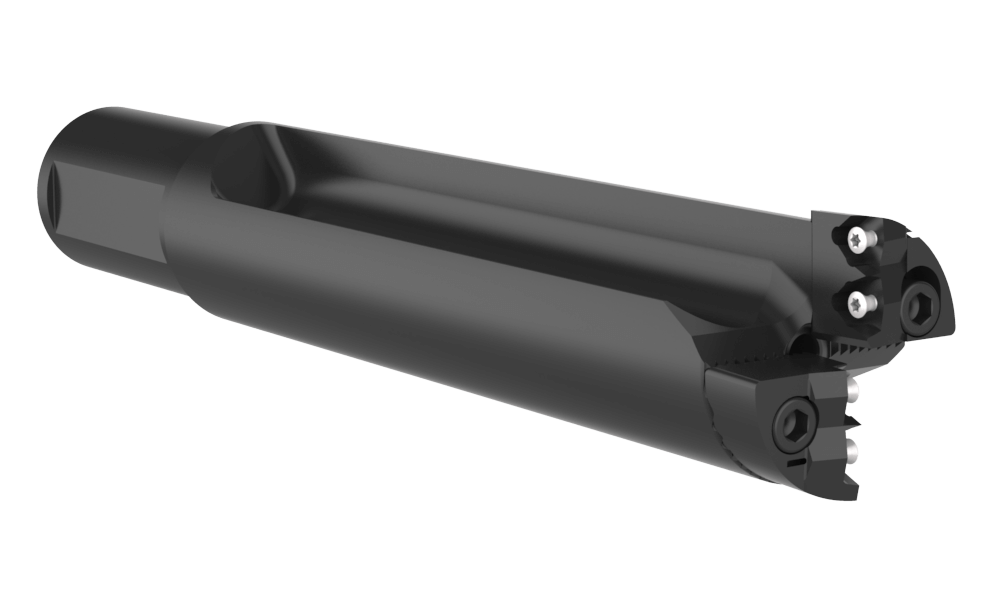

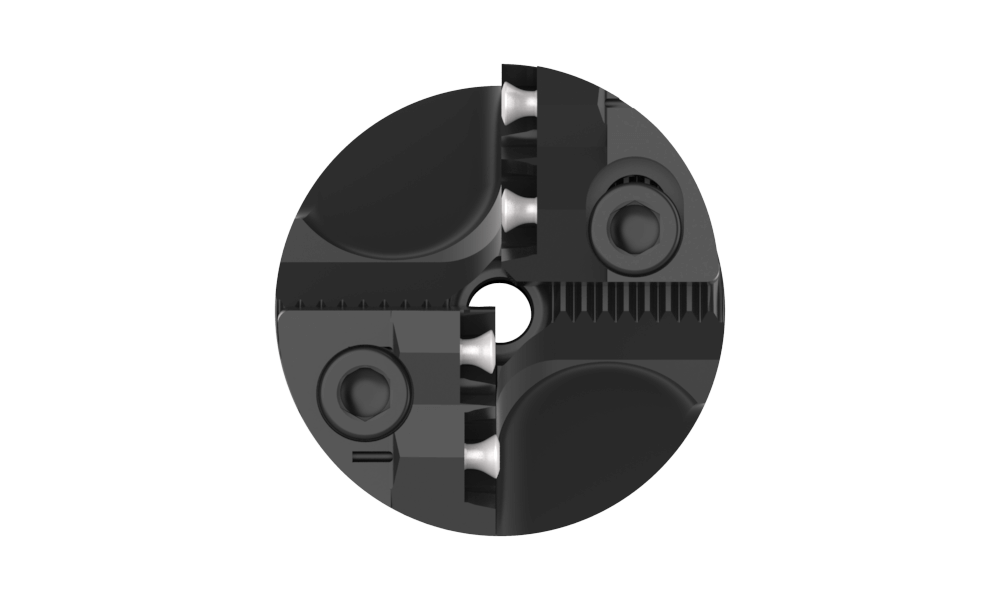

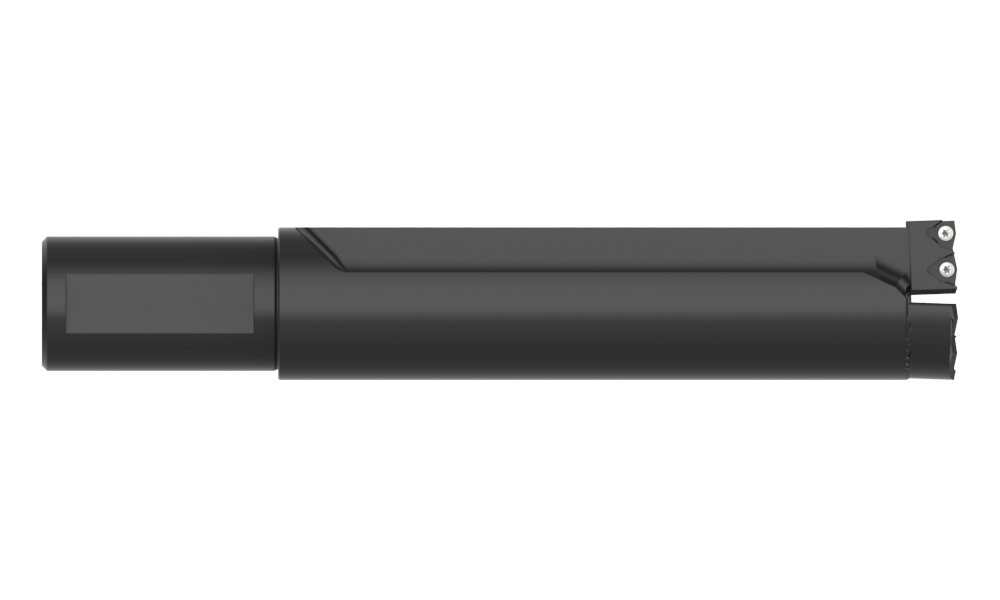

R34X35-40M
1.88-2.0 Rev. 3.5D 40mmSS
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR34
Minimum diameter mm47.6
Maximum diameter mm50.8
Drill depth mm178.4
Overall length mm270.9
Shank diameter mm40
Shank length mm70
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm200.9
Length Type3.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)5.14
CategoryStocked
