R34X35-CV40
Revolution Drill® Indexable Drill Body: 1.8750" - 2.0000", 3.5xD, CAT40 Shank
Revolution Drill® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

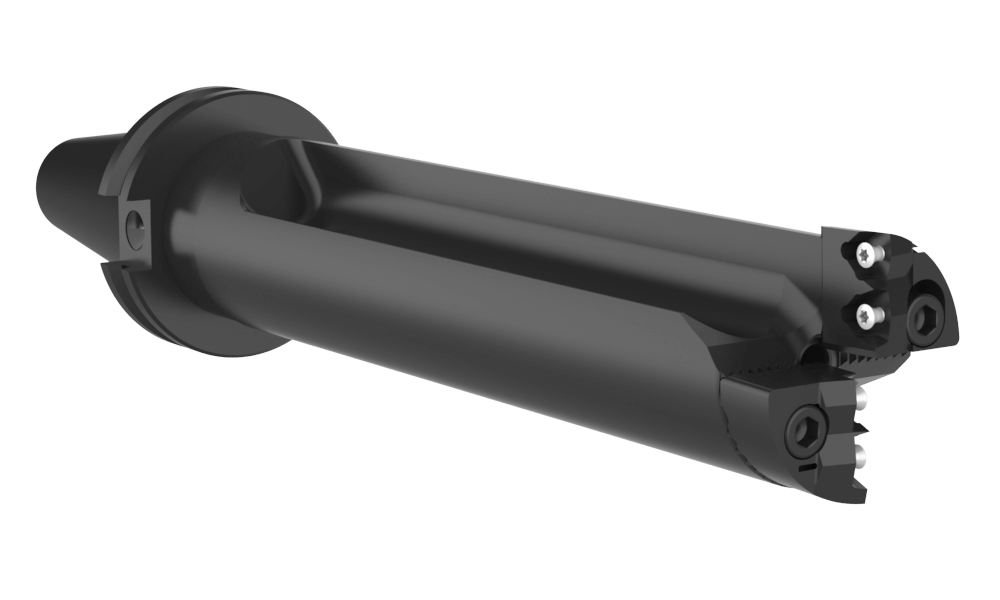

Angle

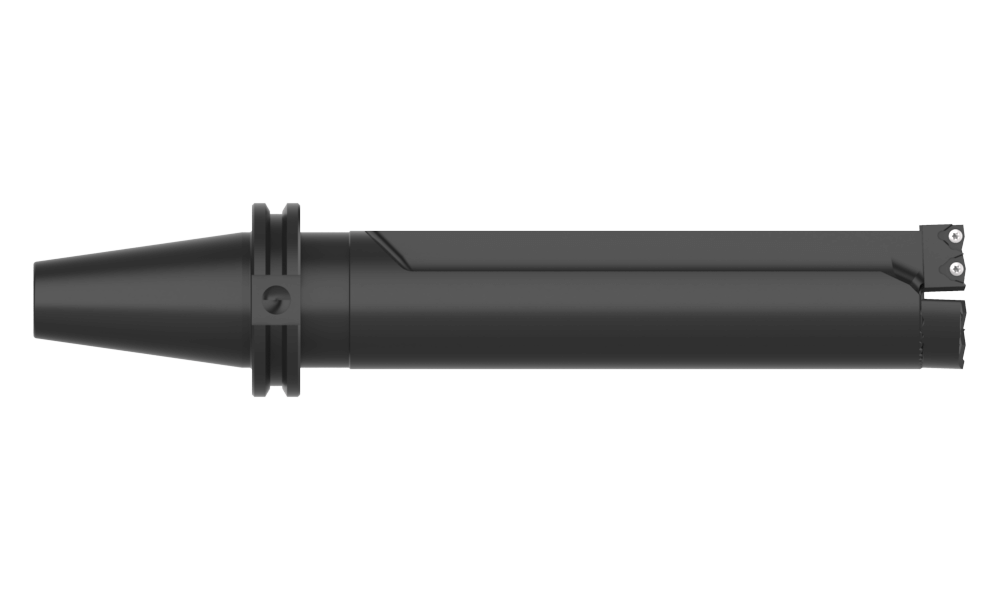

Front

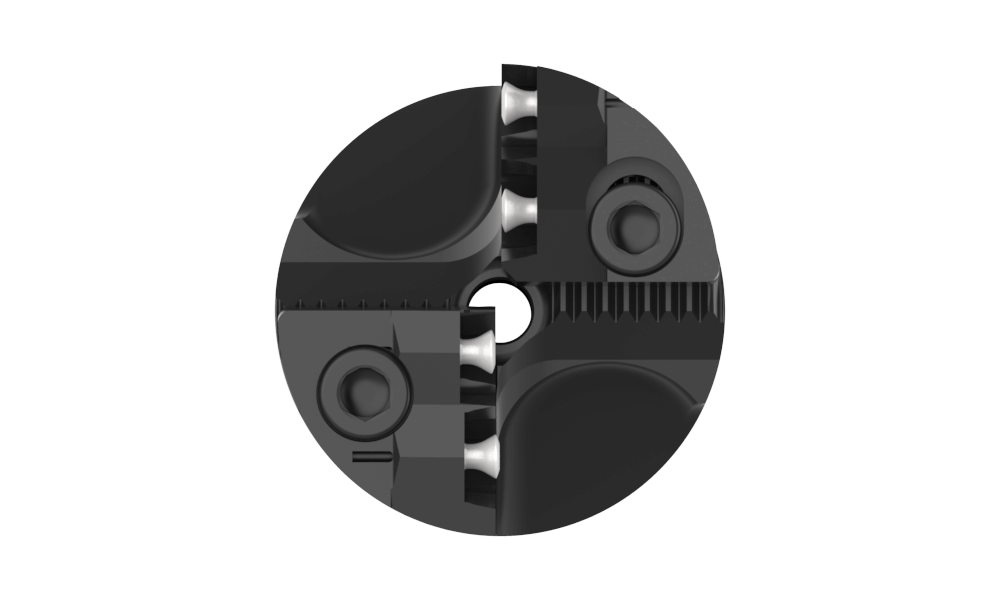

Head

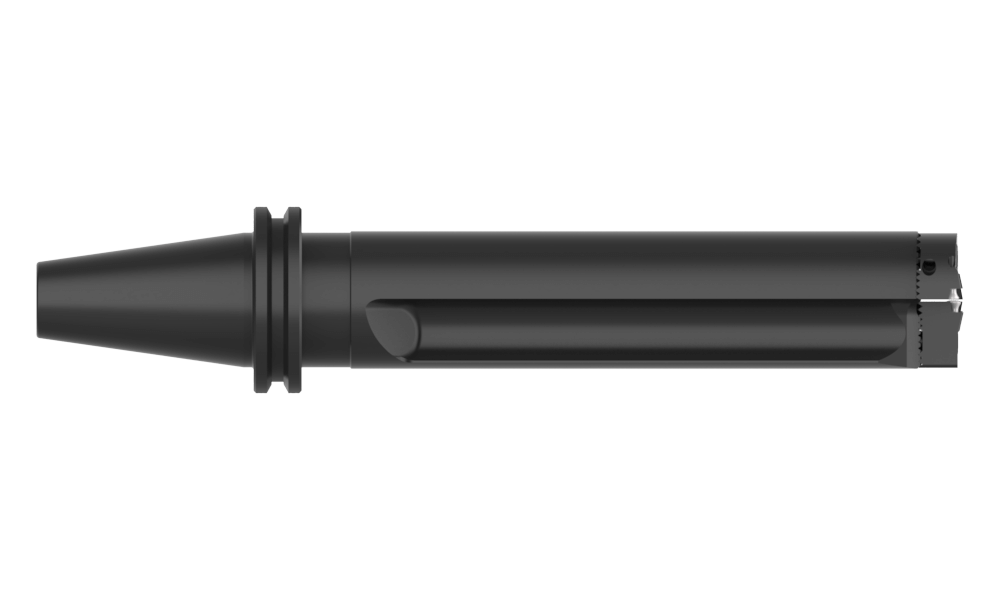

Top
Product Specifications
Series 34
Style Standard
Quantity of Inserts 4
Minimum diameter inch 1.8750
Maximum diameter inch 2.0000
Body Diameter inch 1.785
Length Type 3.5xD
Flute Type Straight
Gage length inch 9.356
Drill depth inch 7.025
Shank type CAT40
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Related Items
ImageNotAvailable.png 5mm Hex Key (Qty0)
Mounting Screw Driver
\Accessories\Torx Drivers\TORX-DRIVER.png 8T-9 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
Accessories\Adjusting Screw\Adjusting Screw_ANGLE.png AS-16T9-1 (Qty0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
Accessories\Insert Screw\Insert Screw_Angle.png IS-10-1 (Qty0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
Accessories\Mounting Screw\Mounting Screw_ANGLE.png MS-17M-1 (Qty0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW PACK
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 6.08
Weight in kg (each) 2.76
Category Stocked
