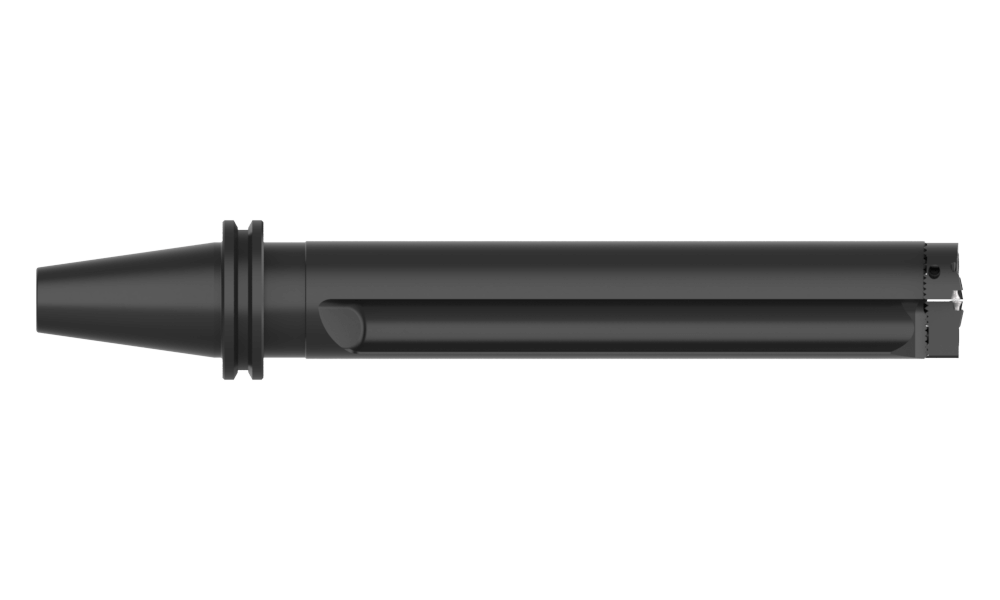

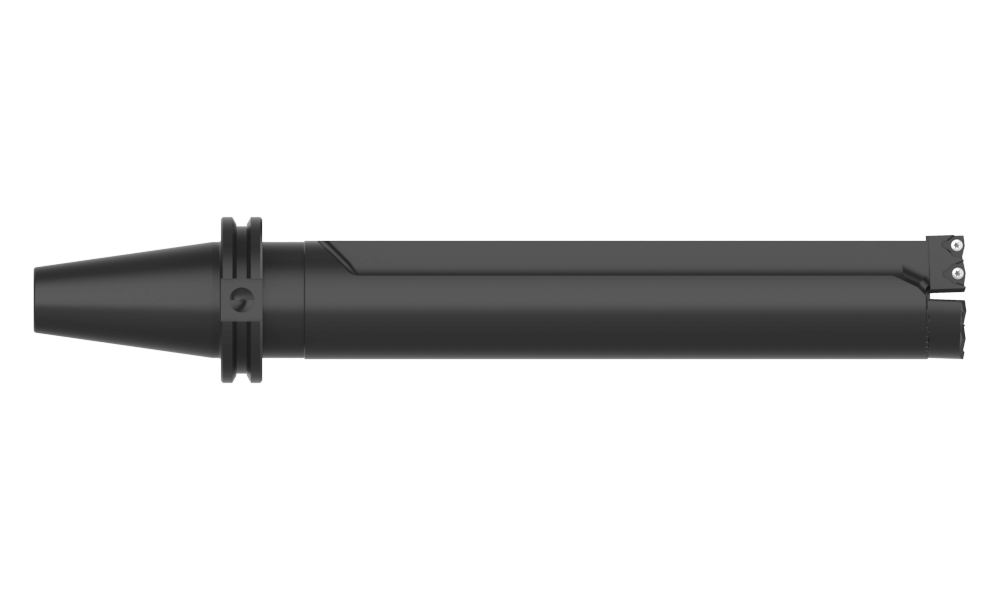

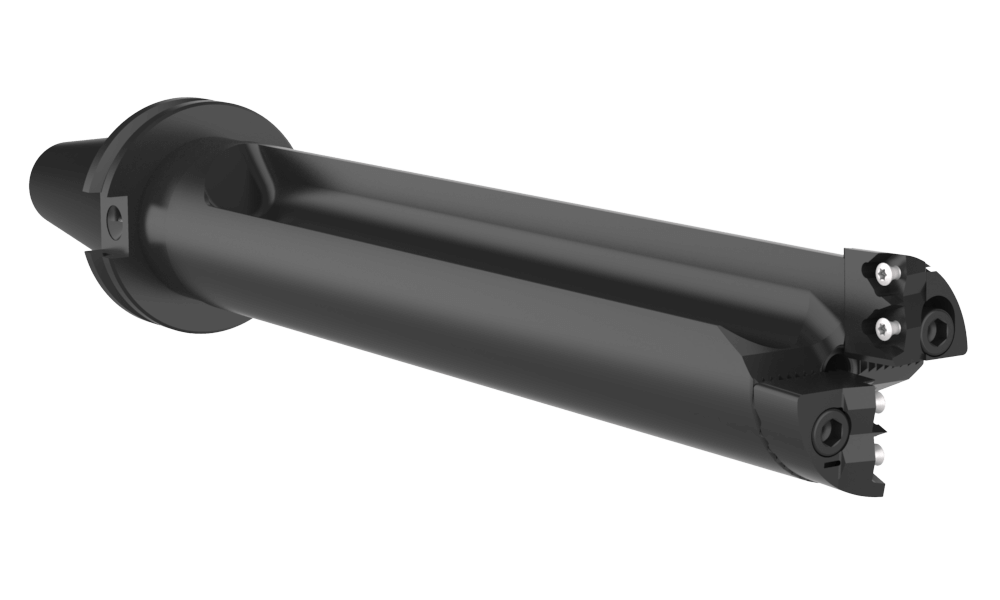

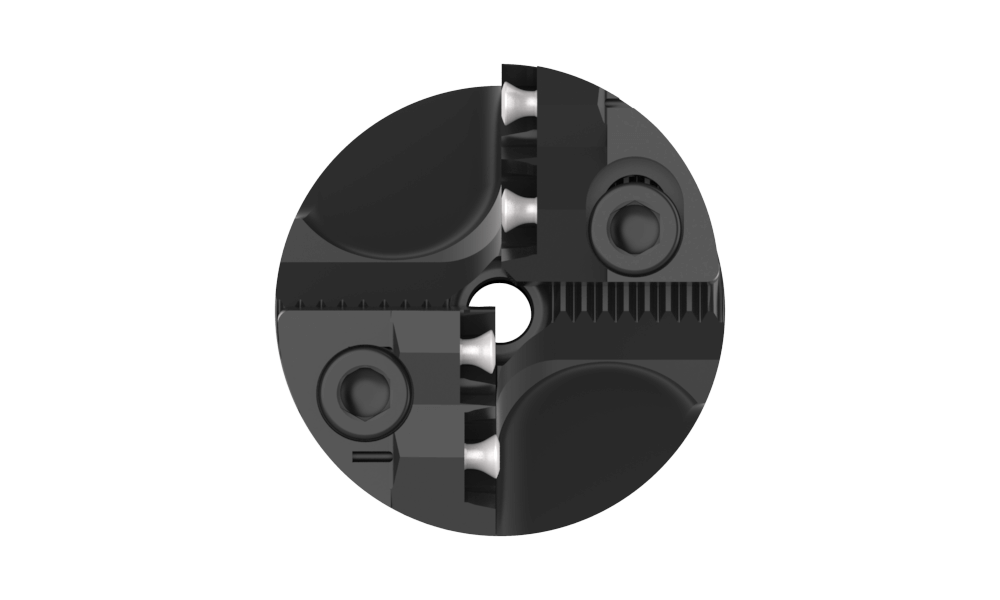

R34X45-CV40
1.88-2.0 Rev. 4.5D CV40
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR34
Minimum diameter inch1.875
Maximum diameter inch2.00
Drill depth inch9-1/32
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeCV 40
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch11-9/32
Length Type4.5 X D


Related Items
5mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-16T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-17M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW PACK
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)7.06
CategoryStocked
