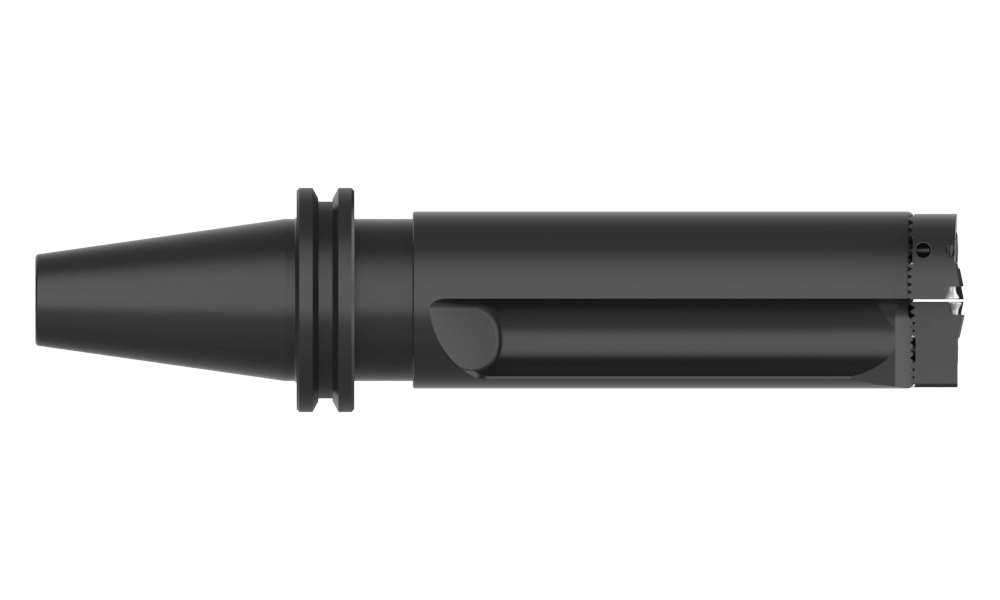

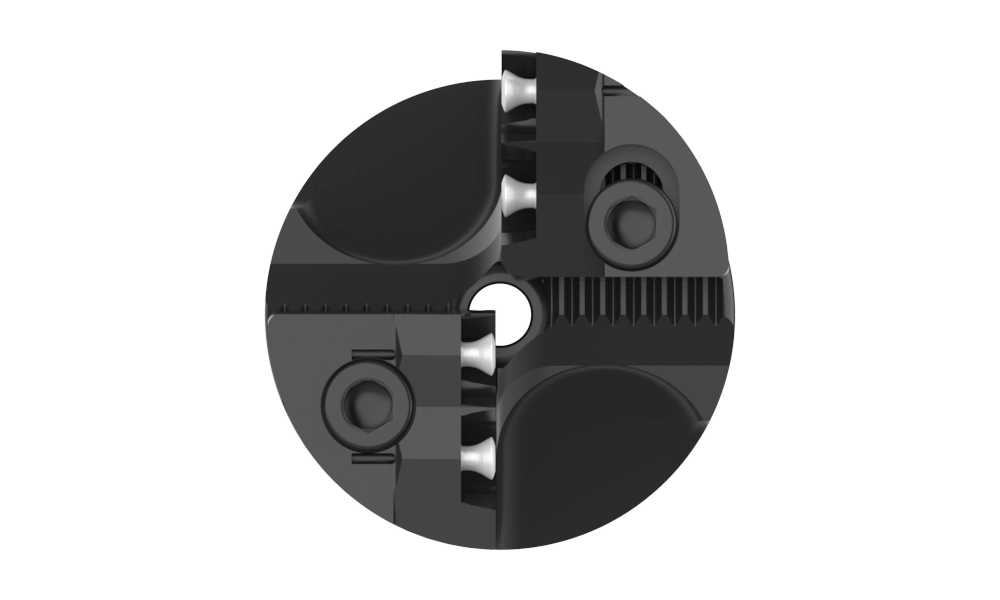

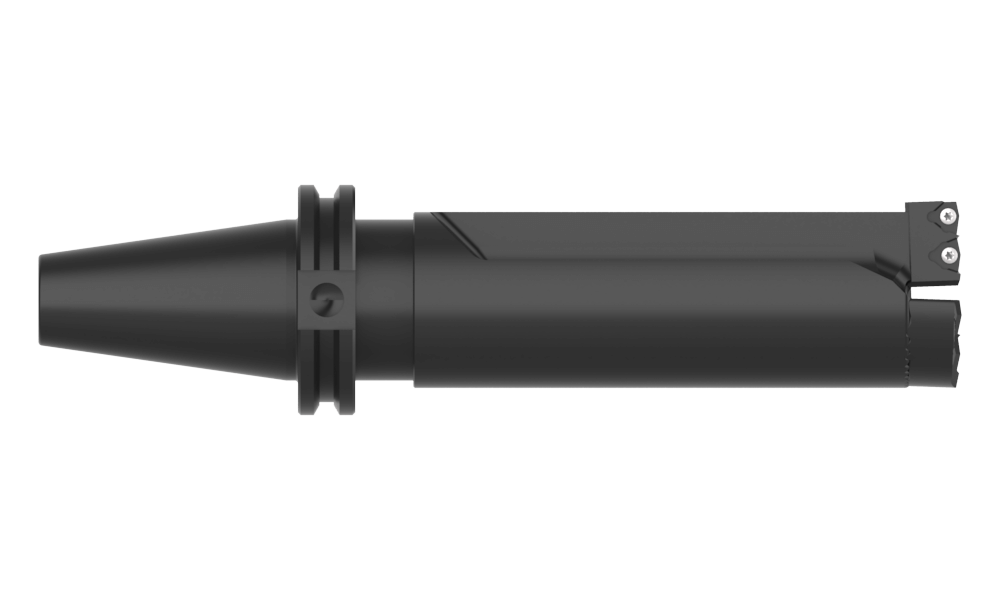

R36X22-CV40

2.0-2.2 Revolution 2.2D CV40

Revolution Drill® Holder

See Additional Technical Information

Revolution Drill®

Product Specifications

Type of Product	Indexable Drill Body
Series	R36
Minimum diameter inch	2.00
Maximum diameter inch	2.20
Drill depth inch	4-61/64
Quantity of Inserts	4
Insert prefix	OP-05T308-
Shank type	CV 40
Coolant	Yes
Coolant Inlet Style Rear	Through the Shank
Flute Type	Straight
Gage length inch	7-17/64
Length Type	2.2 X D

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	5.47
Category	Stocked
