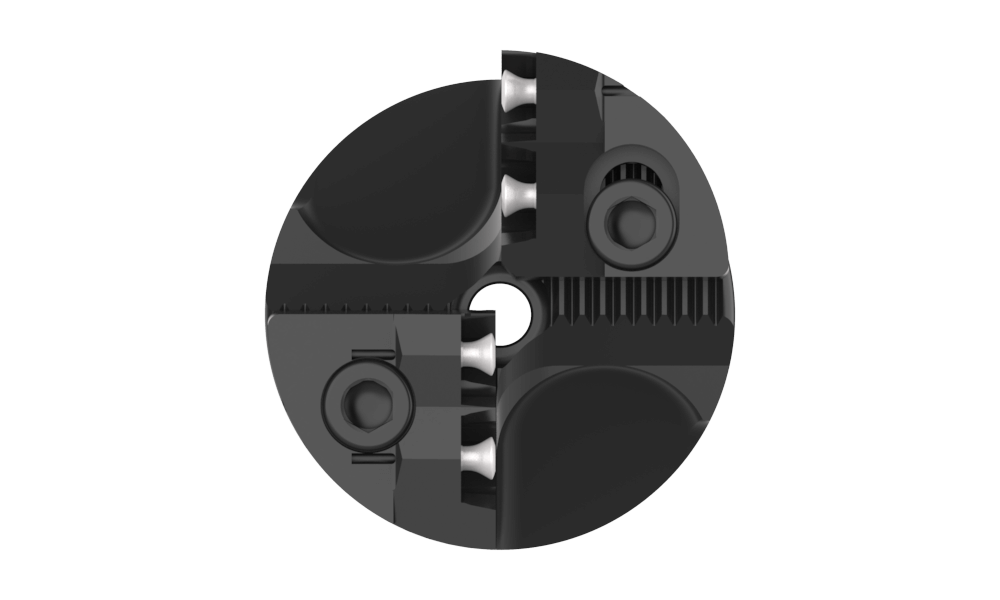

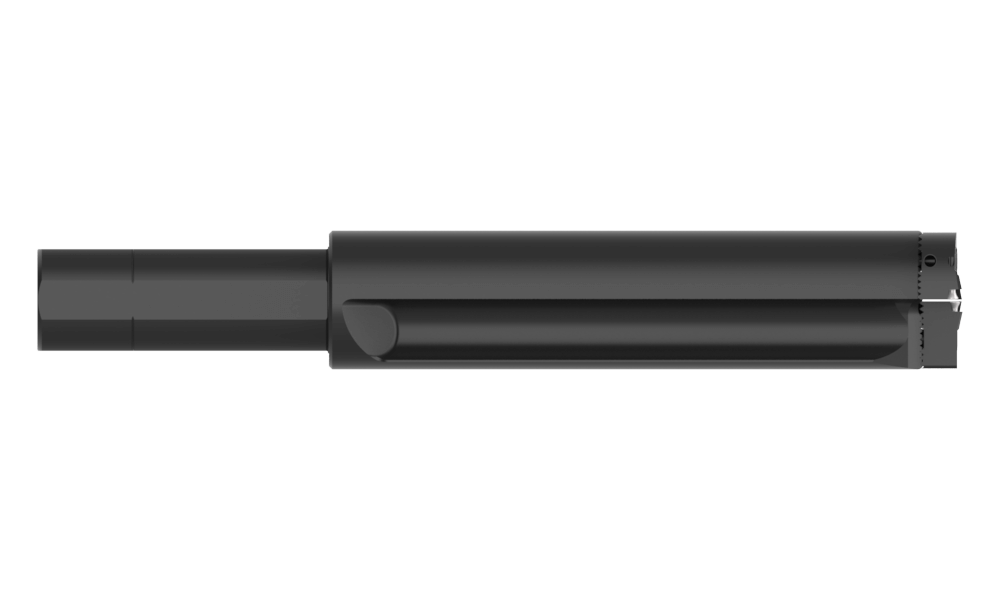

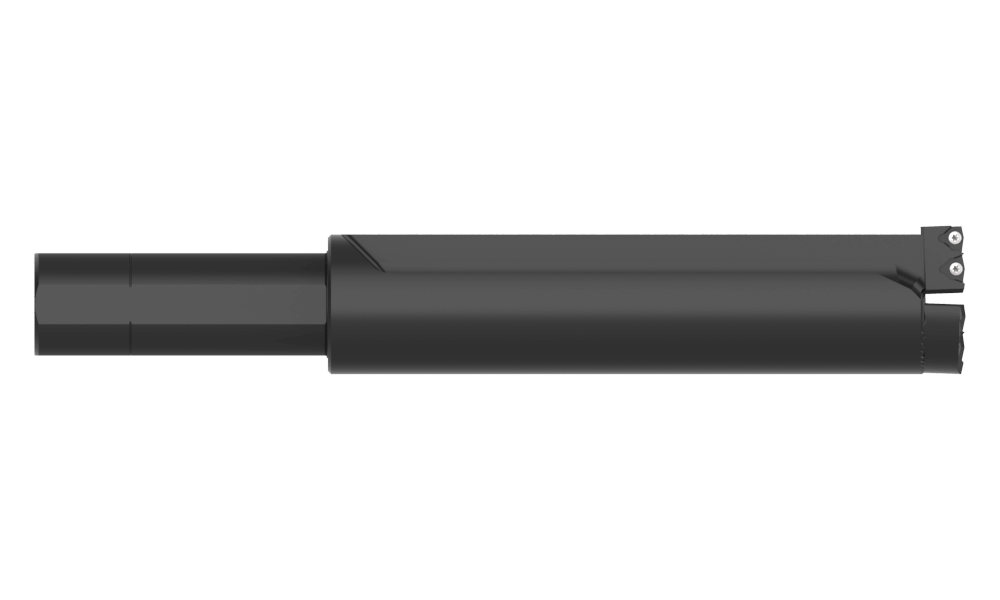

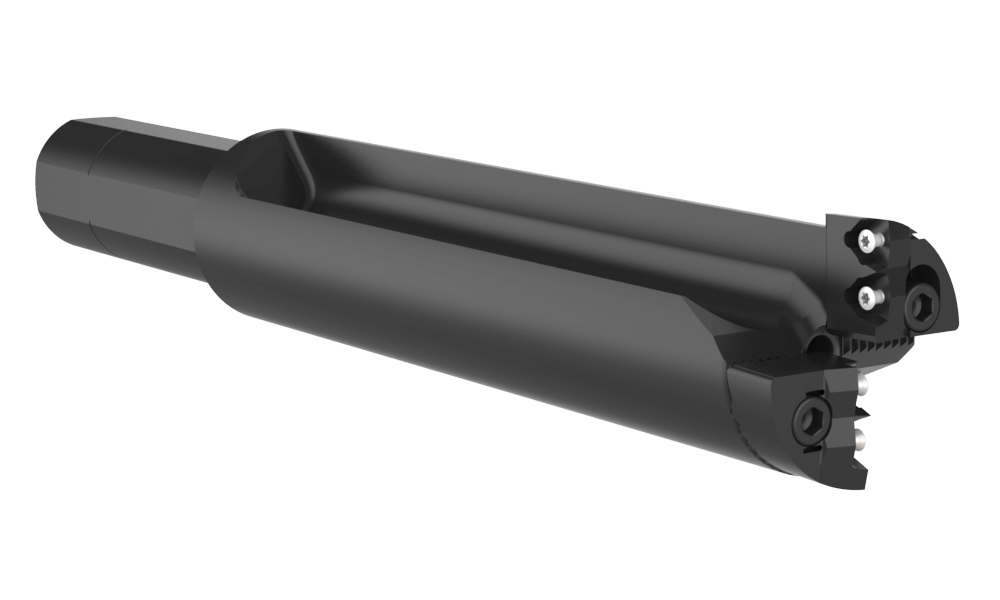

R36X35-150L
2.0-2.2 revolution 3.5d 1.50ss
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR36
Minimum diameter inch2.00
Maximum diameter inch2.20
Drill depth inch7-45/64
Overall length inch12-41/64
Shank diameter inch1-1/2
Shank length inch4
Pipe tap rear inch1/4 NPT
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length inch8-41/64
Length Type3.5 X D


Related Items
5mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-17M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW PACK
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)6.46
CategoryStocked
