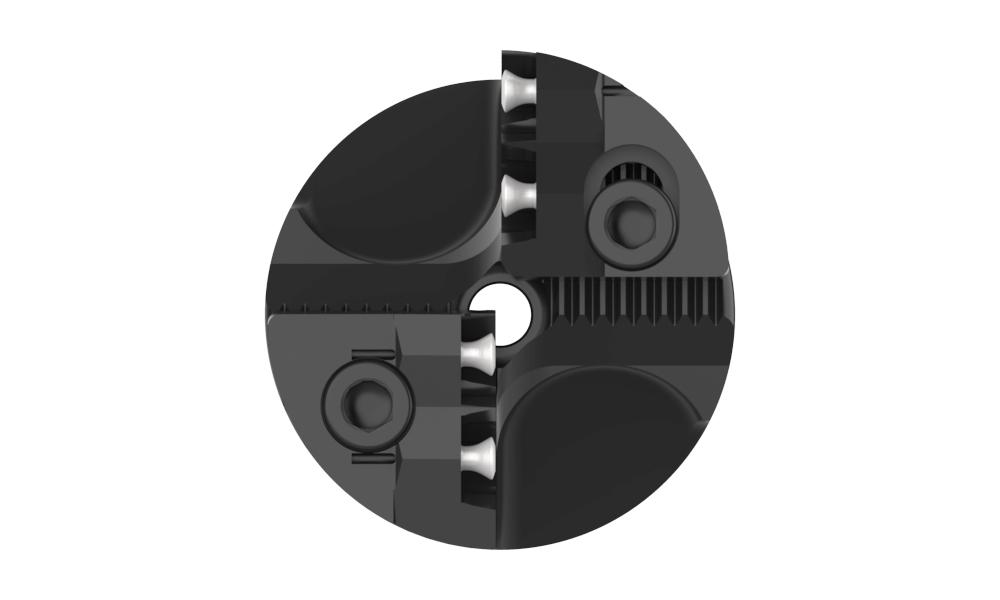

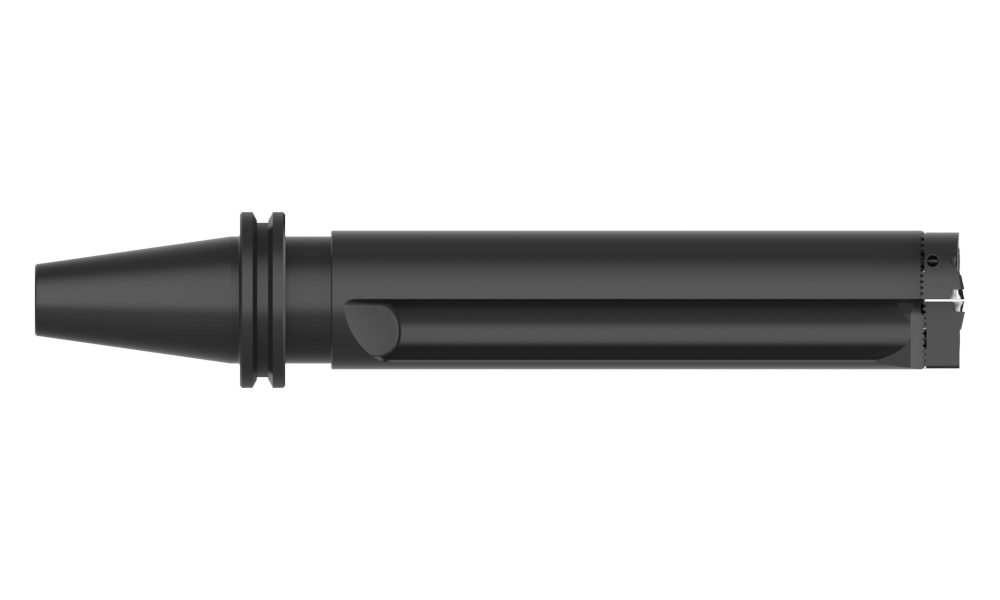

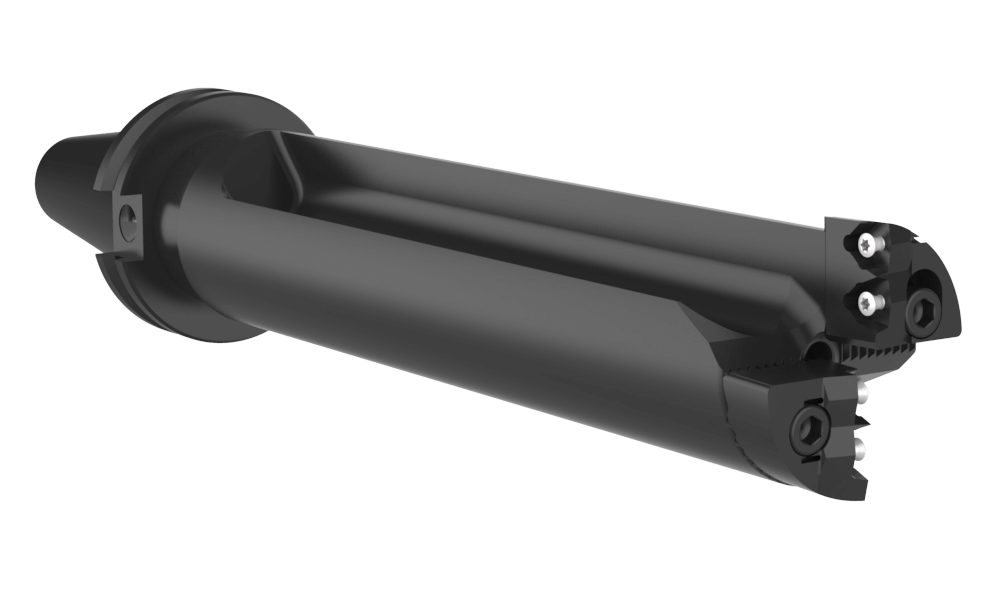

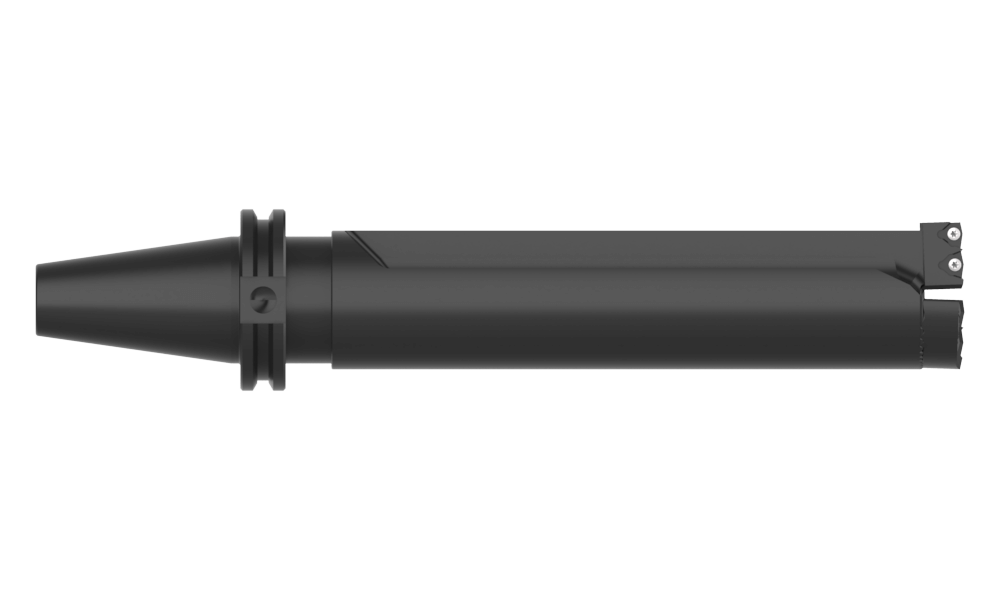

R36X35-CV40
2.0-2.2 Revolution 3.5D CV40
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR36
Minimum diameter inch2.00
Maximum diameter inch2.20
Drill depth inch7-45/64
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeCV 40
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch10-1/64
Length Type3.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)6.99
CategoryStocked
