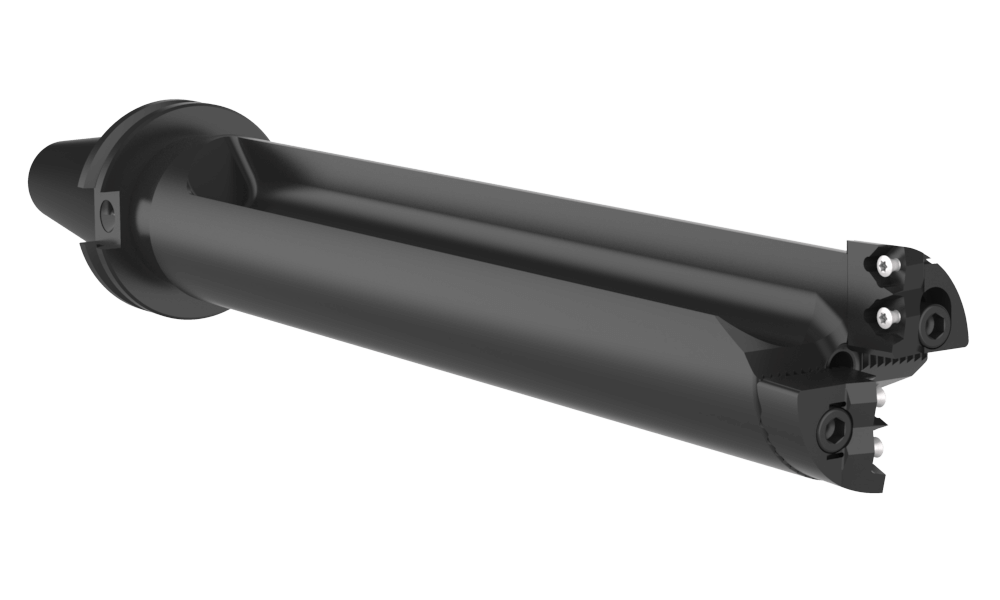

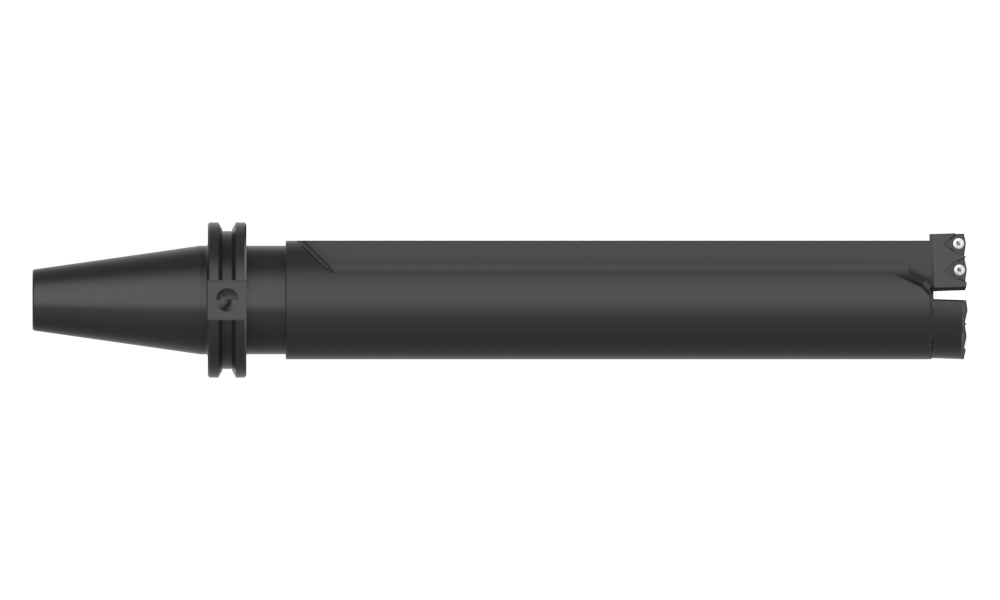

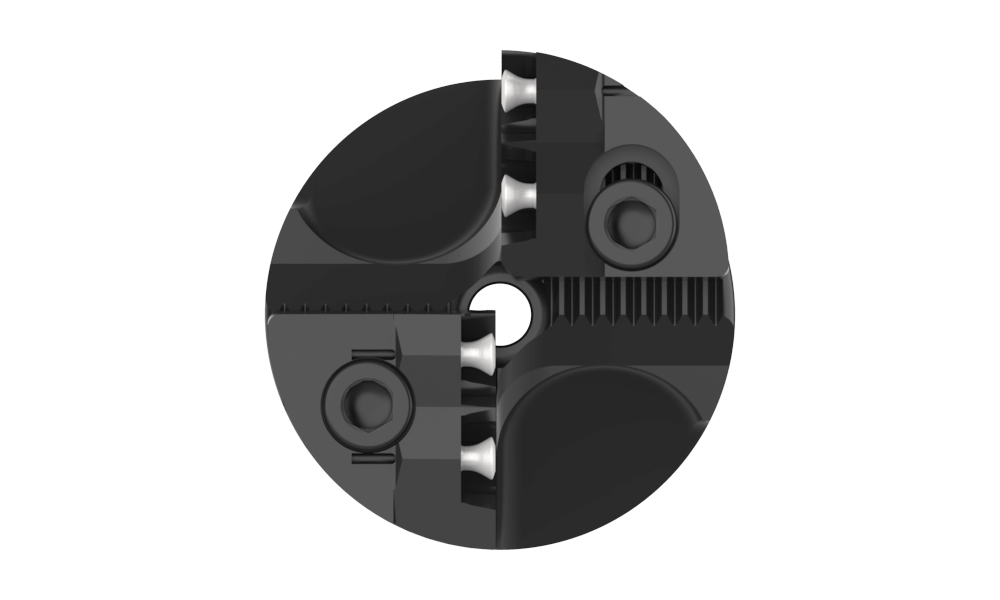

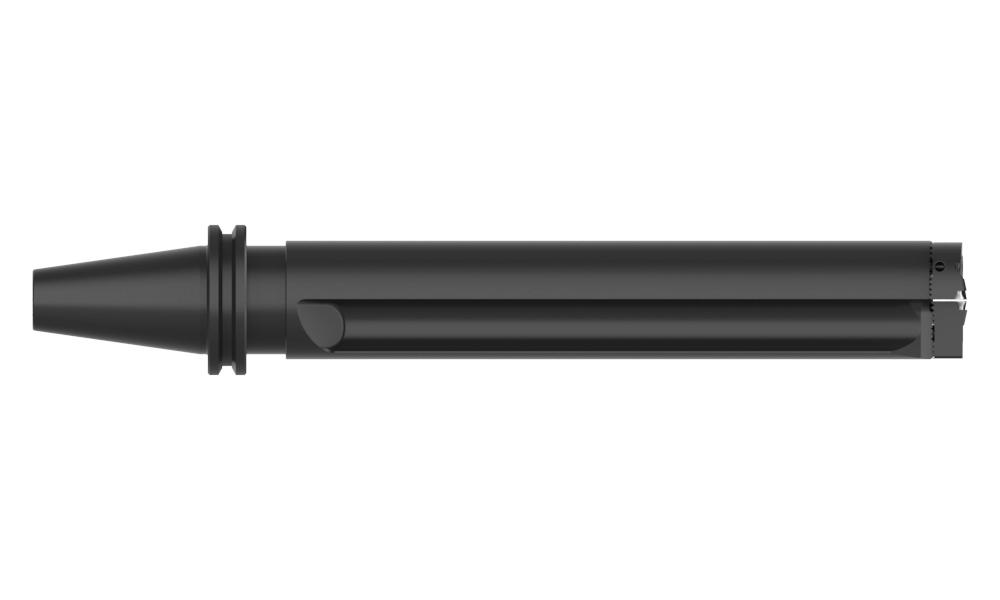

R36X45-CV40
2.0-2.2 Revolution 4.5D CV40
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR36
Minimum diameter inch2.00
Maximum diameter inch2.20
Drill depth inch9-61/64
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeCV 40
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch12-17/64
Length Type4.5 X D


Related Items
5mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-17M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW PACK
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)8.23
CategoryStocked
