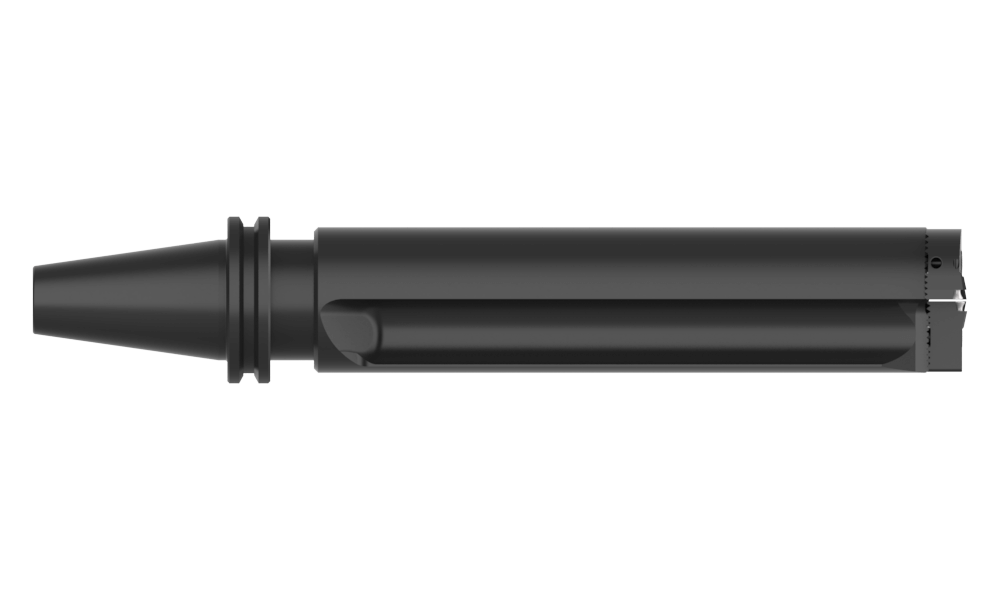

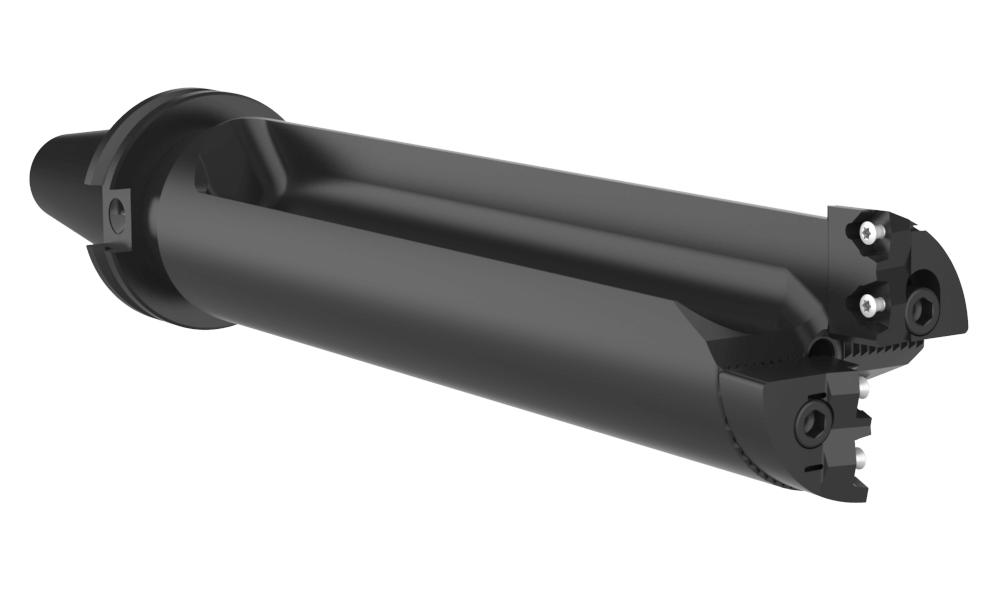

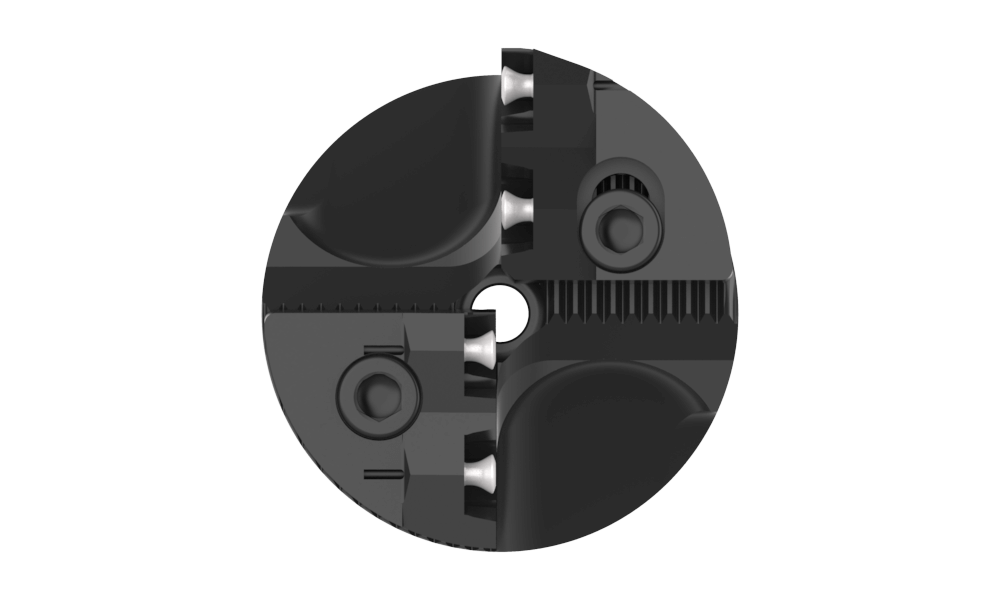

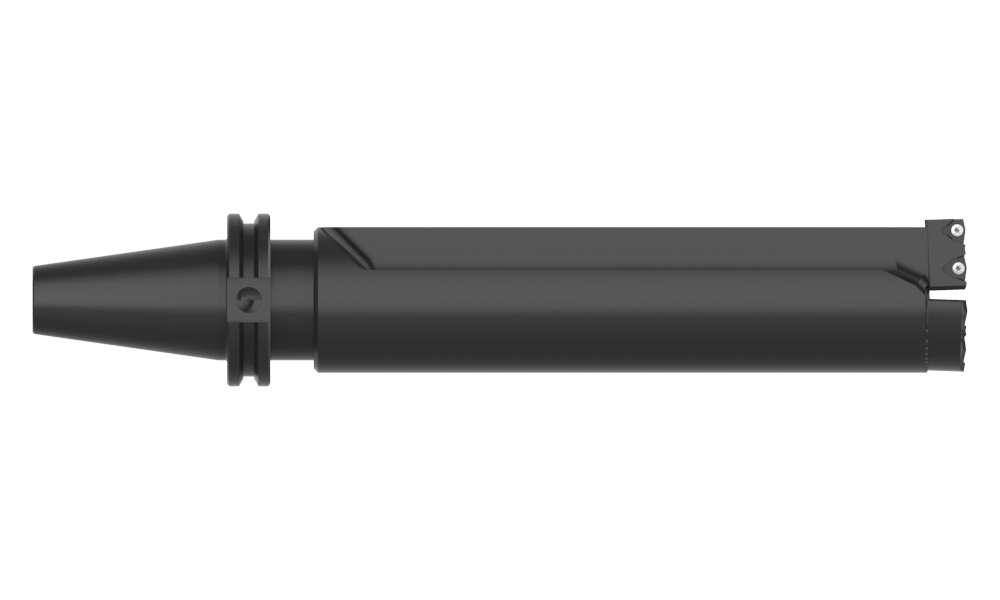

R38X35-CV40
2.2-2.4 Revolution 3.5D CV40
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR38
Minimum diameter inch2.20
Maximum diameter inch2.40
Drill depth inch8-29/64
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeCV 40
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch10-49/64
Length Type3.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)8.39
CategoryStocked
