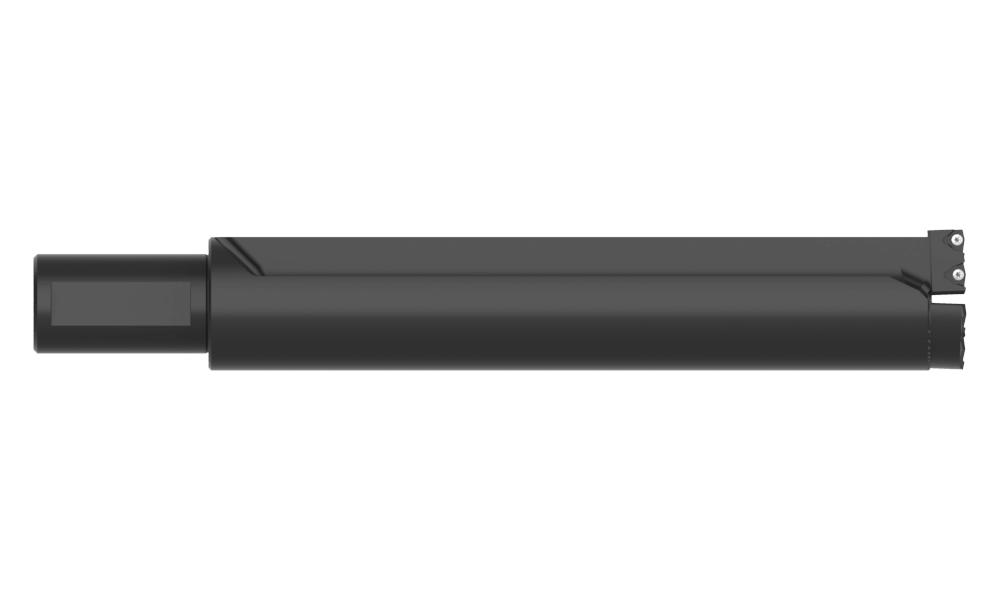

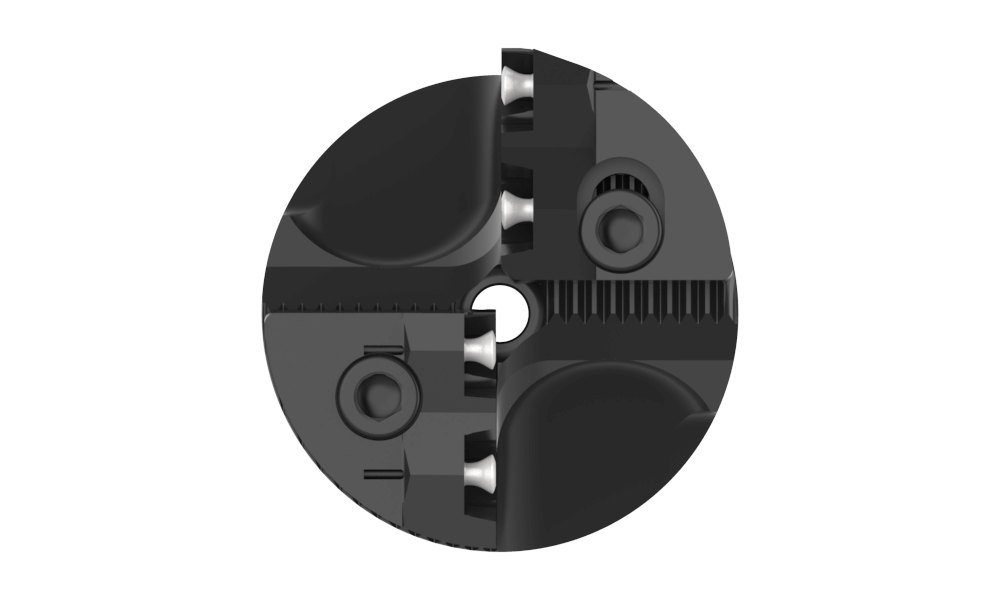

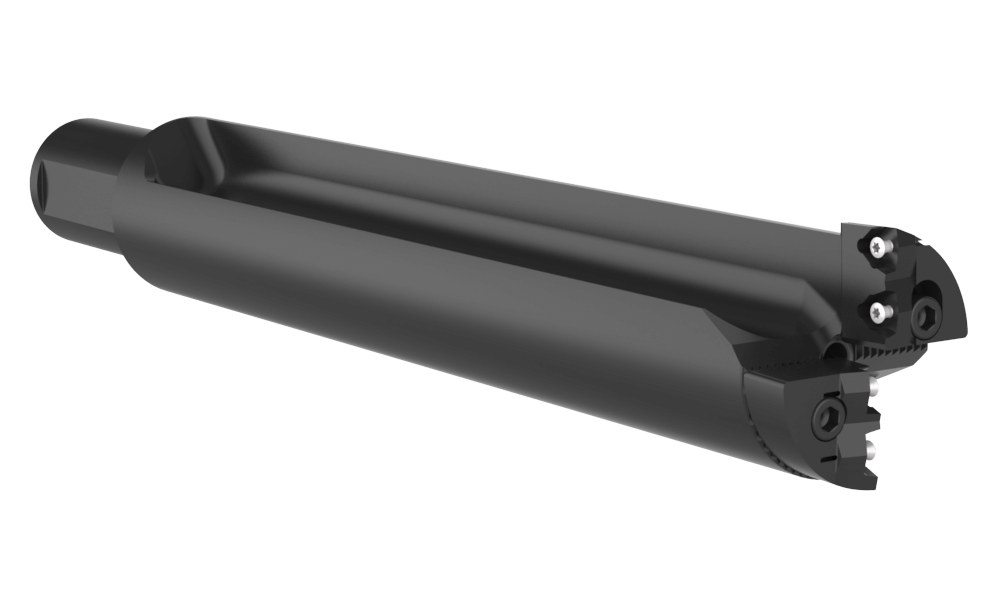

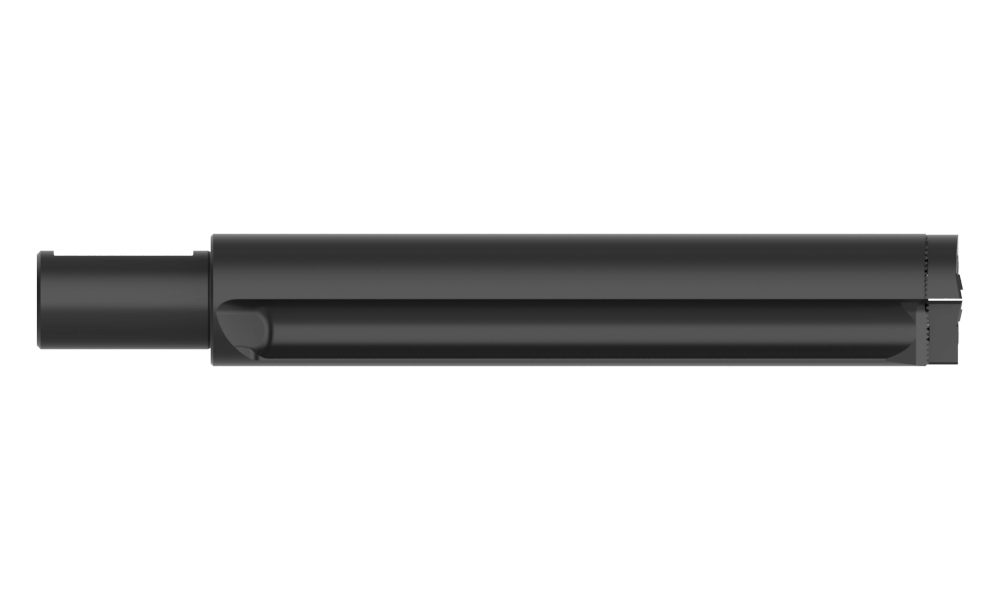

R38X45-40M
2.2-2.4 Revolution 4.5D 40mmSS
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR38
Minimum diameter mm55.9
Maximum diameter mm61
Drill depth mm278.4
Overall length mm371.9
Shank diameter mm40
Shank length mm70
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm301.9
Length Type4.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)9.1
CategoryStocked
