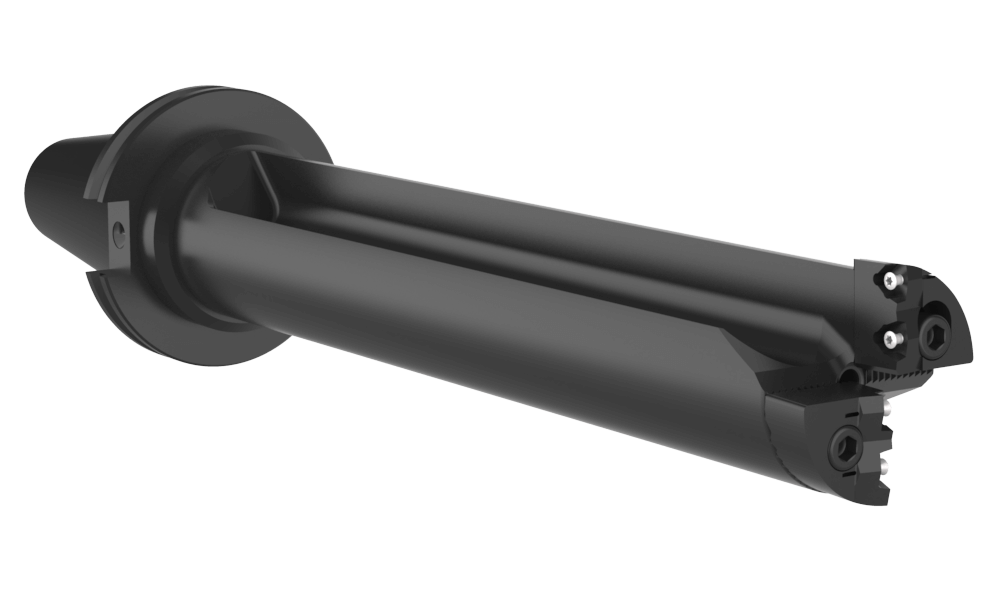

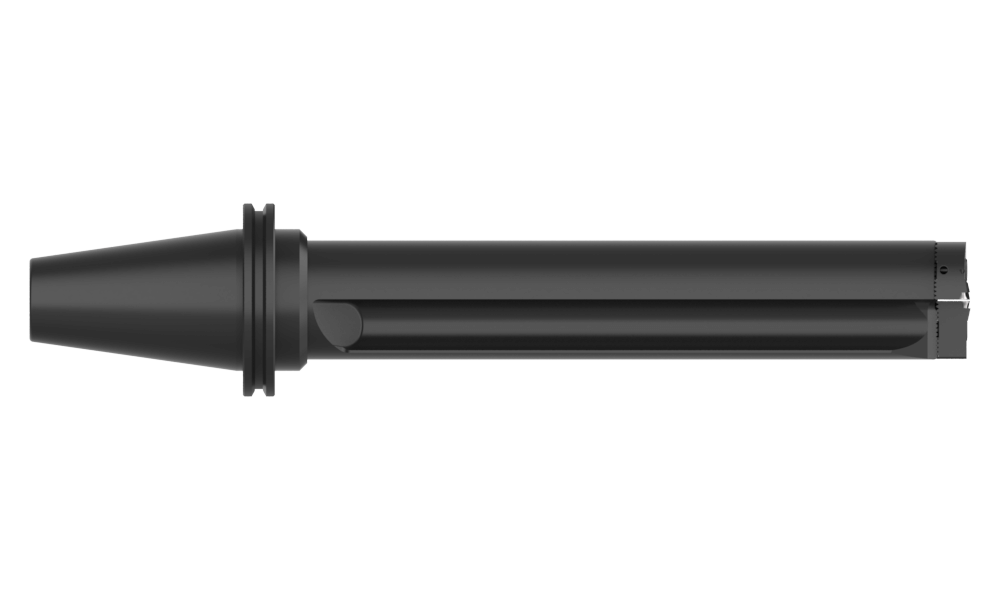

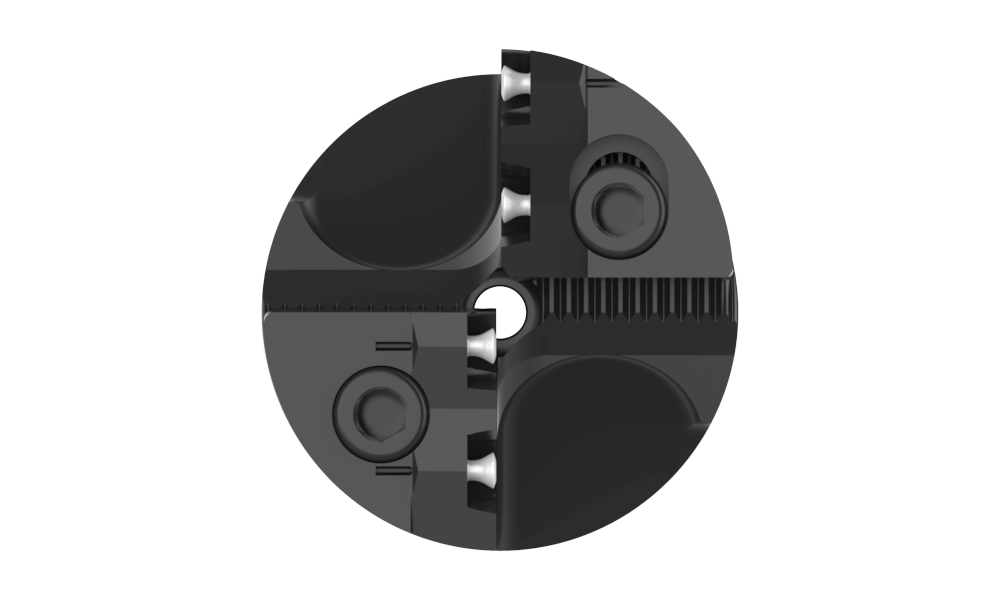

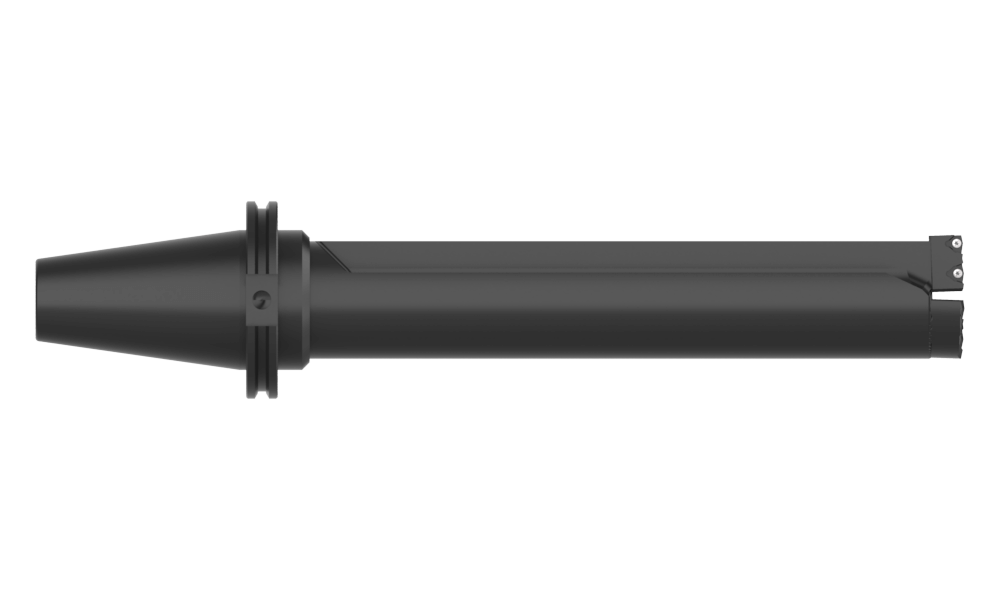

R42X45-CV50

2.4-2.6 Revolution 4.5D CV50

Revolution Drill® Holder

See Additional Technical Information

Revolution Drill®

Product Specifications

Type of Product	Indexable Drill Body
Series	R42
Minimum diameter inch	2.40
Maximum diameter inch	2.60
Drill depth inch	11-45/64
Quantity of Inserts	4
Insert prefix	OP-05T308-
Shank type	CV 50
Coolant	Yes
Coolant Inlet Style Rear	Through the Shank
Flute Type	Straight
Gage length inch	14-9/64
Length Type	4.5 X D

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	17.1
Category	Stocked
