R44X22-150L
2.6-2.8 Revolution 2.2D 1.50SS

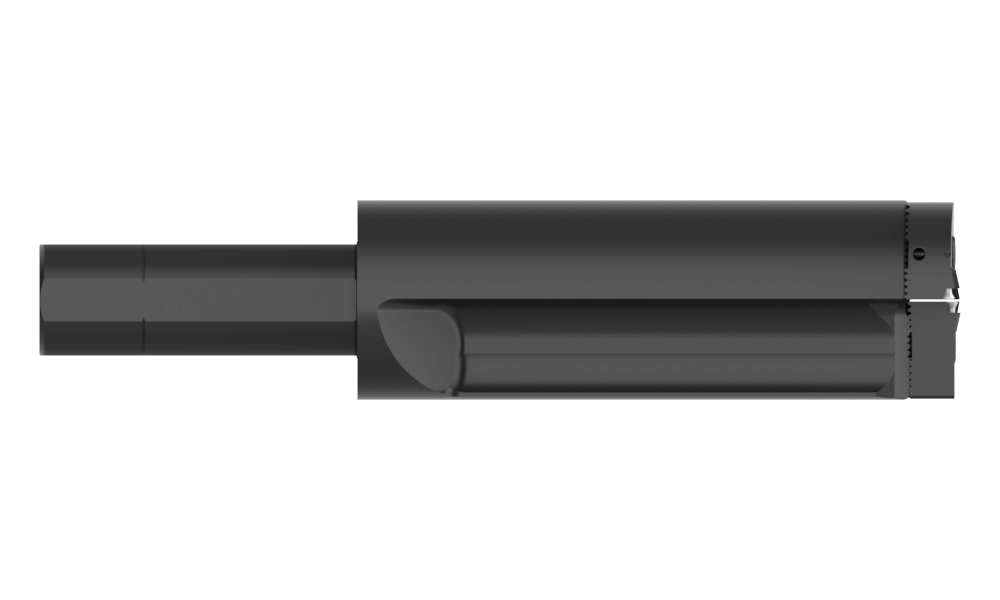

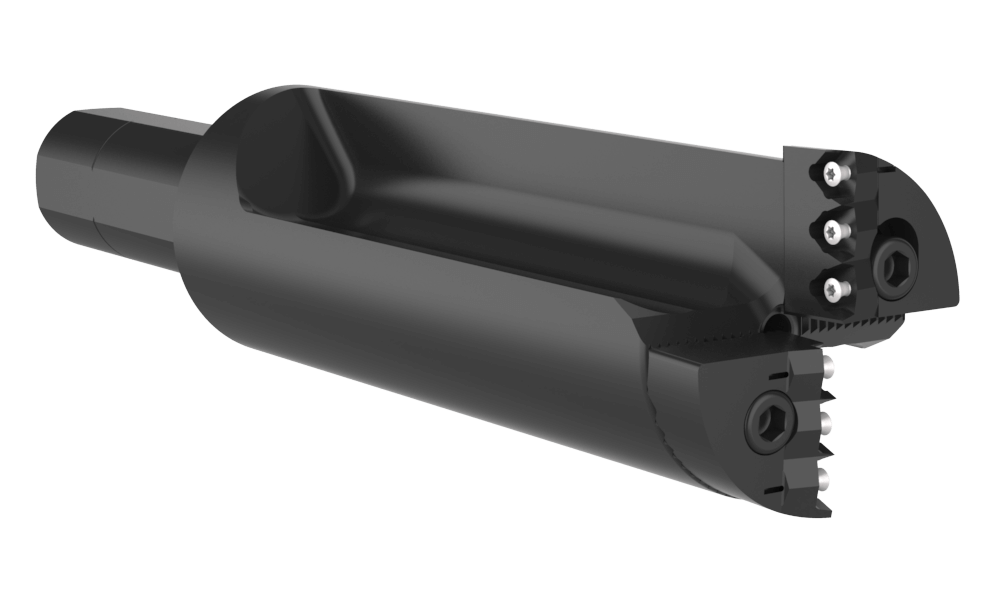

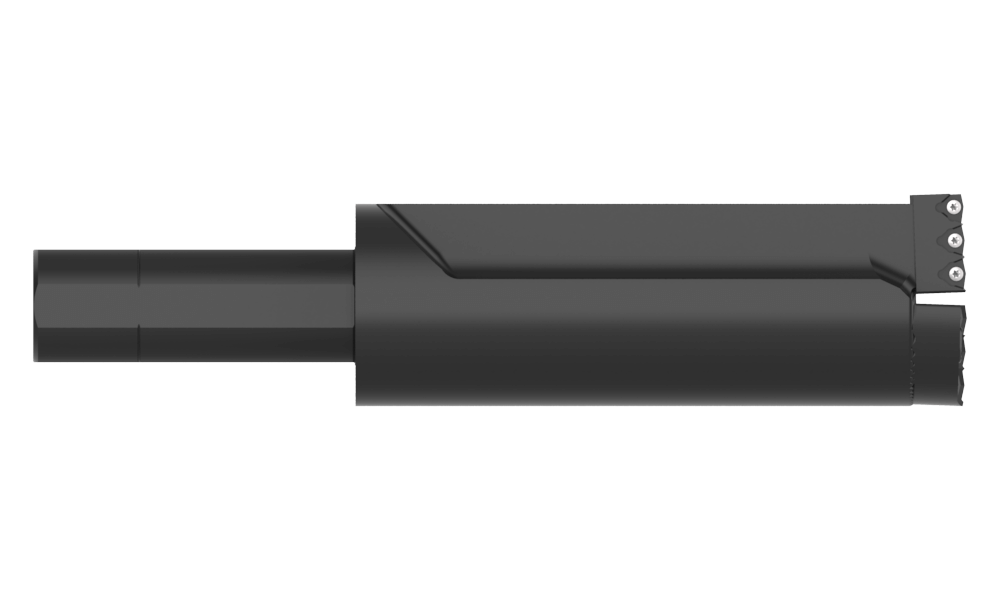

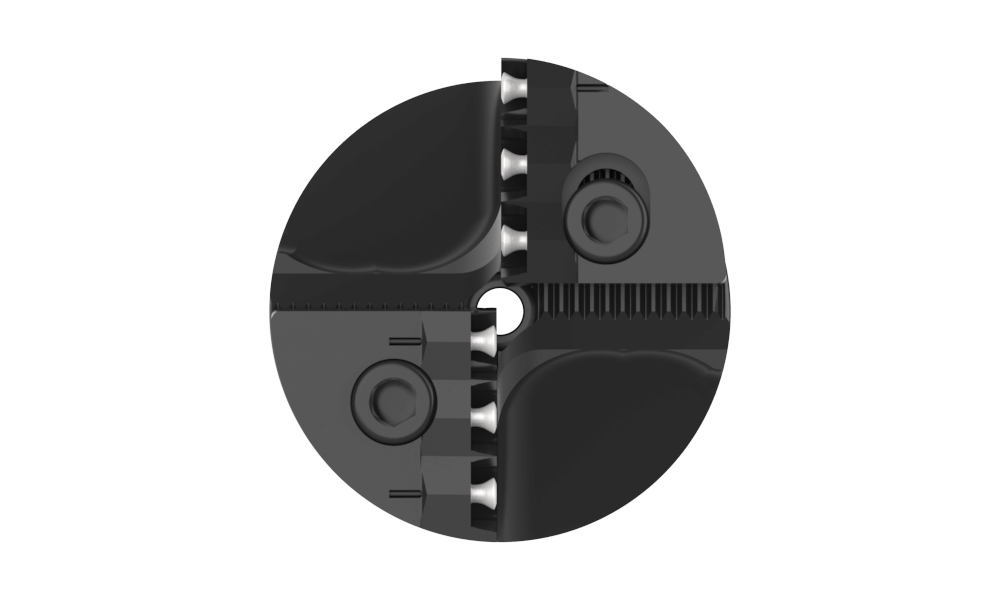

Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR44
Minimum diameter inch2.60
Maximum diameter inch2.80
Drill depth inch6-13/64
Overall length inch11-1/2
Shank diameter inch1-1/2
Shank length inch4
Pipe tap rear inch1/4 NPT
Quantity of Inserts6
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length inch7-1/2
Length Type2.2 X D


Related Items
6mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-19M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)8.48
CategoryStocked
