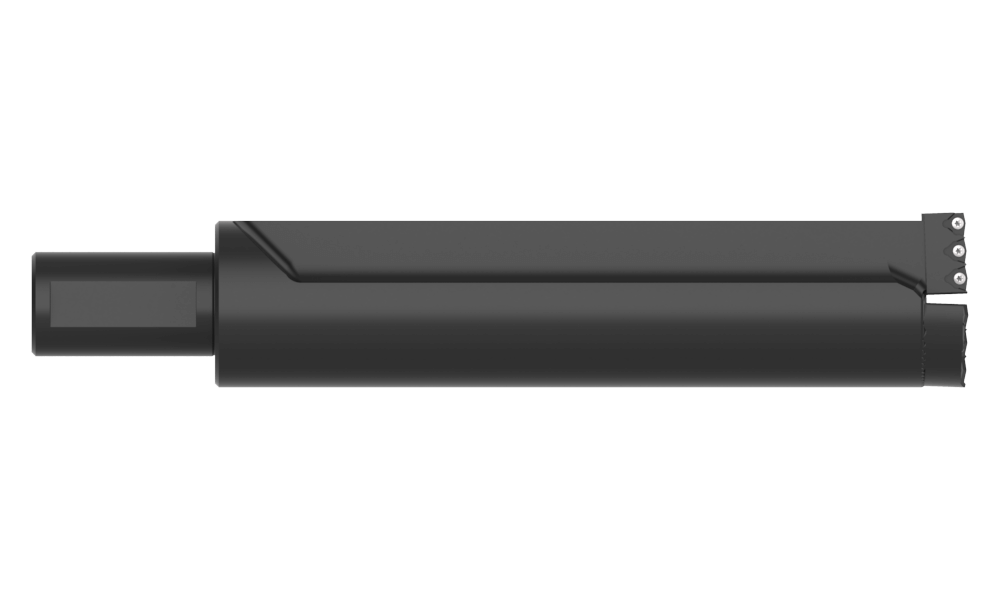

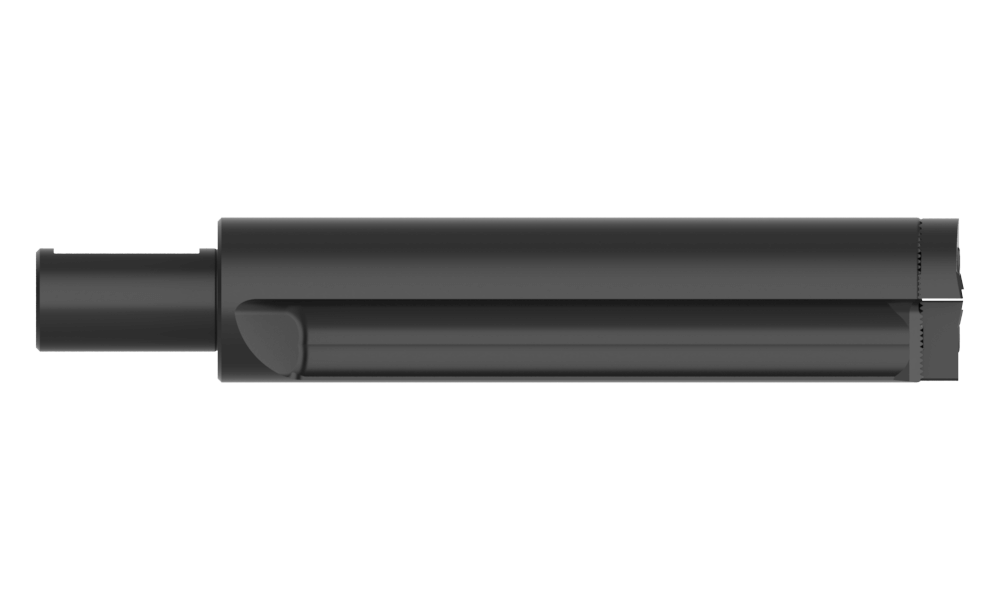

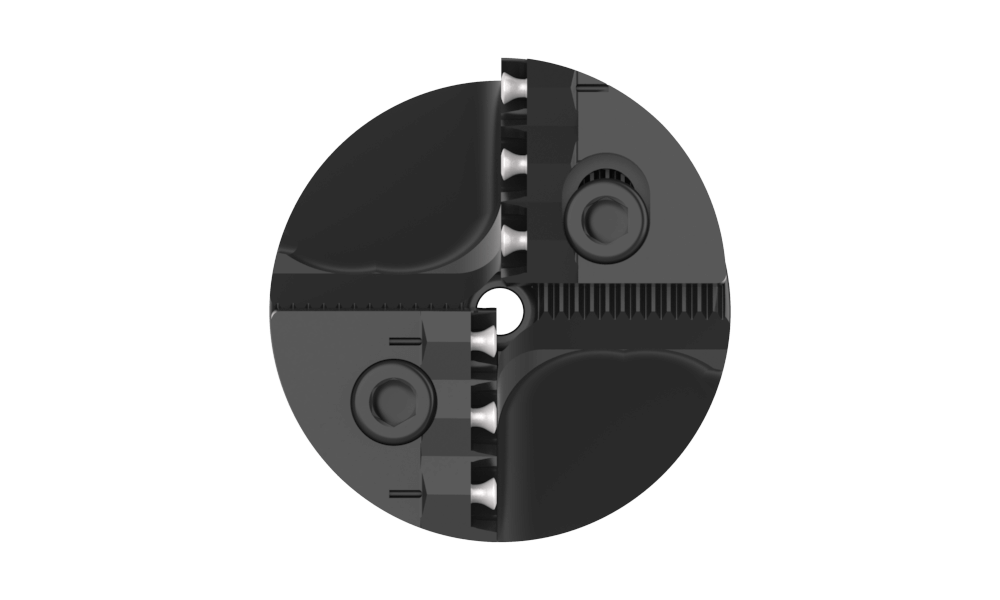

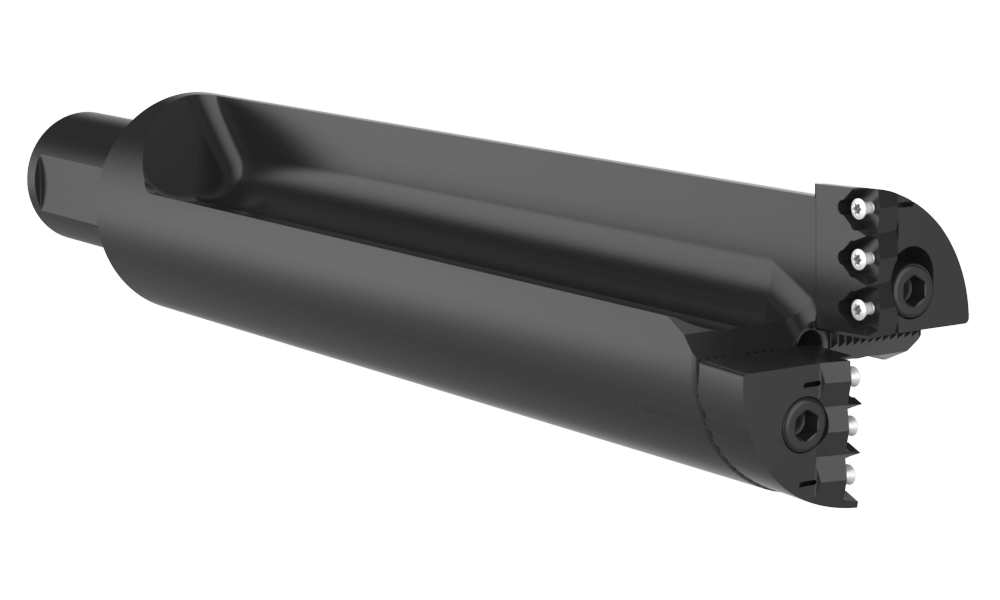

R44X35-40M
2.6-2.8 Revolution 3.5D 40mmSS
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR44
Minimum diameter mm66
Maximum diameter mm71.1
Drill depth mm252.9
Overall length mm355.9
Shank diameter mm40
Shank length mm70
Quantity of Inserts6
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm285.9
Length Type3.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)11.49
CategoryStocked
