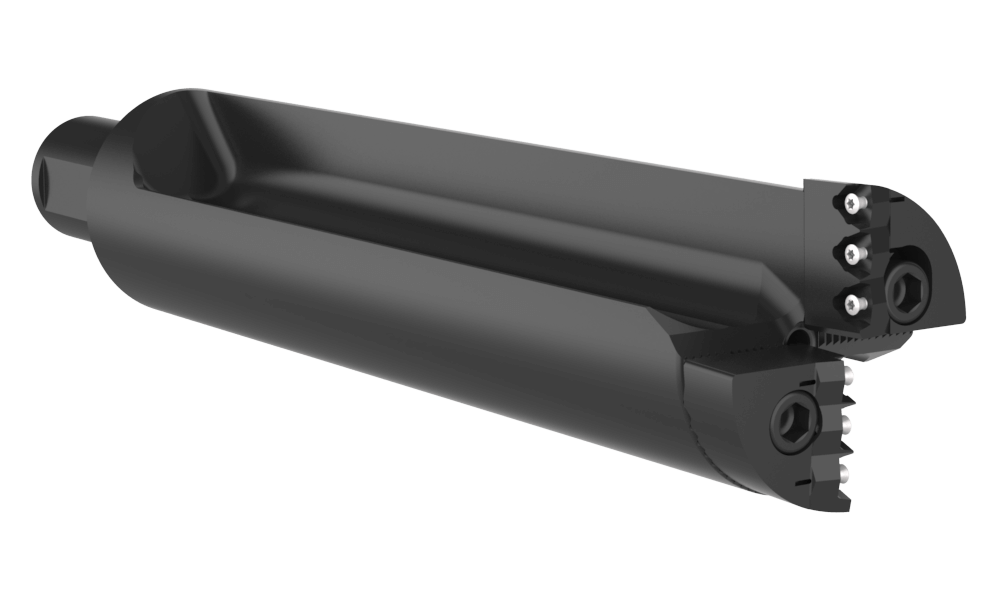

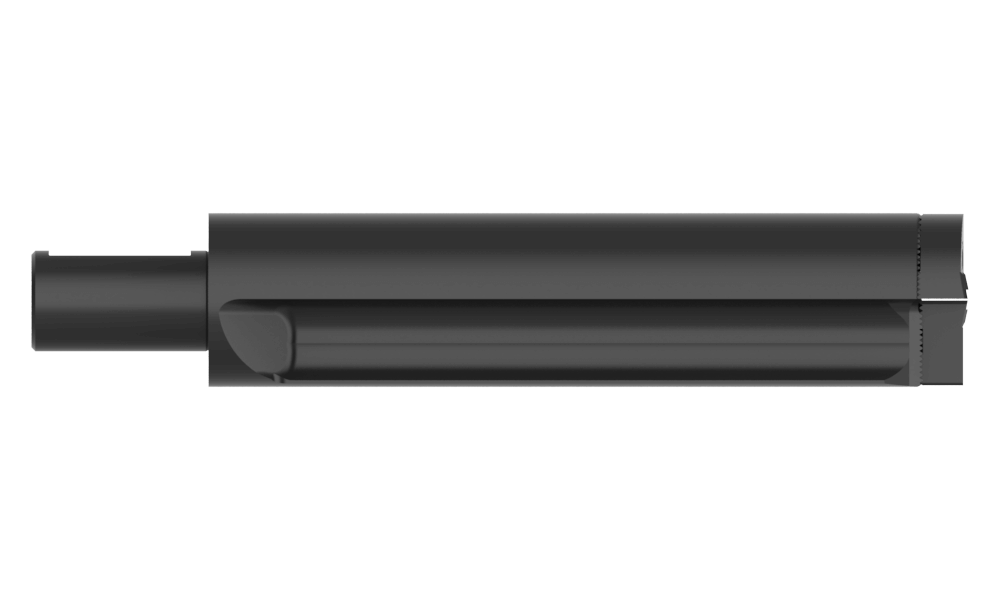

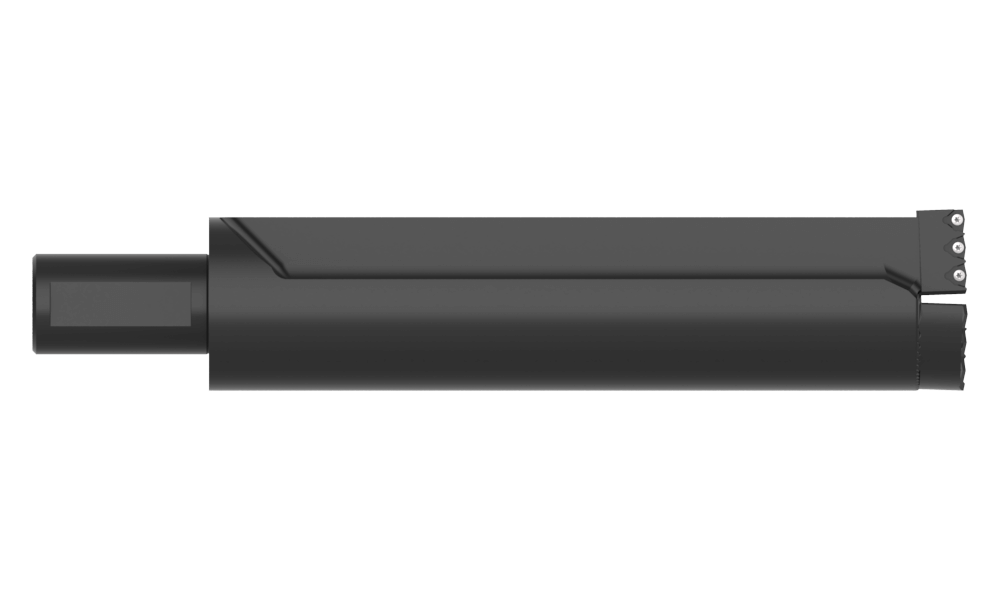

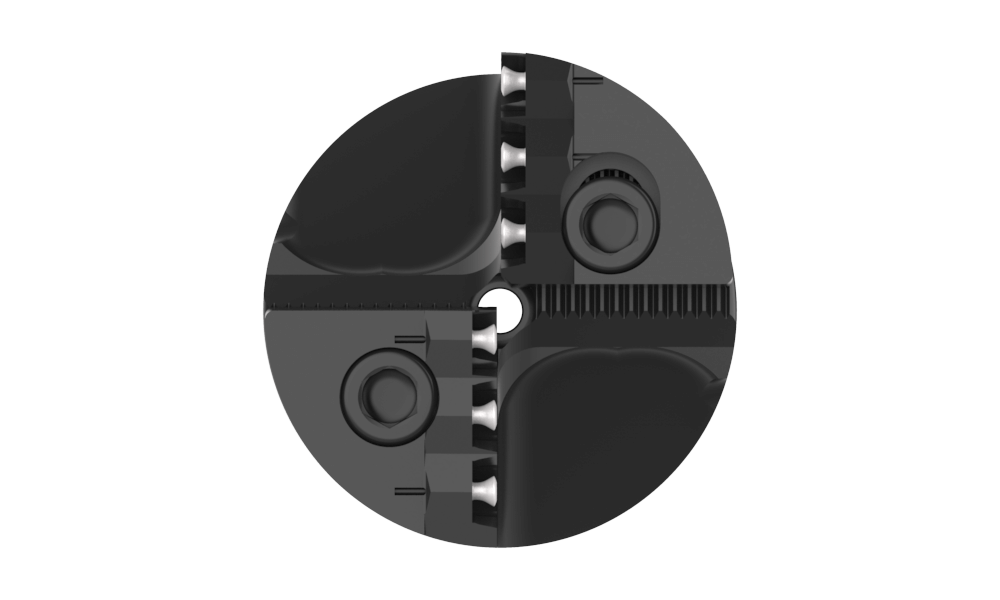

R46X35-40M
2.8-3.0 Revolution 3.5D 40mmSS
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR46
Minimum diameter mm71.1
Maximum diameter mm76.2
Drill depth mm265.6
Overall length mm368.6
Shank diameter mm40
Shank length mm70
Quantity of Inserts6
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm298.6
Length Type3.5 X D


Related Items
8mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-21M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)13.41
CategoryStocked
