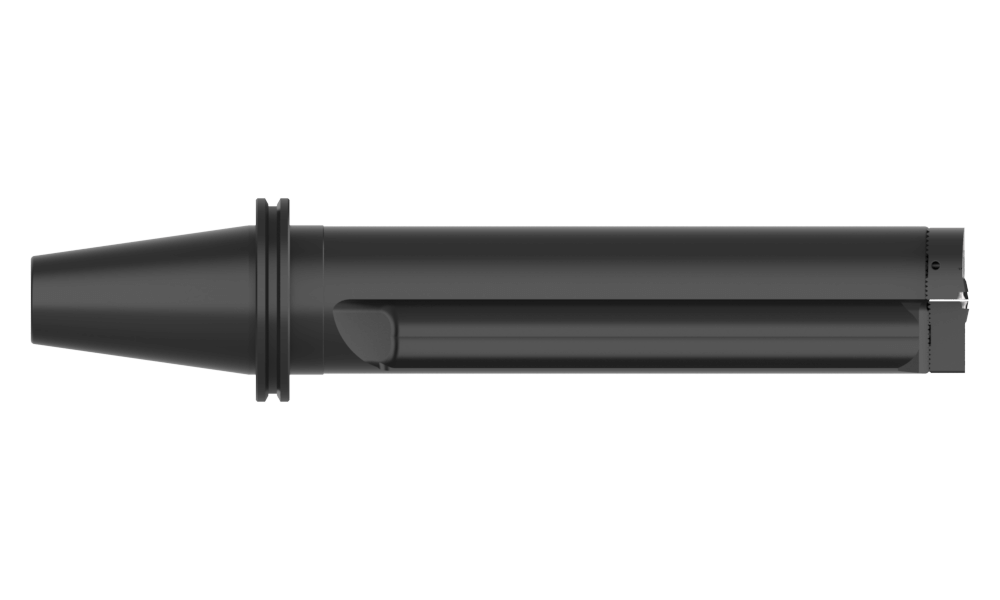

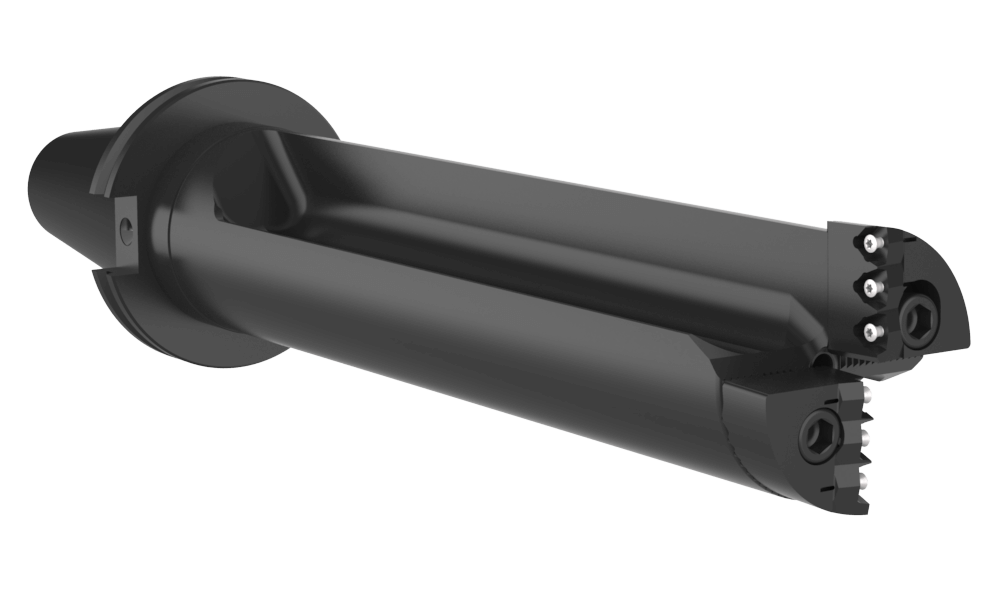

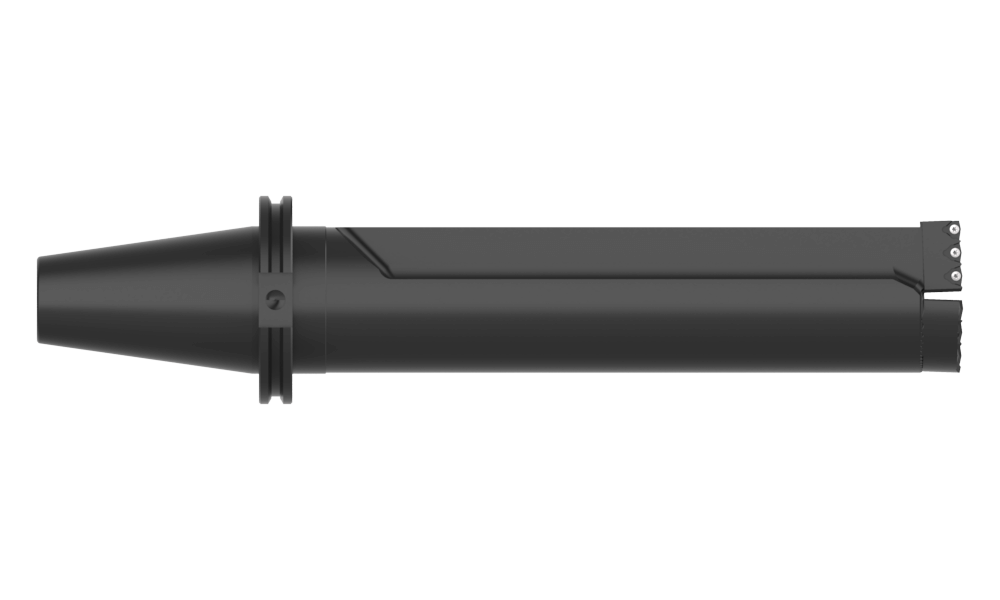

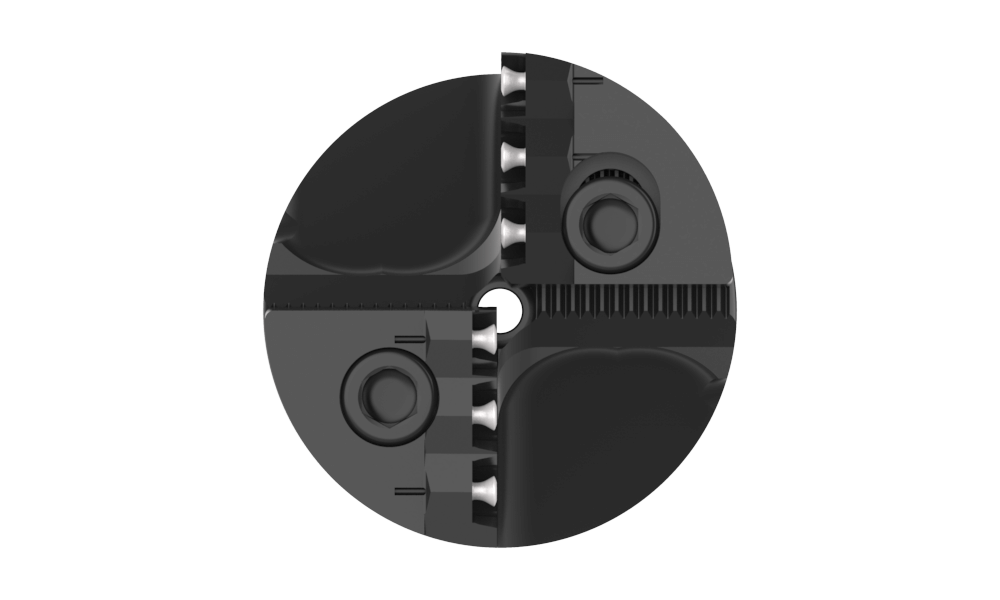

R46X35-CV50
2.8-3.0 Revolution 3.5D CV50
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR46
Minimum diameter inch2.80
Maximum diameter inch3.00
Drill depth inch10-29/64
Quantity of Inserts6
Insert prefixOP-05T308-
Shank typeCV 50
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch13-1/8
Length Type3.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)19.37
CategoryStocked
