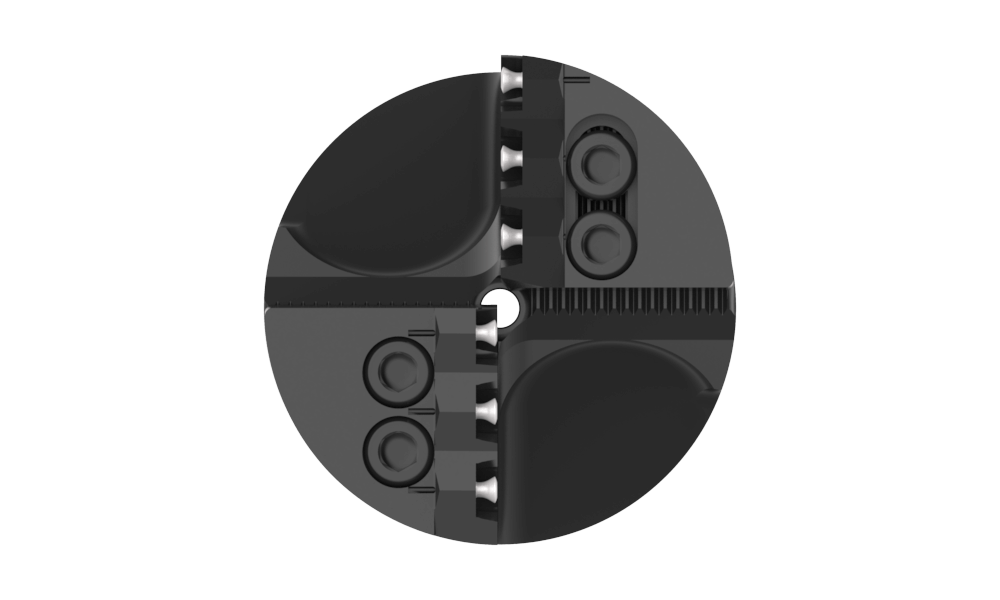

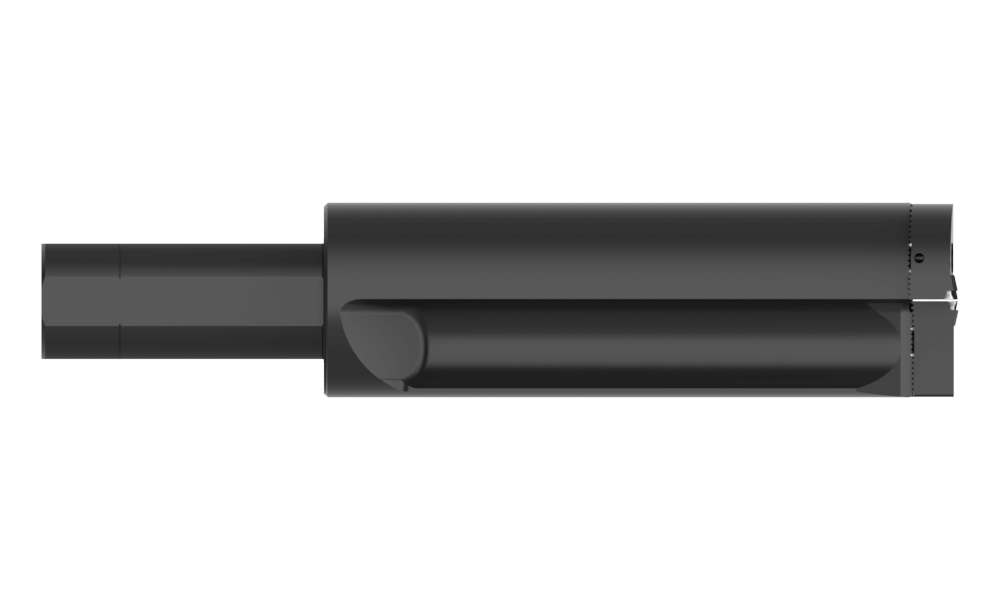

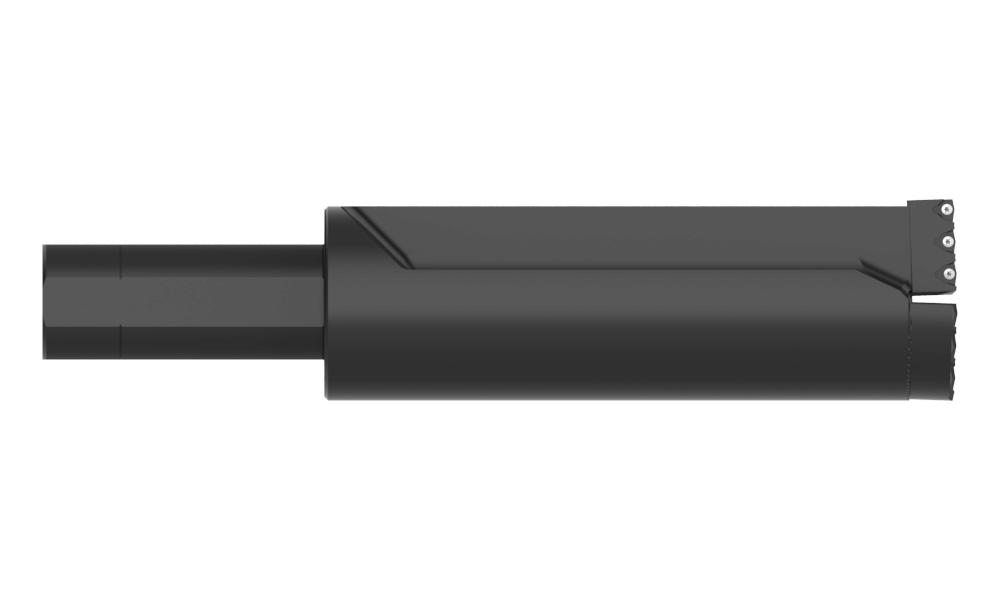

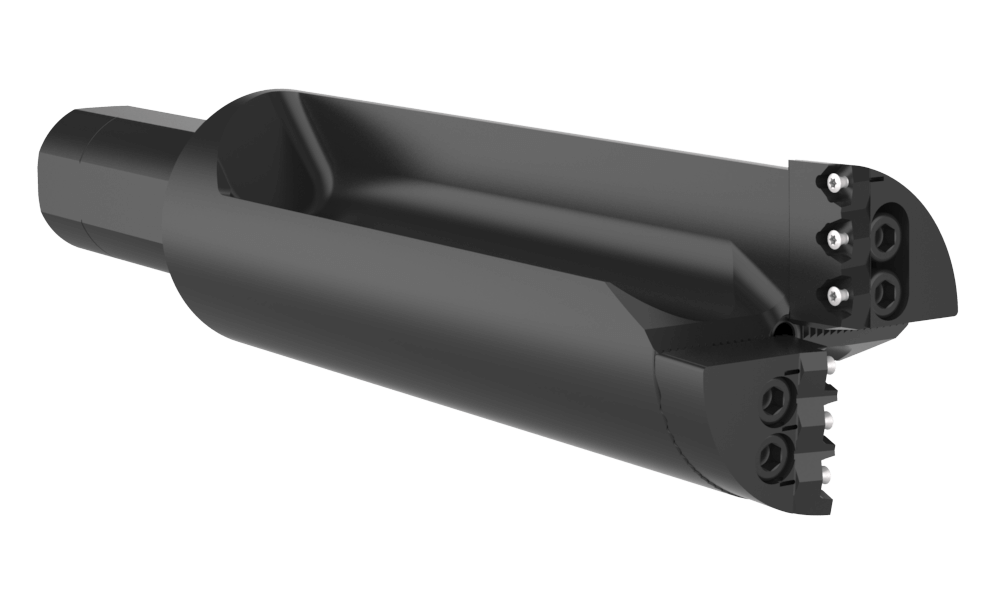

R52X25-200L
3.2-3.4 Revolution 2.5D 2.00SS
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR52
Minimum diameter inch3.20
Maximum diameter inch3.40
Drill depth inch8-27/64
Overall length inch14-33/64
Shank diameter inch2
Shank length inch4-1/2
Pipe tap rear inch1/4 NPT
Quantity of Inserts6
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length inch10-1/64
Length Type2.5 X D


Related Items
6mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-19M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)16.92
CategoryStocked
