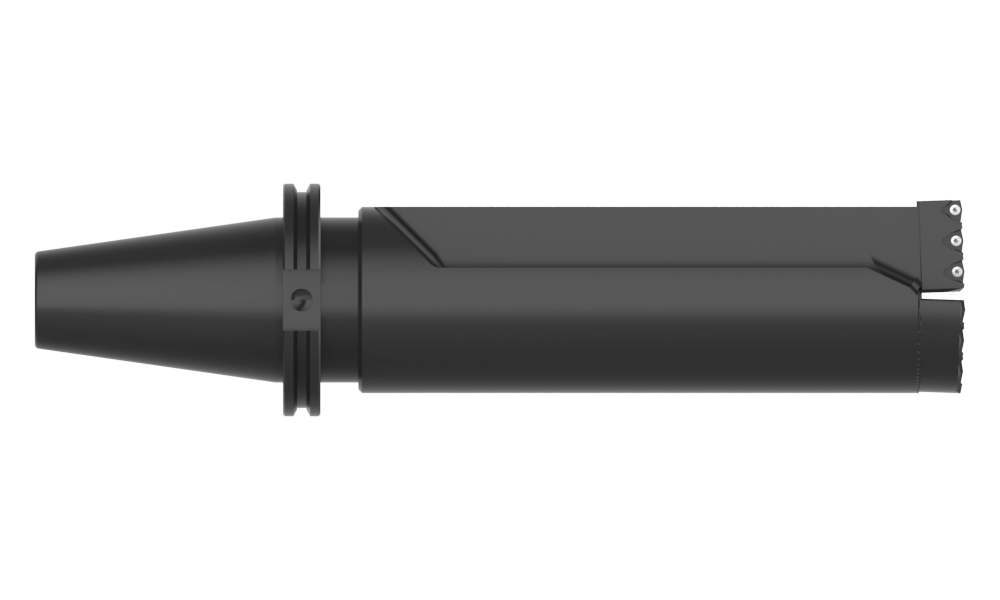

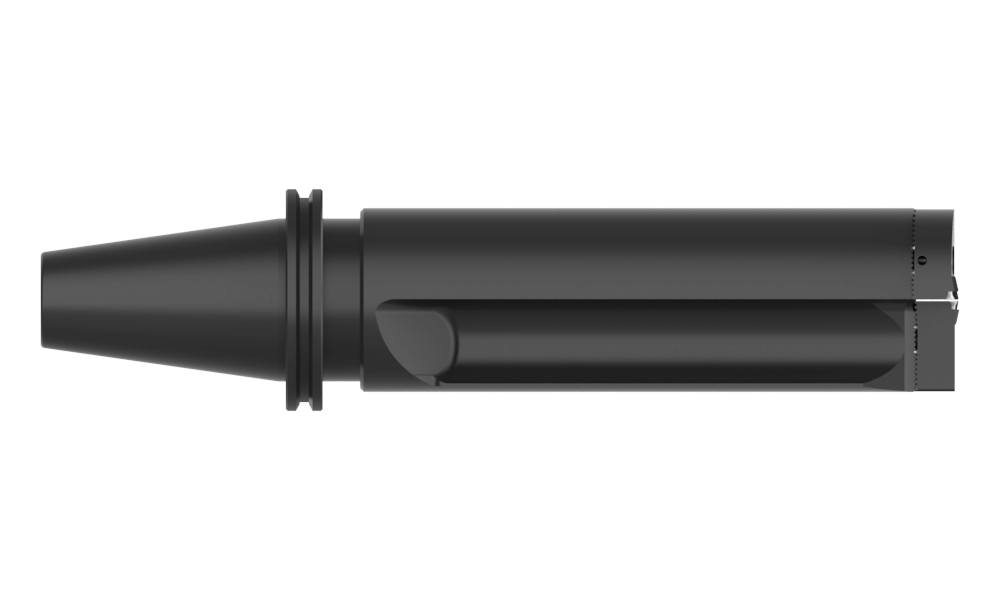

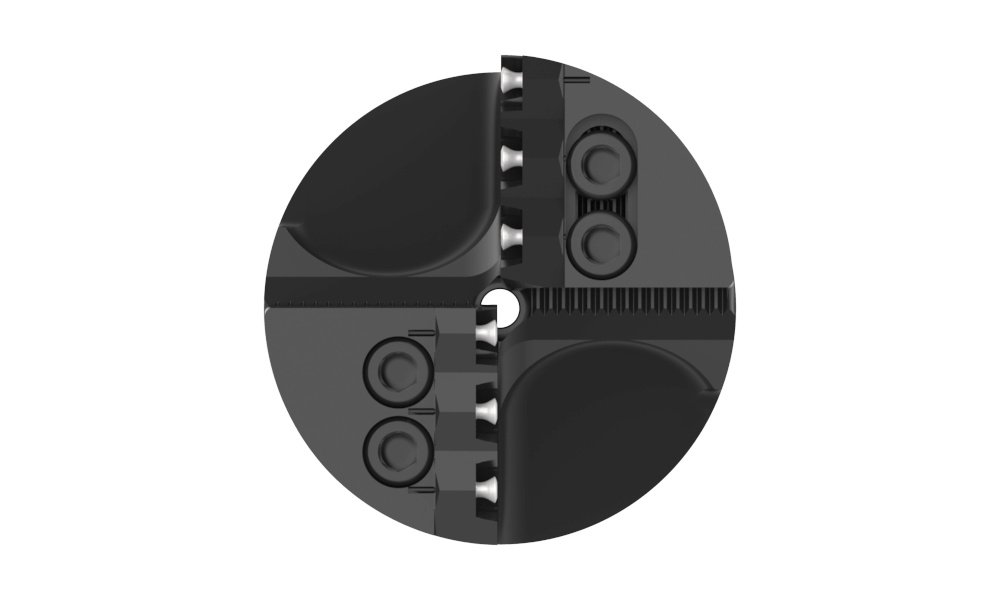

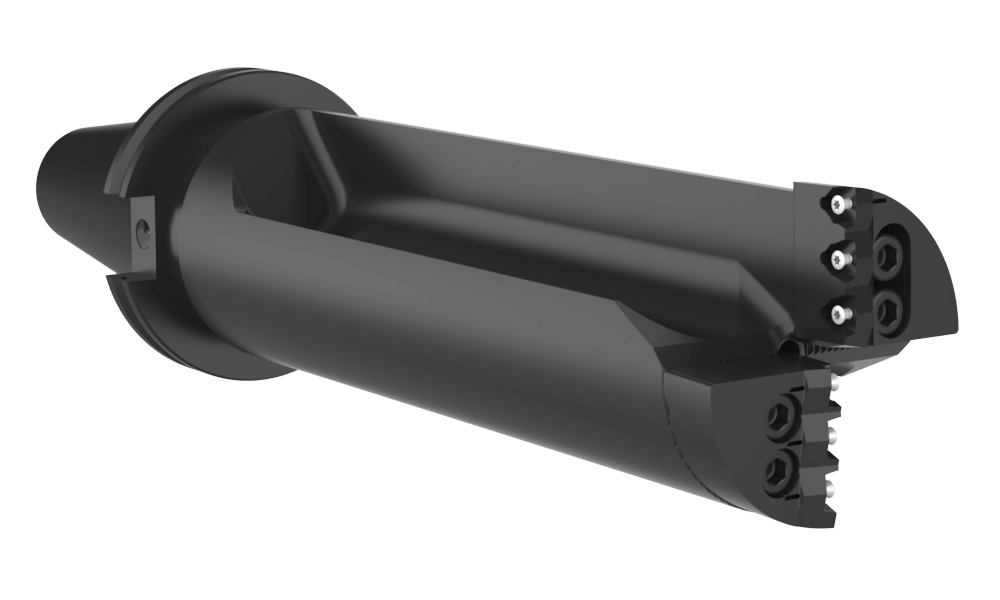

R52X25-CV50
3.2-3.4 Revolution 2.5D CV50
Revolution Drill® Holder





Siehe zusätzliche technische Daten

Produktspezifikationen
Type of ProductIndexable Drill Body
SeriesR52
Minimum diameter inch3.20
Maximum diameter inch3.40
Drill depth inch8-27/64
Quantity of Inserts6
Insert prefixOP-05T308-
Shank typeCV 50
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch11-25/64
Length Type2.5 X D


Related Items
6mm Hex Key     (Menge: 0)
Mounting Screw Driver
8T-9     (Menge: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Menge: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Menge: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-19M-1     (Menge: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Bestellinformationen
Packmenge1
Mindestbestellmenge1
Jeweiliges Gewicht in Pfund (lbs)20,62
