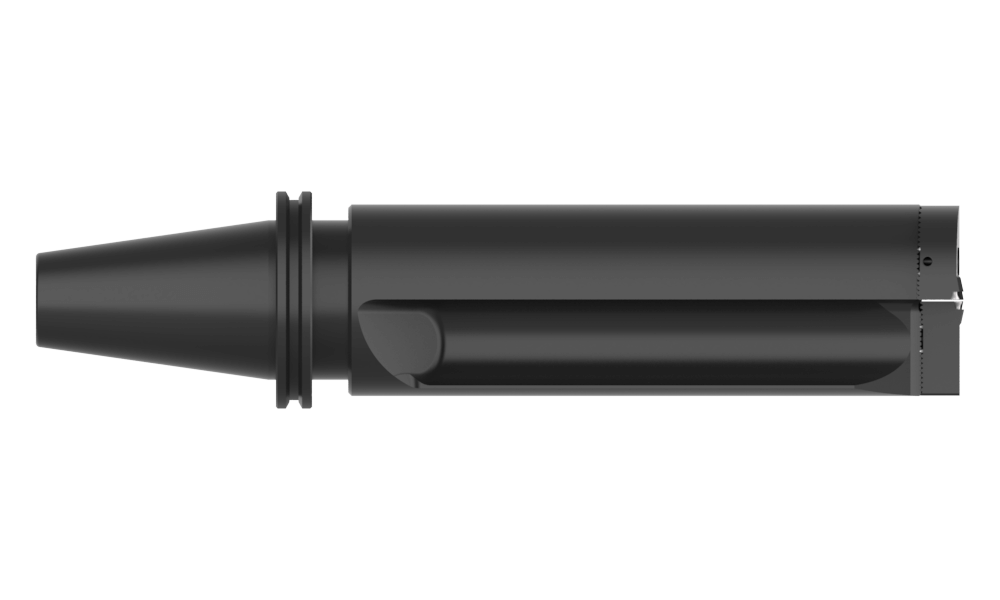

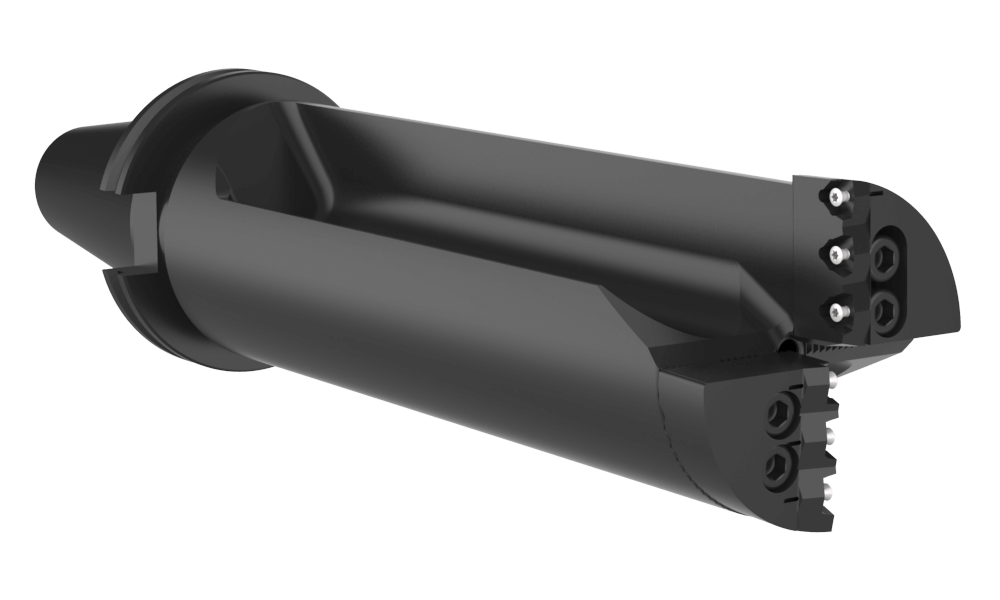

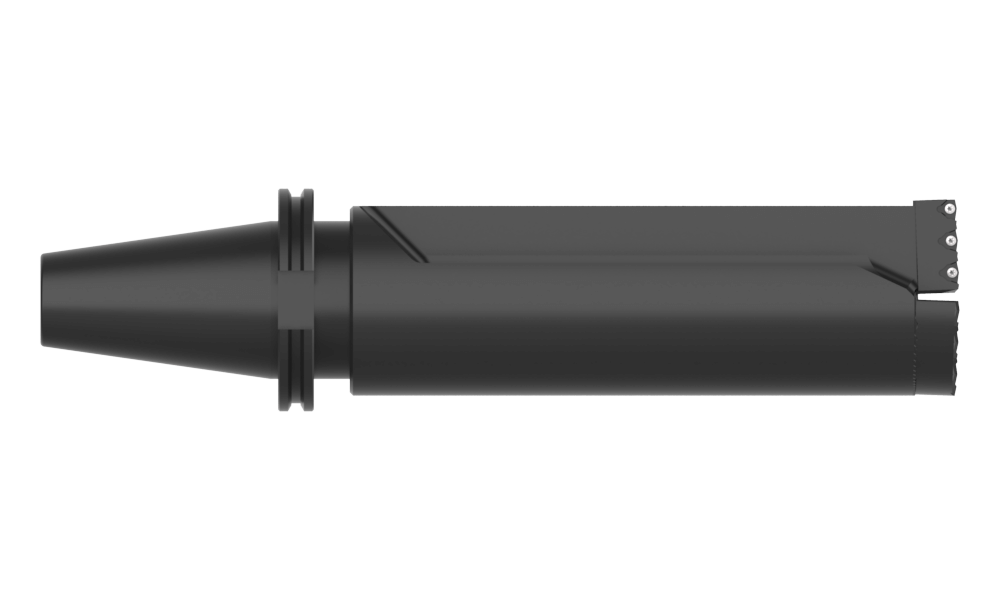

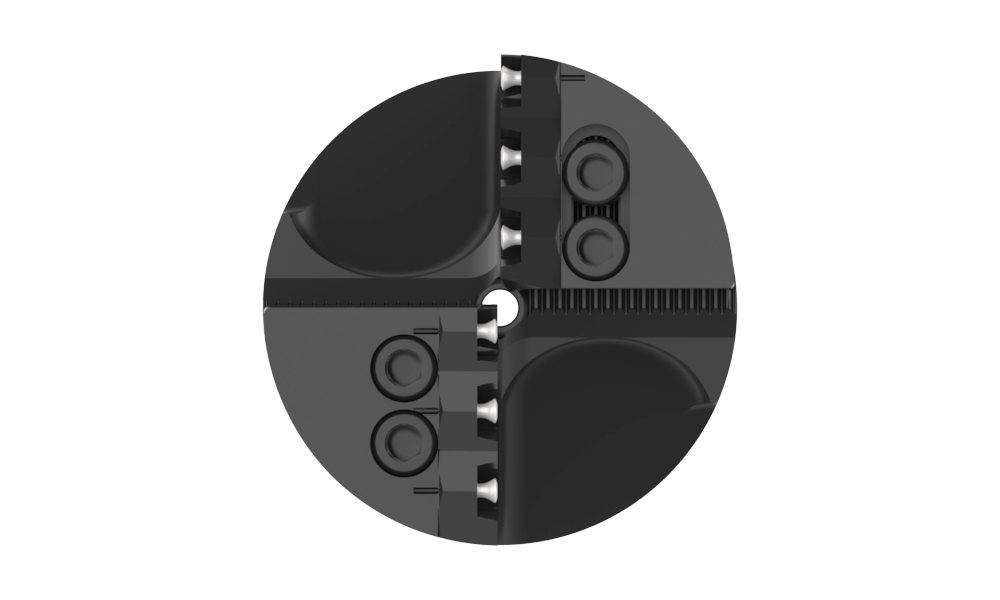

R54X25-CV50
3.4-3.6 Revolution 2.5D CV50
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR54
Minimum diameter inch3.40
Maximum diameter inch3.60
Drill depth inch8-29/32
Quantity of Inserts6
Insert prefixOP-05T308-
Shank typeCV 50
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch11-57/64
Length Type2.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)23.02
CategoryStocked
