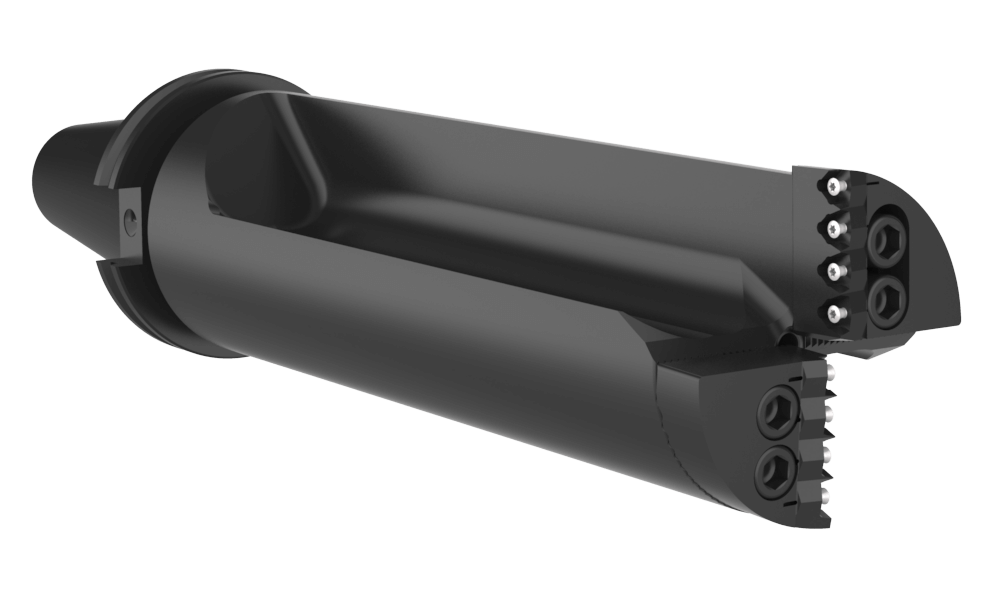

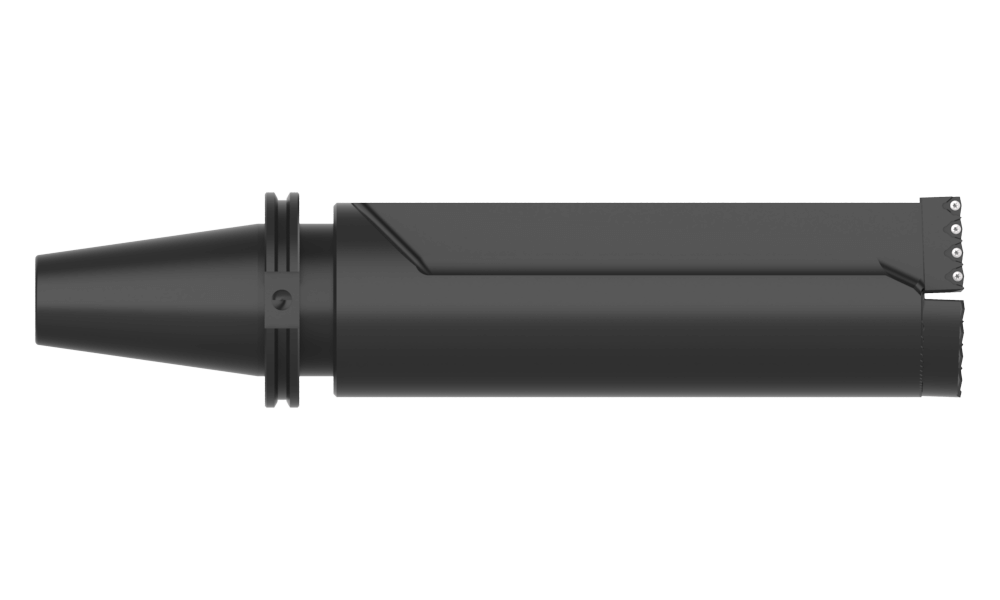

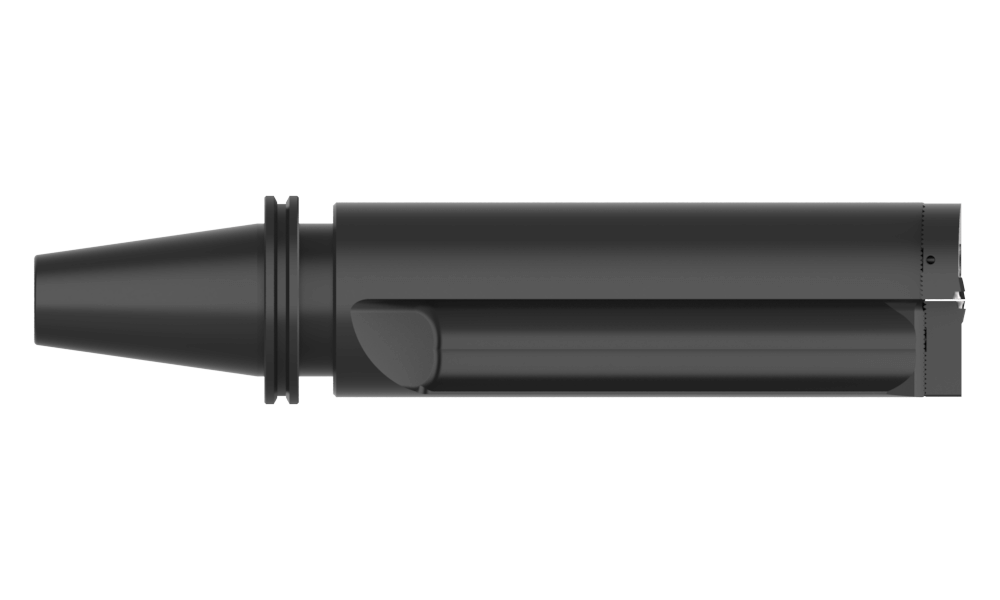

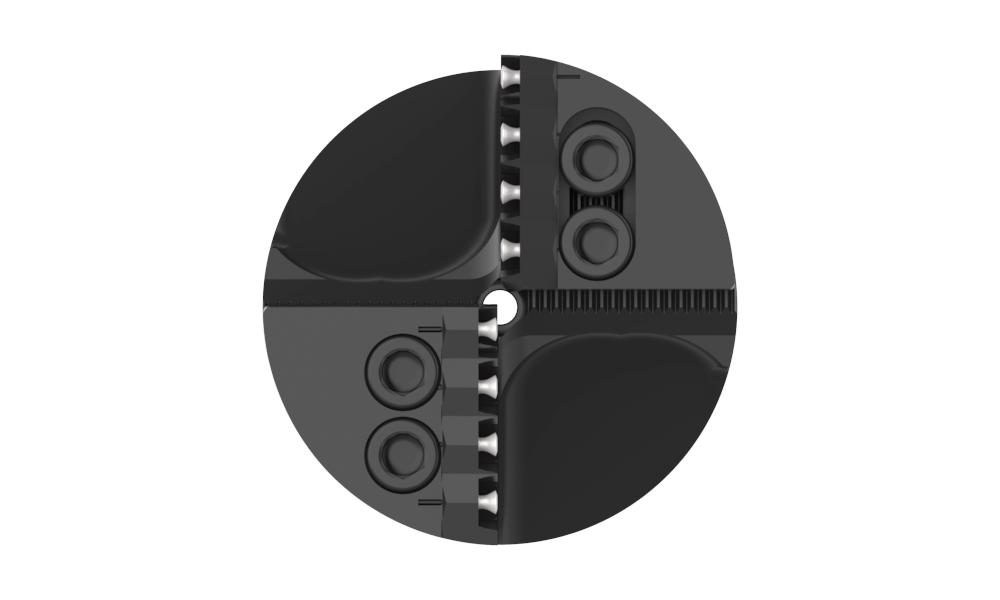

R56X25-CV50
3.6-3.8 Revolution 2.5D CV50
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR56
Minimum diameter inch3.60
Maximum diameter inch3.80
Drill depth inch9-3/8
Quantity of Inserts8
Insert prefixOP-05T308-
Shank typeCV 50
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch12-5/8
Length Type2.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)26.11
CategoryStocked
