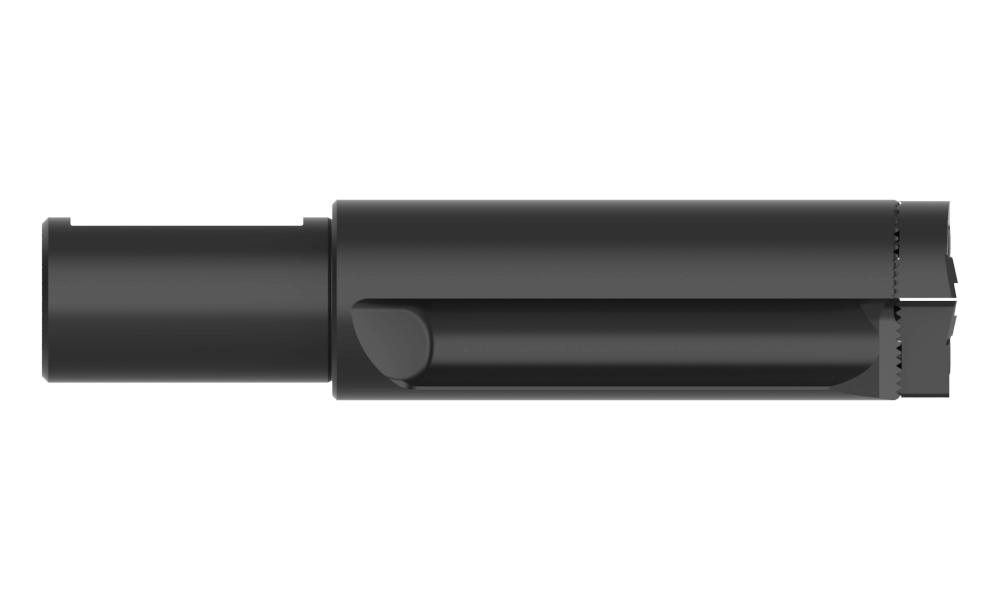

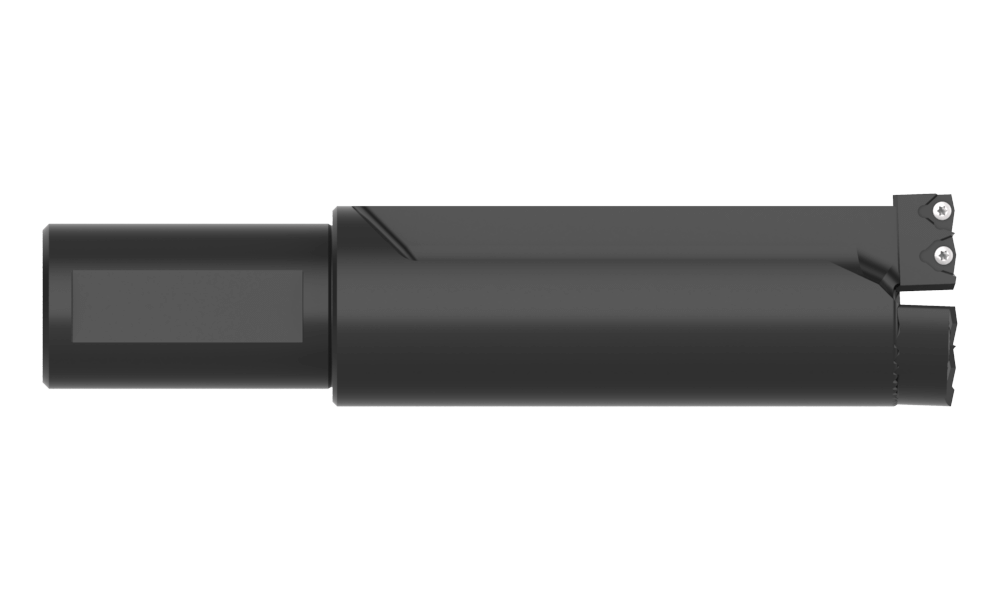

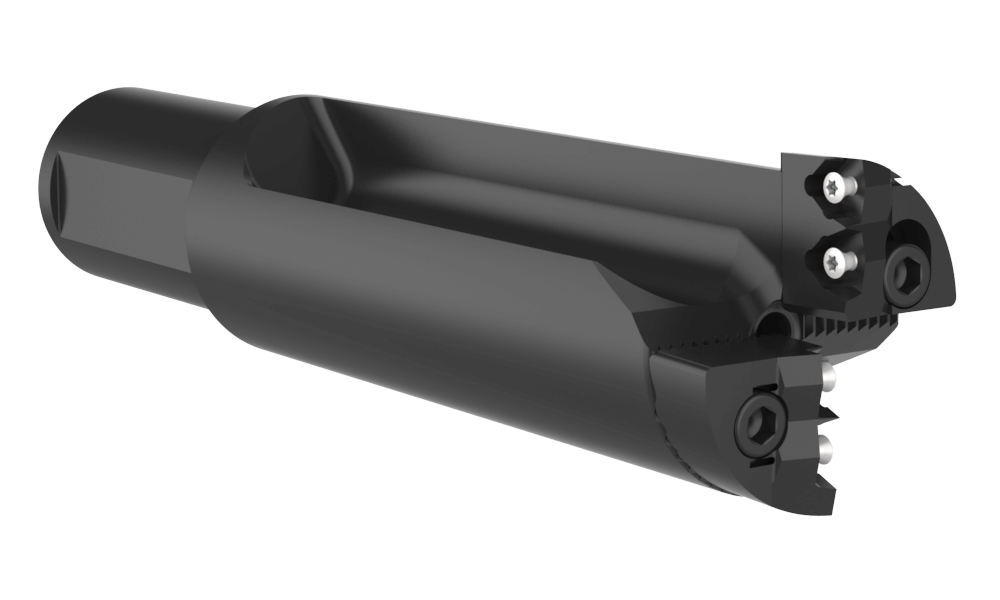

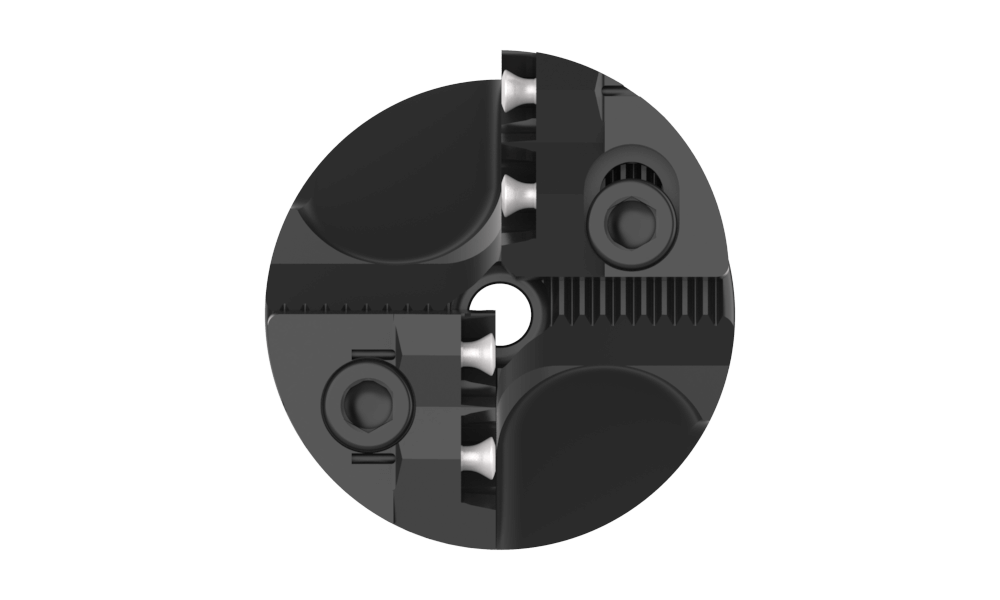

SP36X22-40M
2.0-2.2 Rev. 2.2D 40mmSS SP
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR36
Minimum diameter mm50.8
Maximum diameter mm55.9
Drill depth mm124
Overall length mm217.6
Shank diameter mm40
Shank length mm70
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm147.6
Length Type2.2 X D


Related Items
5mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-17M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW PACK
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)4.52
CategoryStocked
