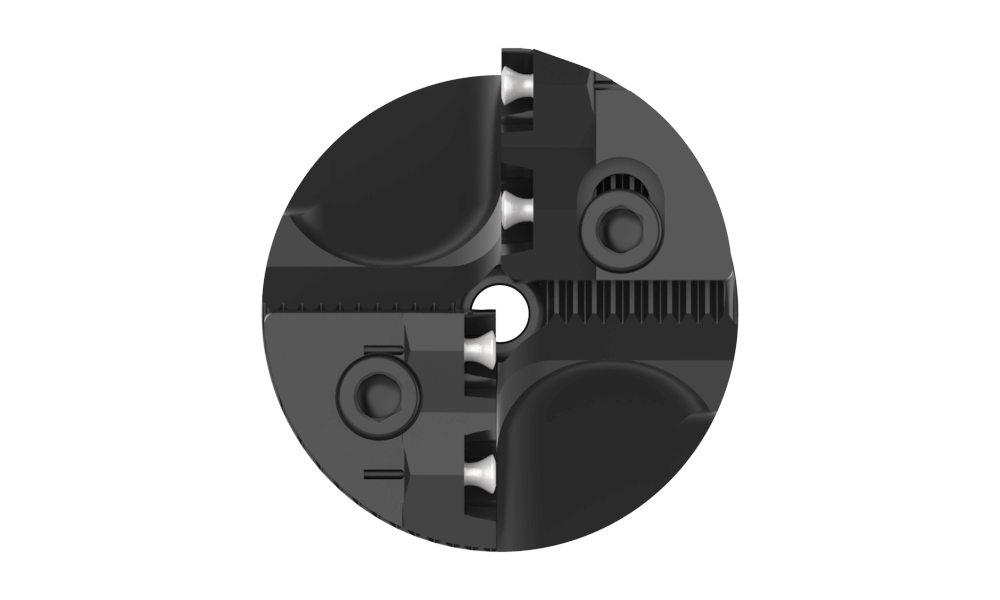

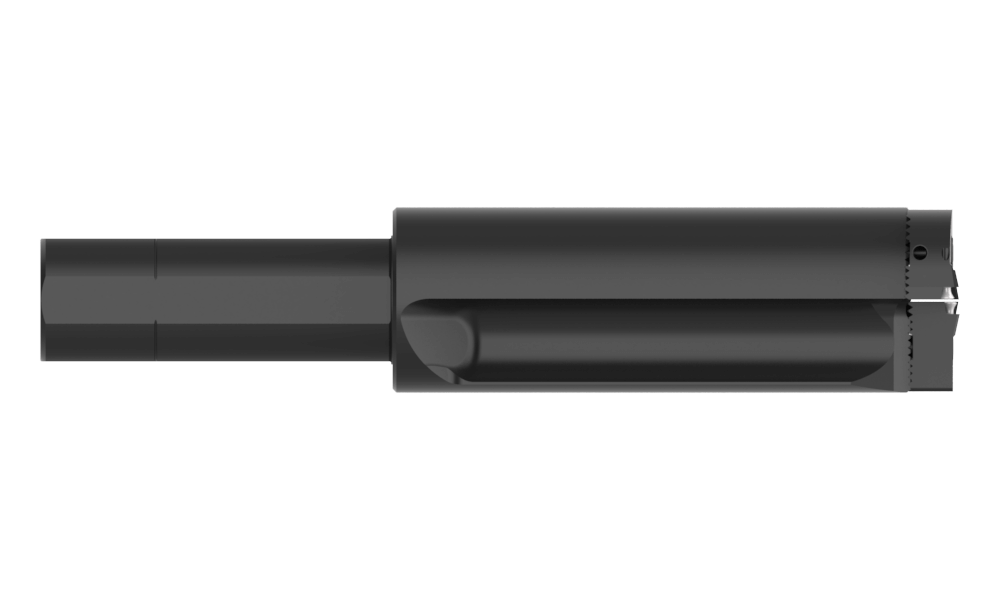

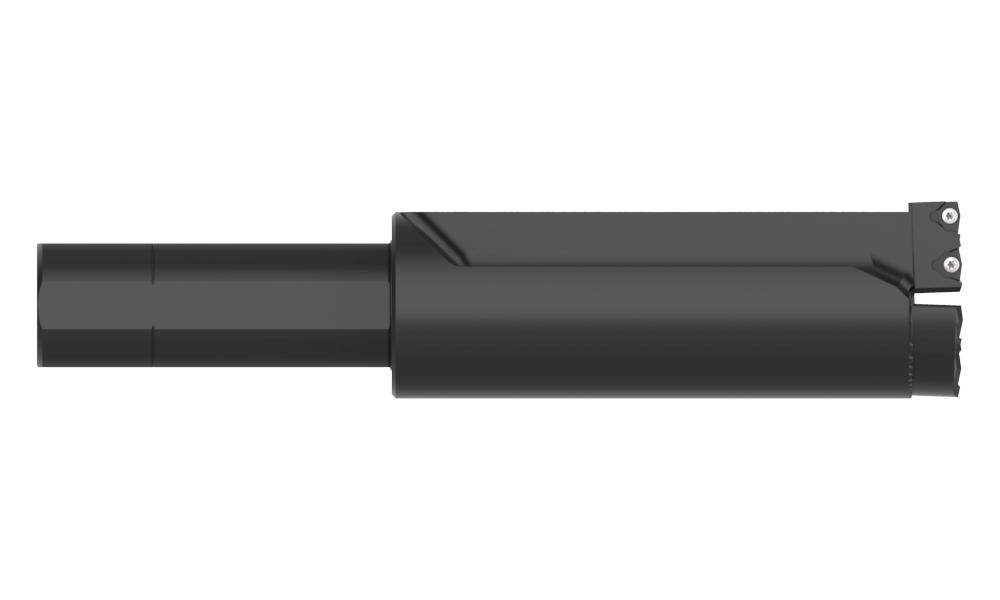

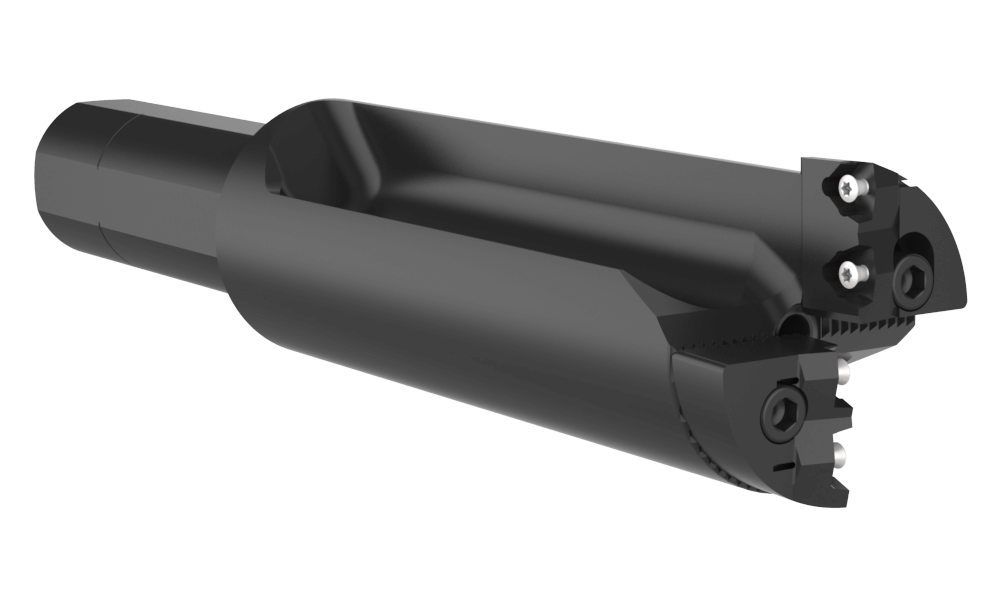

SP38X22-150L
2.2-2.4 Rev. 2.2D 1.50SS SP
Revolution Drill® Holder





See Additional Technical Information

Product Specifications
Type of ProductIndexable Drill Body
SeriesR38
Minimum diameter inch2.20
Maximum diameter inch2.40
Drill depth inch5-3/8
Overall length inch10-19/64
Shank diameter inch1-1/2
Shank length inch4
Pipe tap rear inch1/4 NPT
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length inch6-19/64
Length Type2.2 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)5.88
CategoryStocked
