SP42X22-150L
2.4-2.6 Rev. 2.2D 1.50SS SP

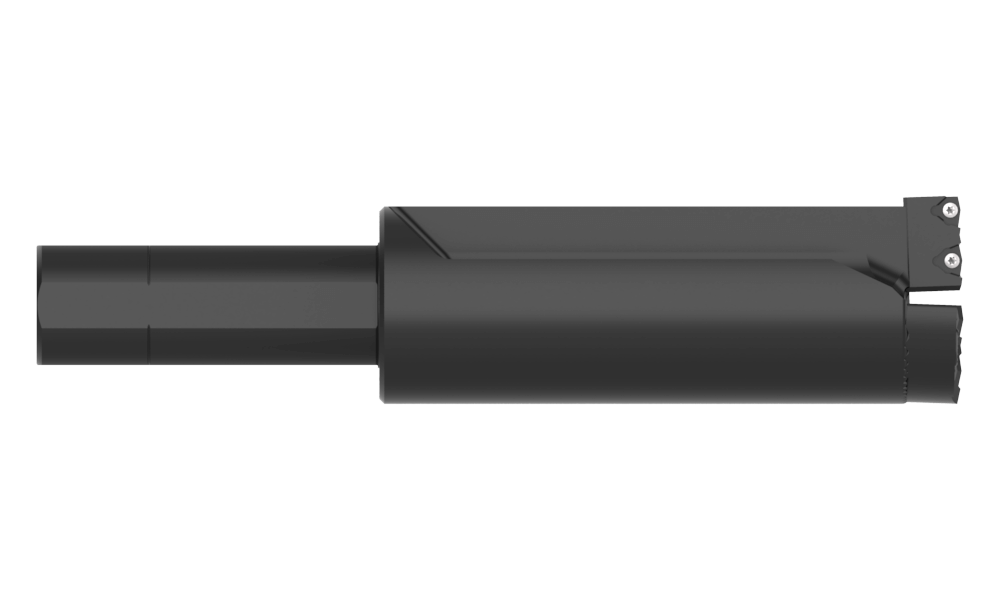

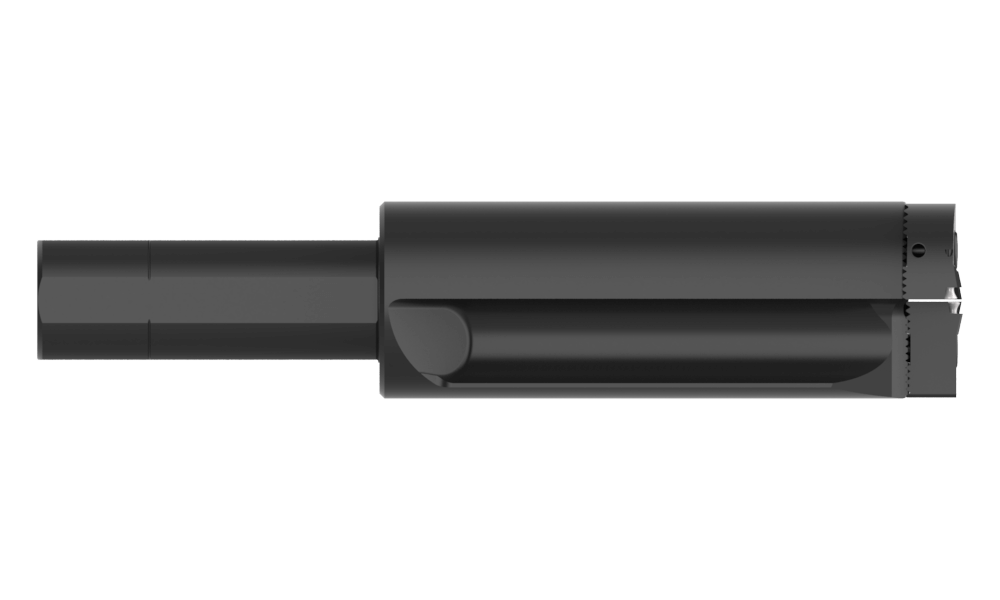

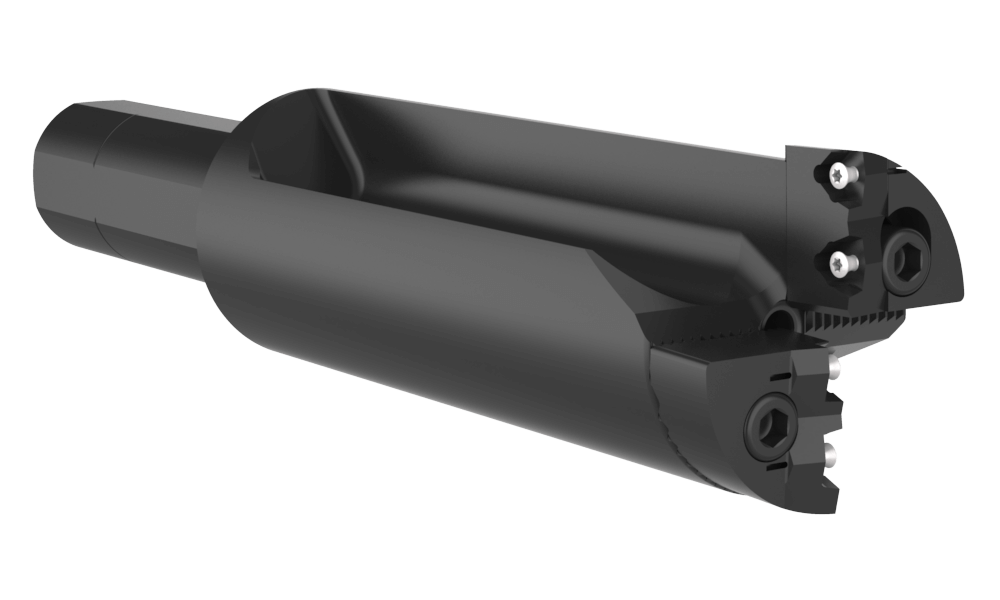

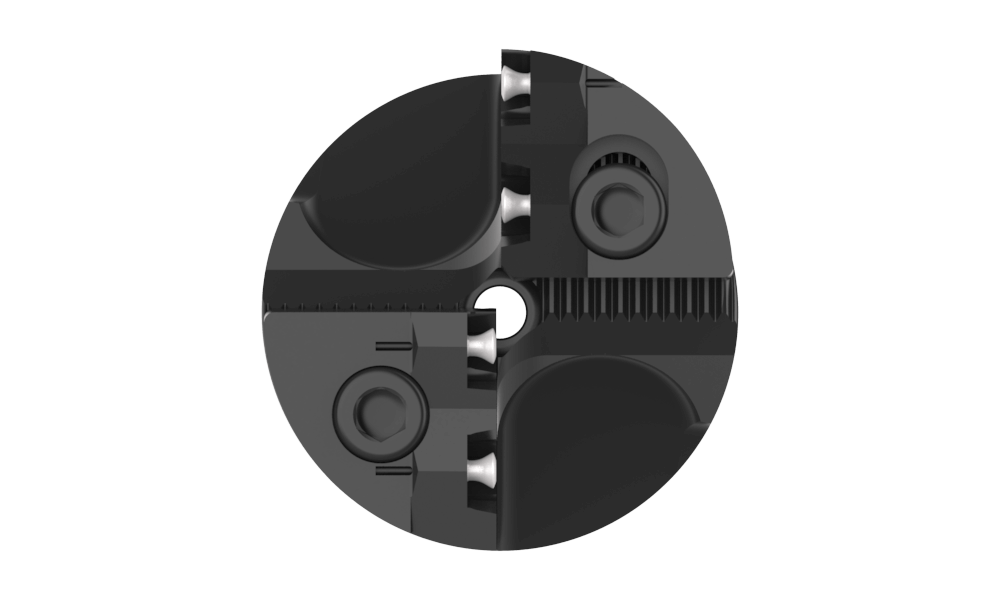

Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR42
Minimum diameter inch2.40
Maximum diameter inch2.60
Drill depth inch5-3/4
Overall length inch10-13/16
Shank diameter inch1-1/2
Shank length inch4
Pipe tap rear inch1/4 NPT
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length inch6-13/16
Length Type2.2 X D


Related Items
6mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-19M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)6.86
CategoryStocked
