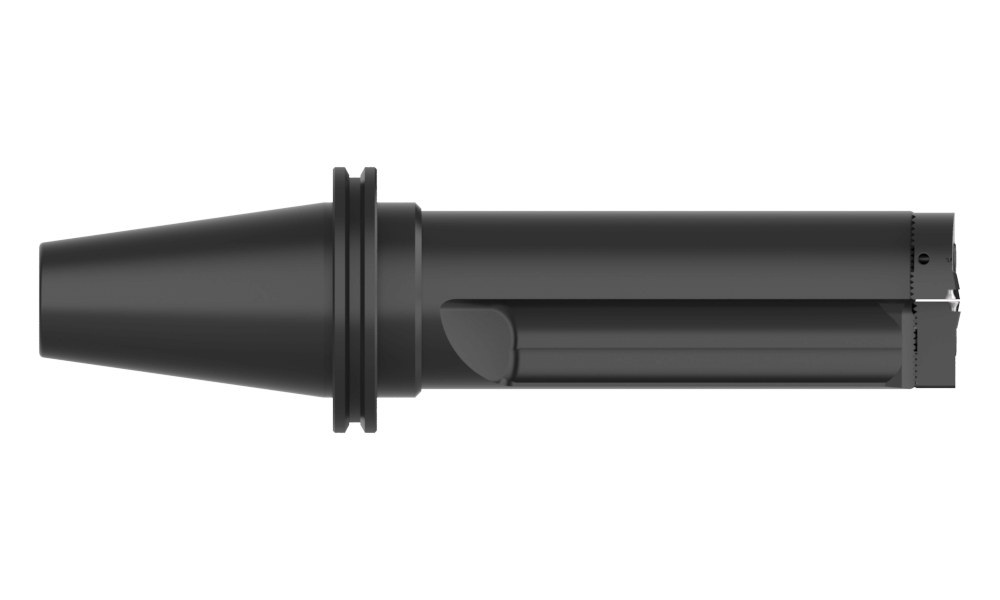

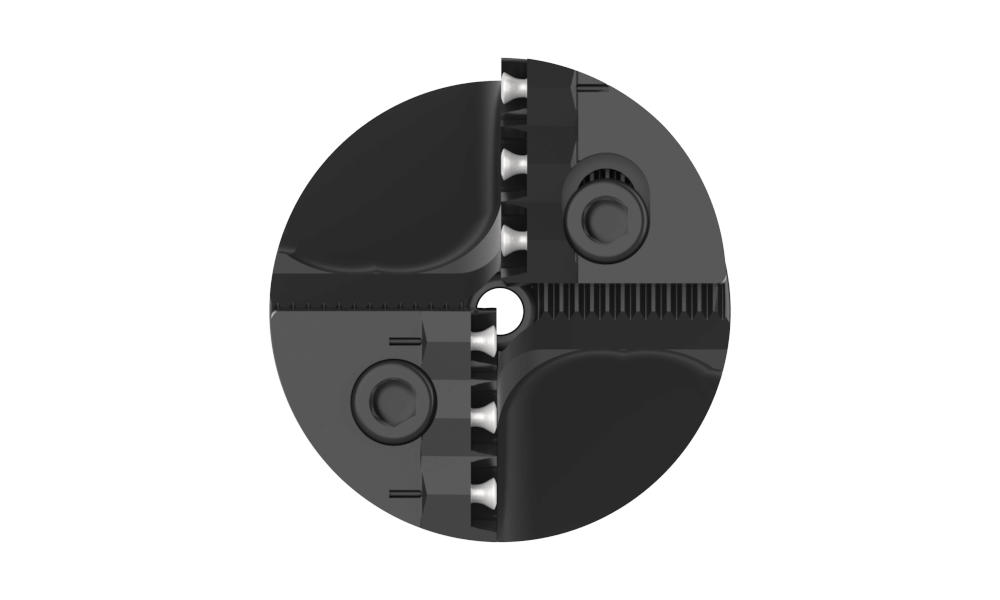

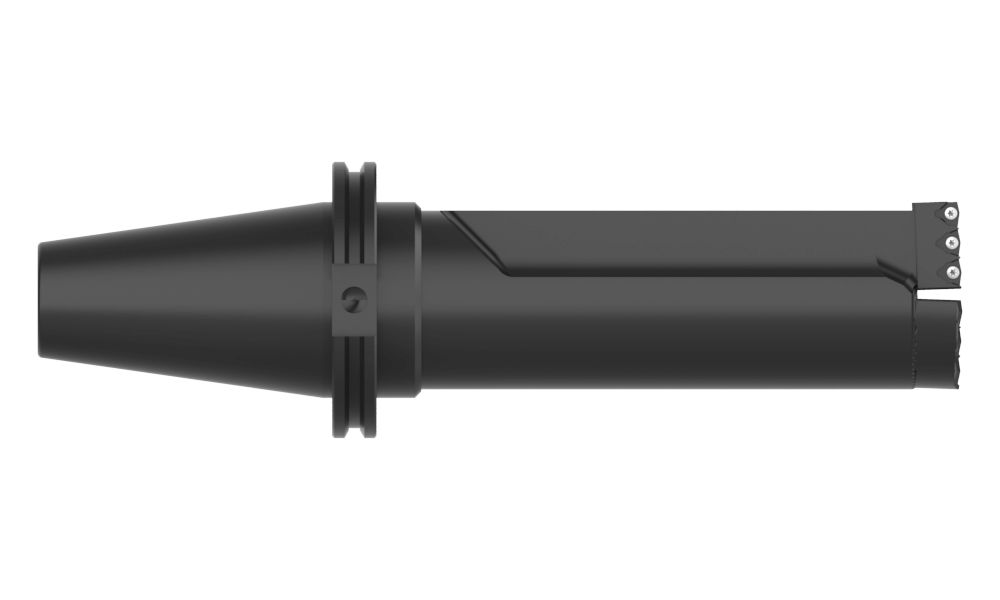

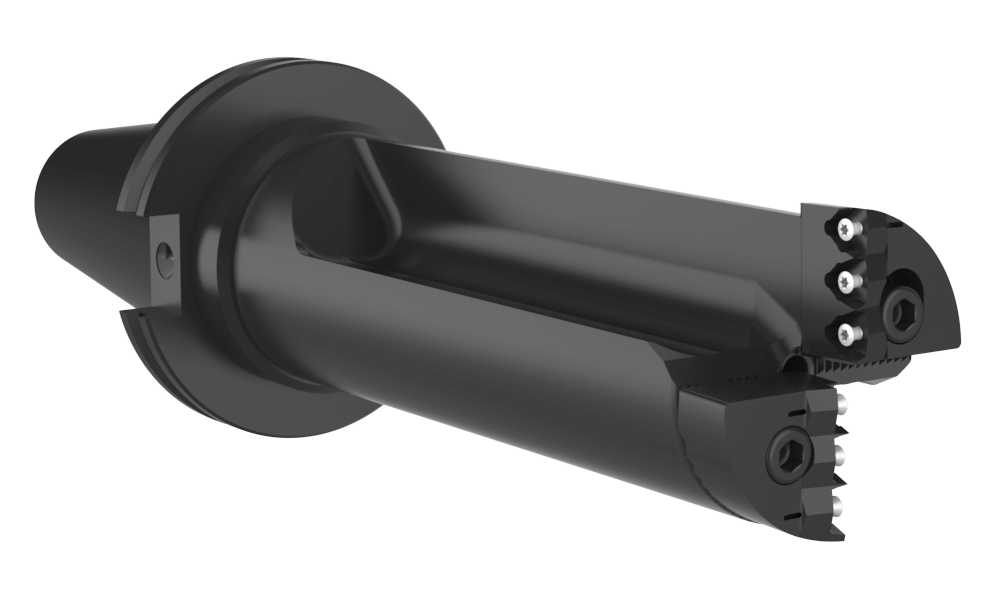

SP44X22-CV50

2.6-2.8 Rev. 2.2D CV50 SP

Revolution Drill® Holder

See Additional Technical Information

Revolution Drill®

Product Specifications

Type of Product	Indexable Drill Body
Series	R44
Minimum diameter inch	2.60
Maximum diameter inch	2.80
Drill depth inch	6-1/4
Quantity of Inserts	4
Insert prefix	OP-05T308-
Shank type	CV 50
Coolant	Yes
Coolant Inlet Style Rear	Through the Shank
Flute Type	Straight
Gage length inch	8-59/64
Length Type	2.2 X D

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	14.03
Category	Stocked
