SP46X22-CV50
2.8-3.0 Rev. 2.2D CV50 SP

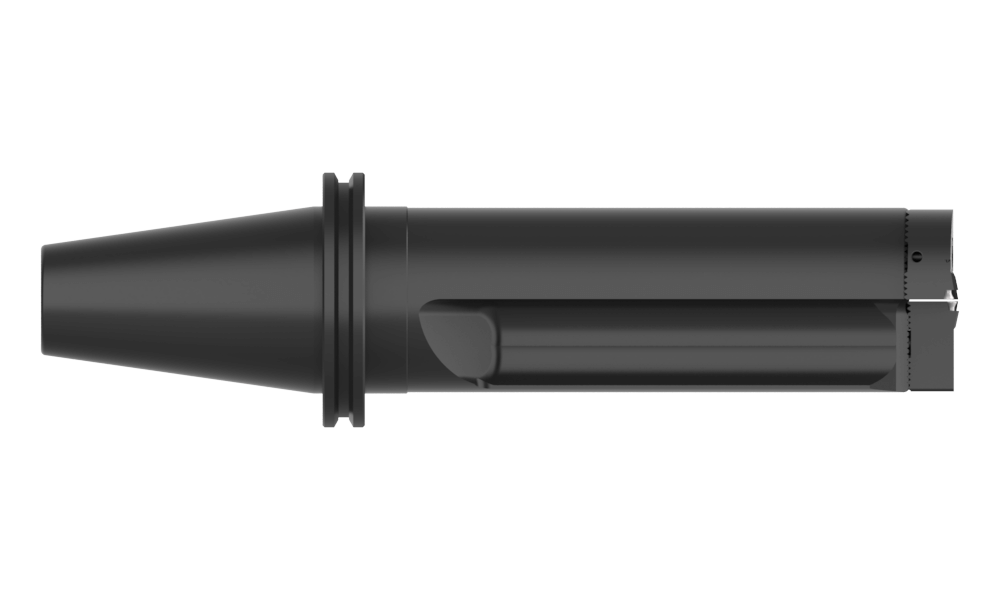

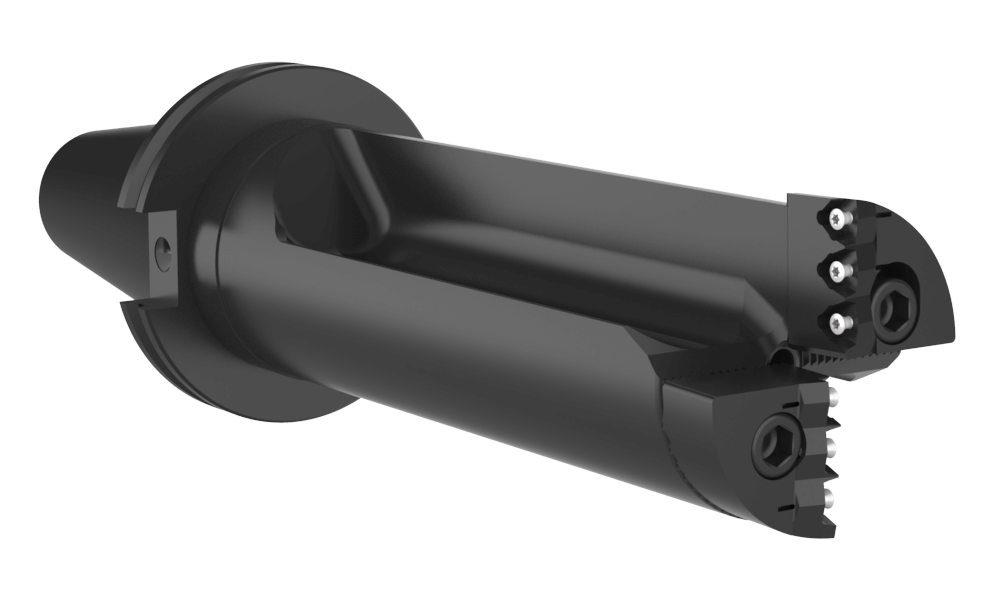

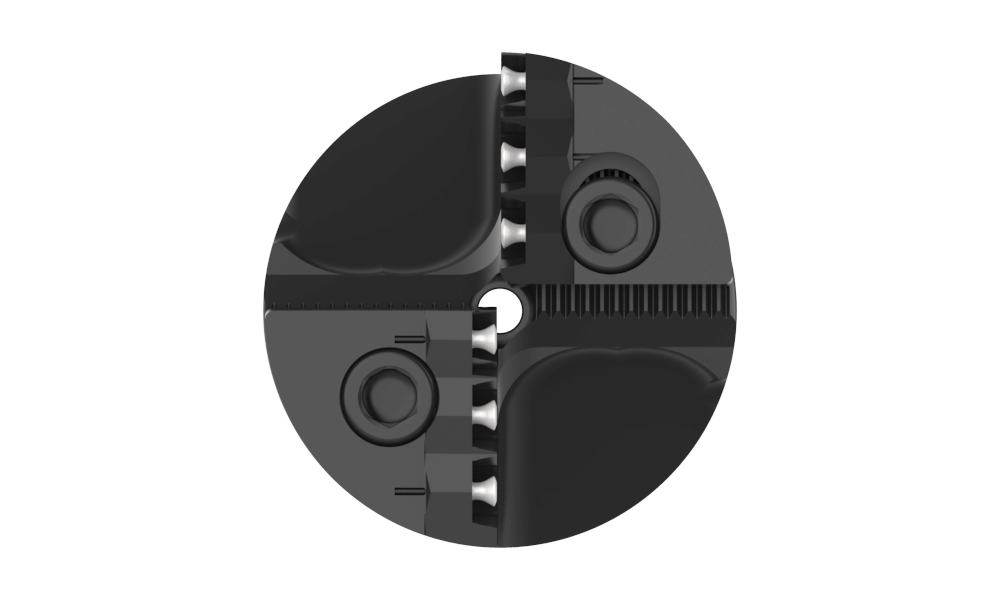

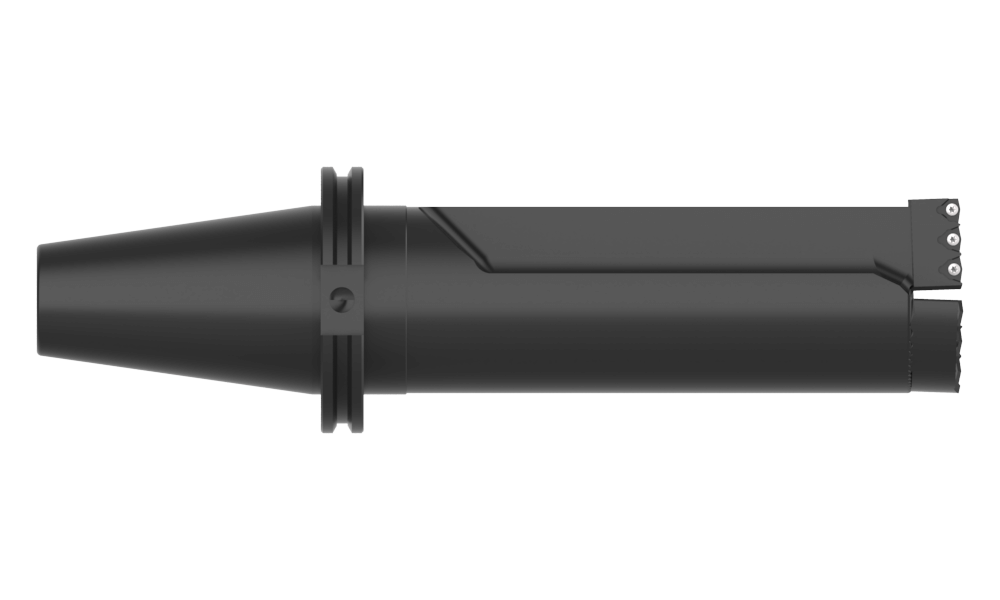

Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR46
Minimum diameter inch2.80
Maximum diameter inch3.00
Drill depth inch6-3/4
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeCV 50
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
Gage length inch9-27/64
Length Type2.2 X D


Related Items
8mm Hex Key     (Qty: 0)
Mounting Screw Driver
8T-9     (Qty: 0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
AS-18T9-1     (Qty: 0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
IS-10-1     (Qty: 0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
MS-21M-1     (Qty: 0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)15.45
CategoryStocked
