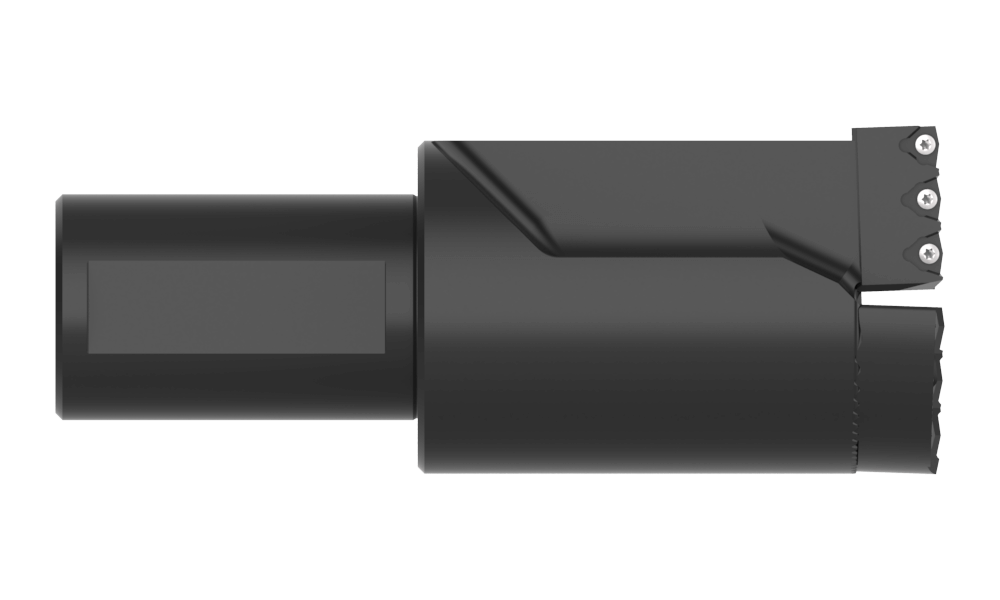

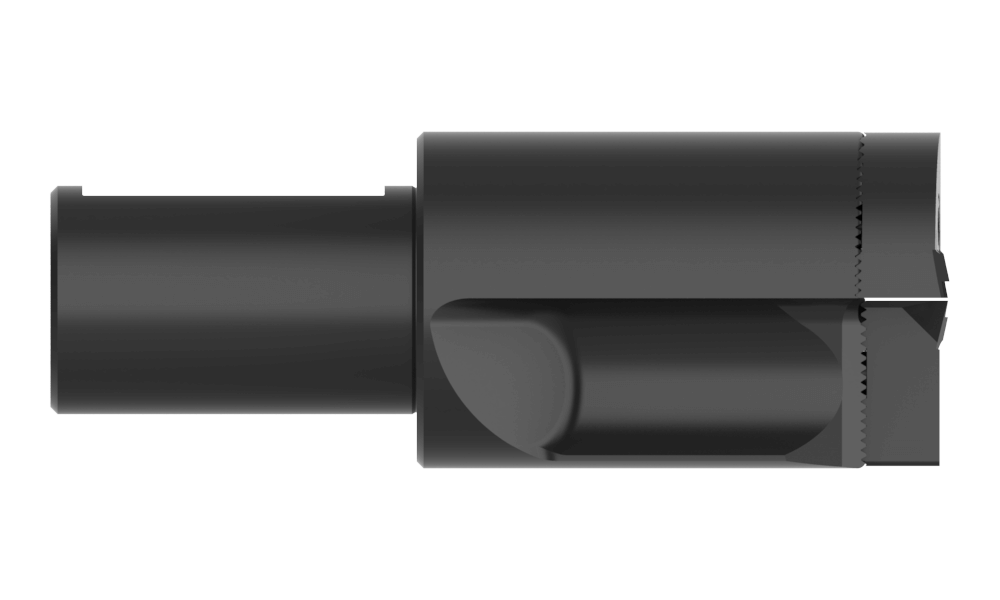

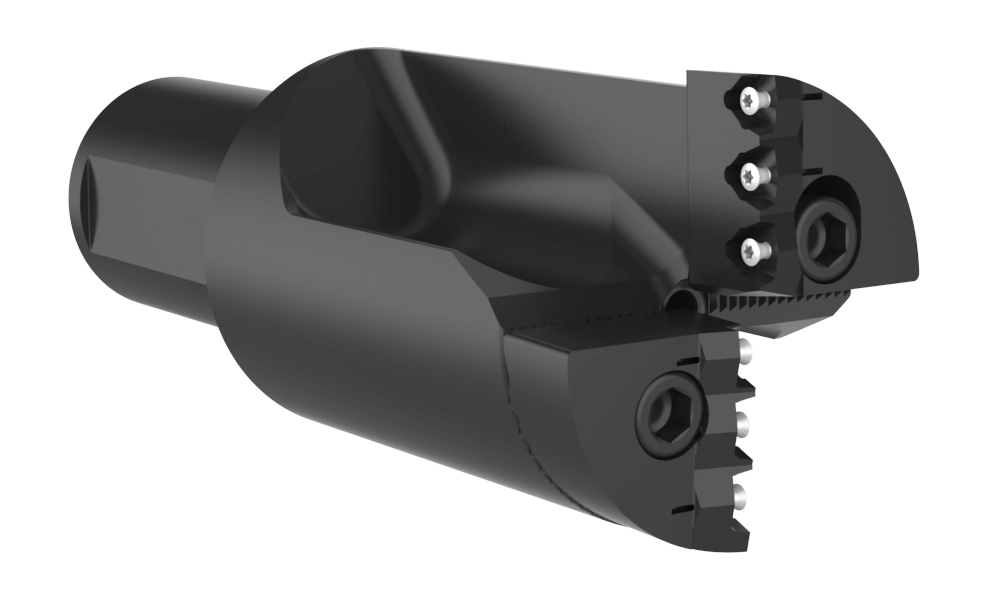

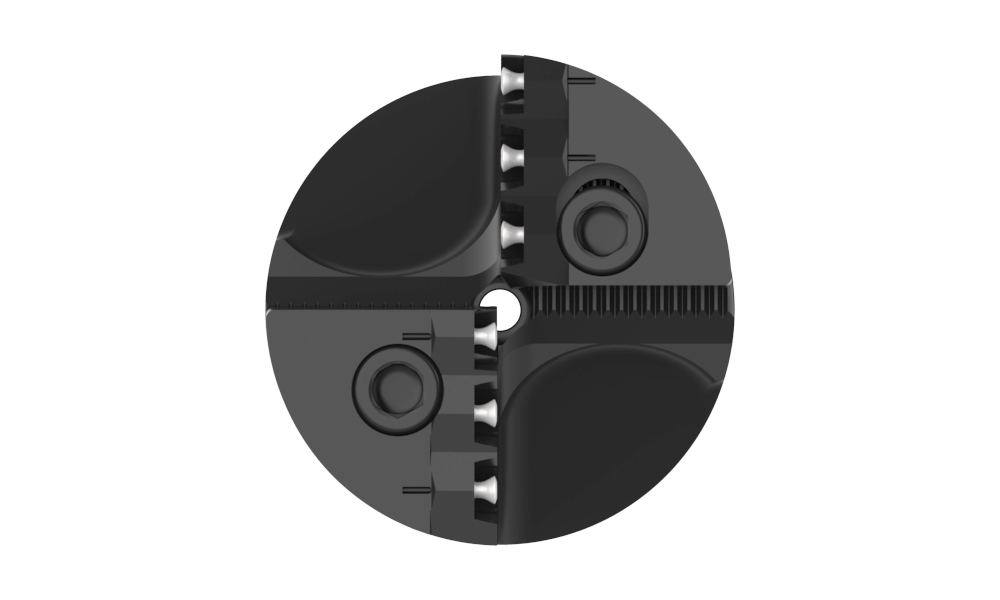

SP48X10-50M
3.0-3.2 Rev. 1.0D 50mmSS SP
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR48
Minimum diameter mm76.2
Maximum diameter mm81.3
Drill depth mm82.2
Overall length mm196.5
Shank diameter mm50
Shank length mm80
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm116.5
Length Type1.0 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)7.58
CategoryStocked
