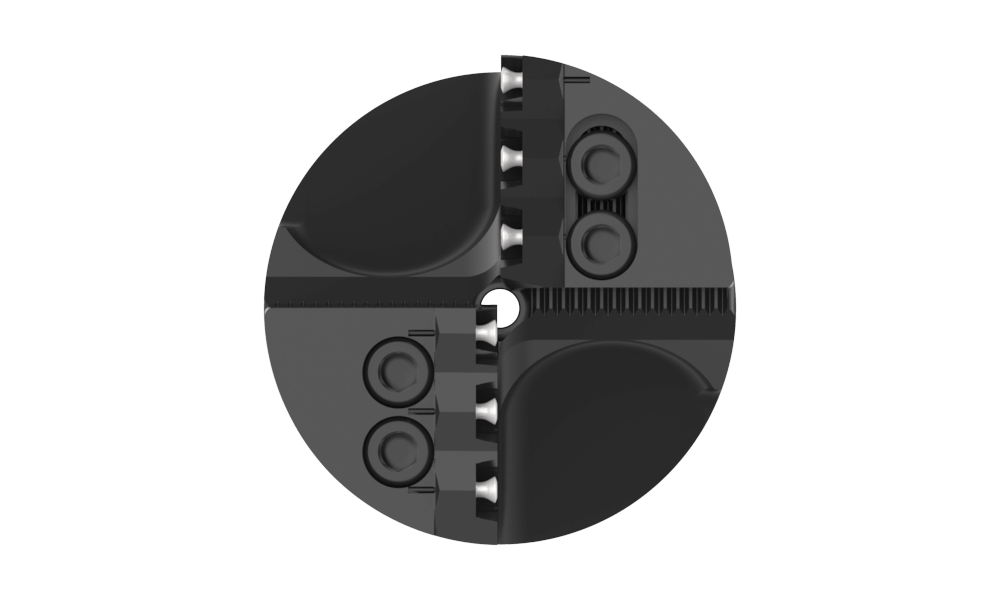

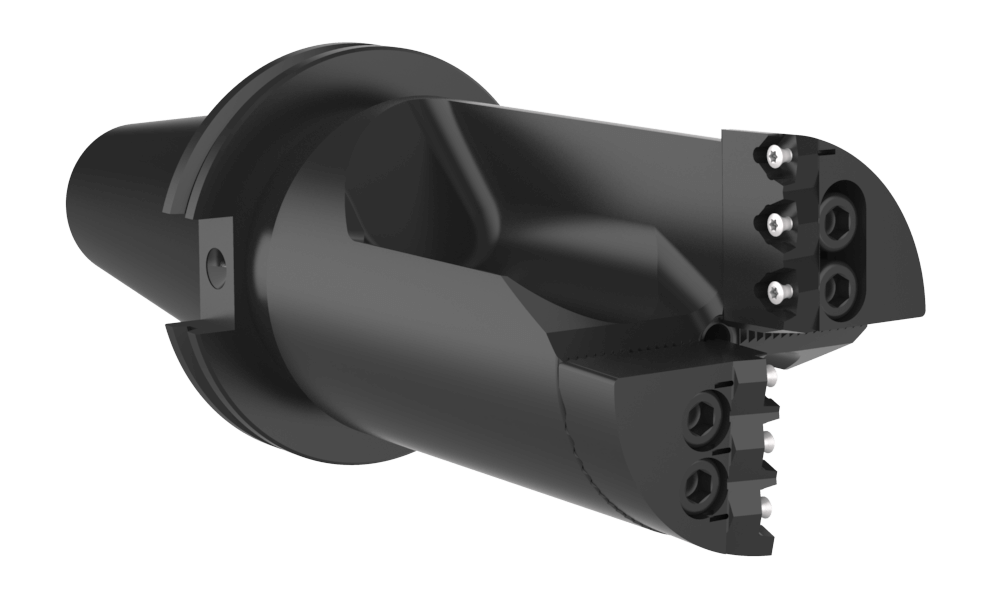

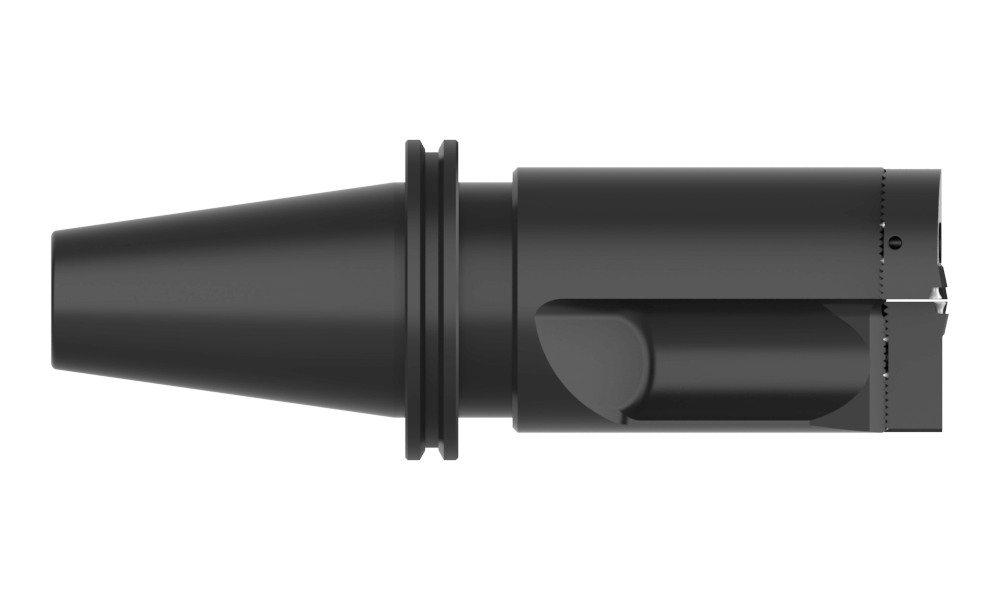

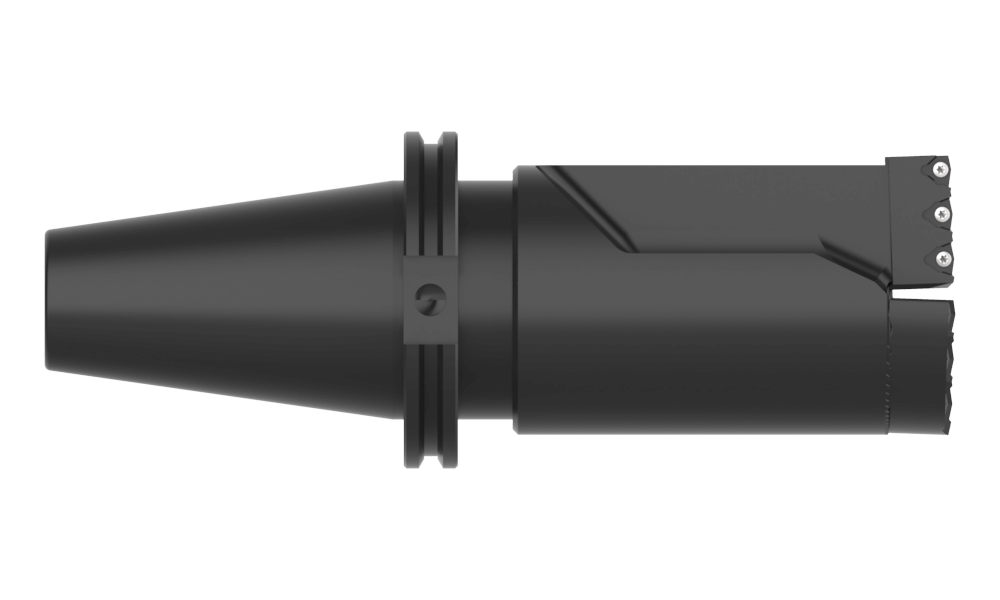

SP52X10-CV50

3.2-3.4 Rev. 1.0D CV50 SP

Revolution Drill® Holder

See Additional Technical Information

Revolution Drill®

Product Specifications

Type of Product	Indexable Drill Body
Series	R52
Minimum diameter inch	3.20
Maximum diameter inch	3.40
Drill depth inch	3-31/64
Quantity of Inserts	4
Insert prefix	OP-05T308-
Shank type	CV 50
Coolant	Yes
Coolant Inlet Style Rear	Through the Shank
Flute Type	Straight
Gage length inch	6-29/64
Length Type	1.0 X D

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	13.86
Category	Stocked
