SP54X10-50M
Revolution Drill® Indexable Drill Body: (86.36 mm-91.44 mm), 1.0xD, Straight Shank
Revolution Drill® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

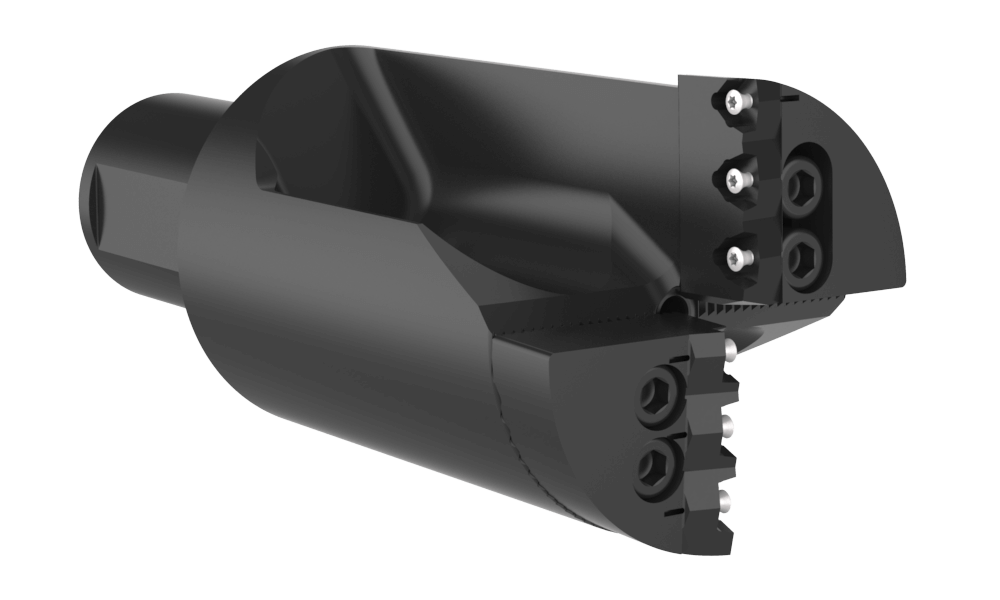

Angle

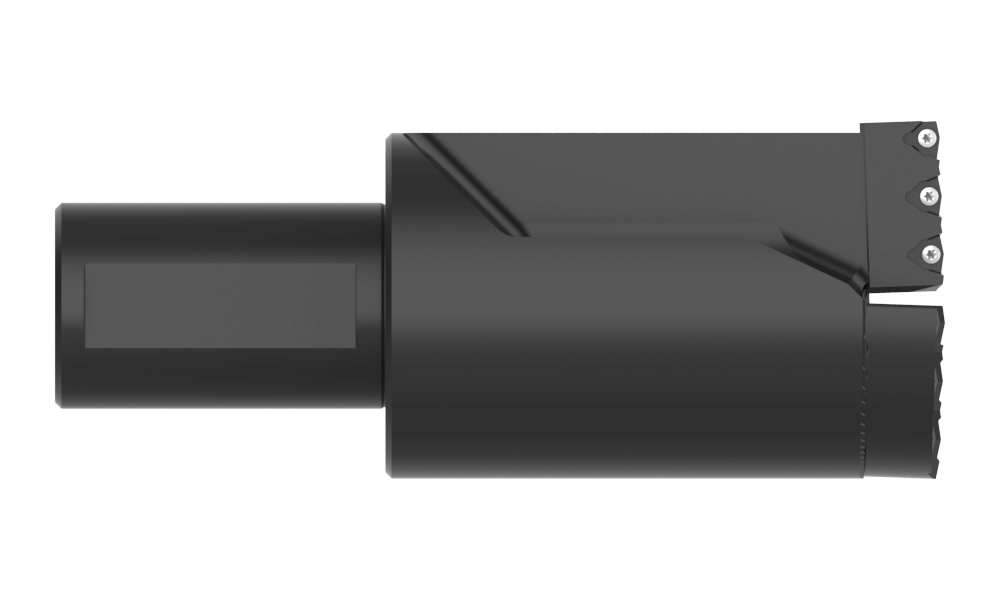

Front

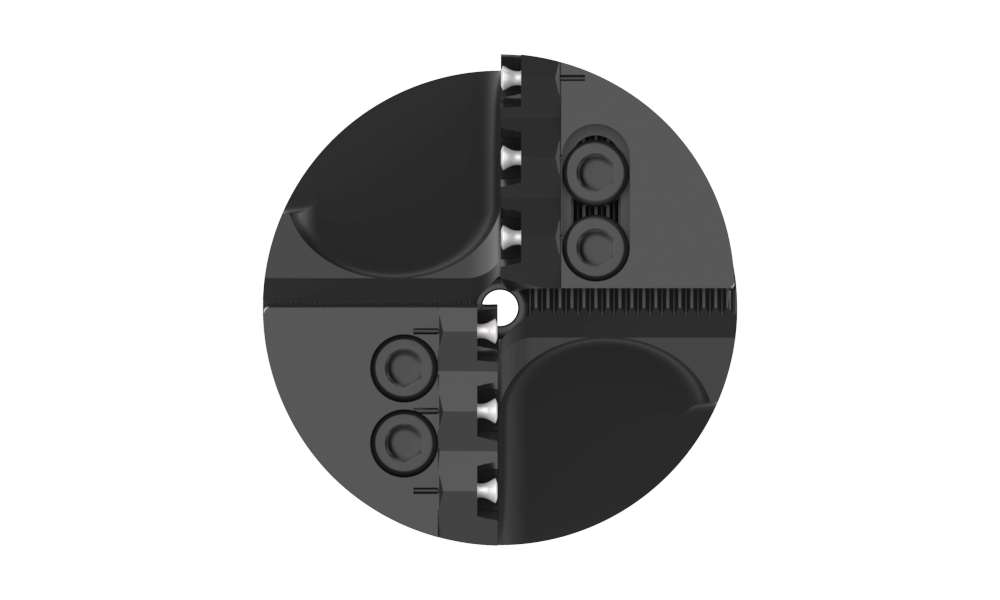

Head

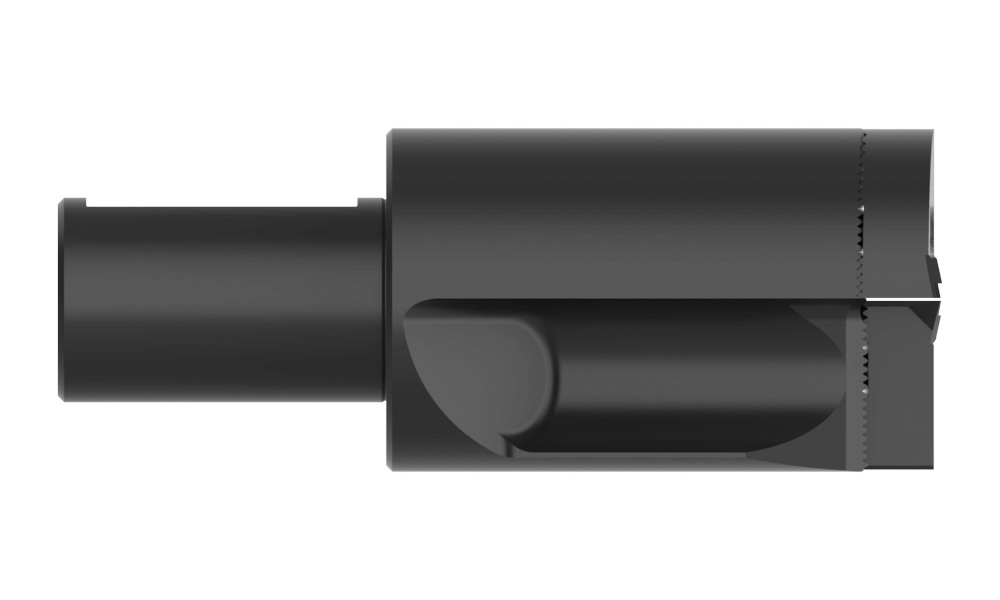

Top
Product Specifications
Series 54
Style Stacked Plate
Quantity of Inserts 6
Minimum diameter mm 86.36
Maximum diameter mm 91.44
Body Diameter mm 83.8
Length Type 1.0xD
Flute Type Straight
Overall length mm 221.6
Tool Reference Length mm 141.6
Drill depth mm 92.9
Shank type Straight
Shank diameter mm 50
Shank length mm 80.0
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Related Items
ImageNotAvailable.png 6mm Hex Key (Qty0)
Mounting Screw Driver
\Accessories\Torx Drivers\TORX-DRIVER.png 8T-9 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
Accessories\Adjusting Screw\Adjusting Screw_ANGLE.png AS-18T9-1 (Qty0)
Replacement Adjusting Screw
REV DRILL ADJUST. SCREW
Accessories\Insert Screw\Insert Screw_Angle.png IS-10-1 (Qty0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
Accessories\Mounting Screw\Mounting Screw_ANGLE.png MS-19M-1 (Qty0)
Replacement Mounting Screw
REV MOUNTING DRILL SCREW
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 10.24
Weight in kg (each) 4.65
Category Stocked
