SP54X10-CV50

3.4-3.6 Rev. 1.0D CV50 SP

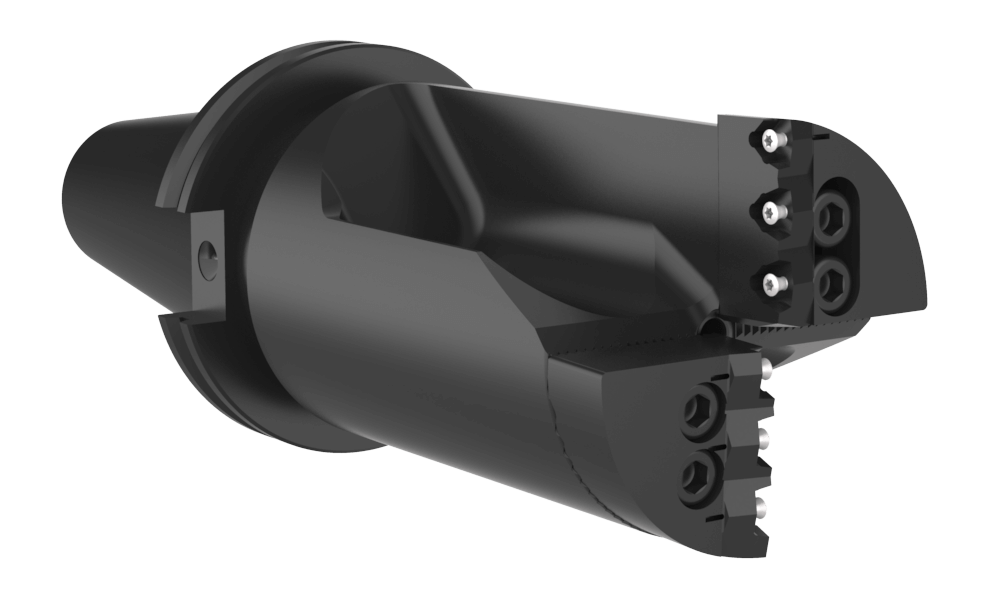

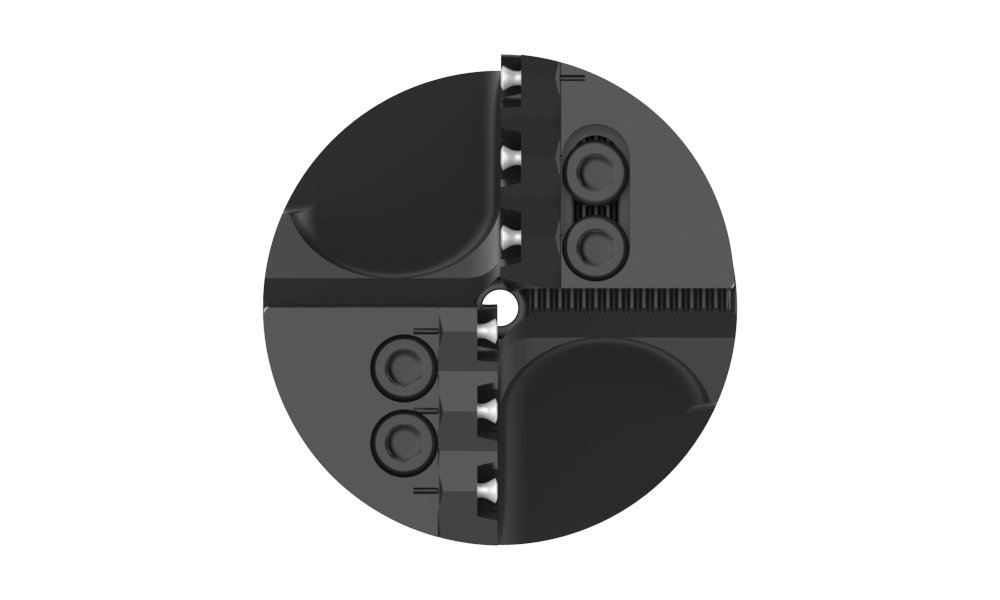

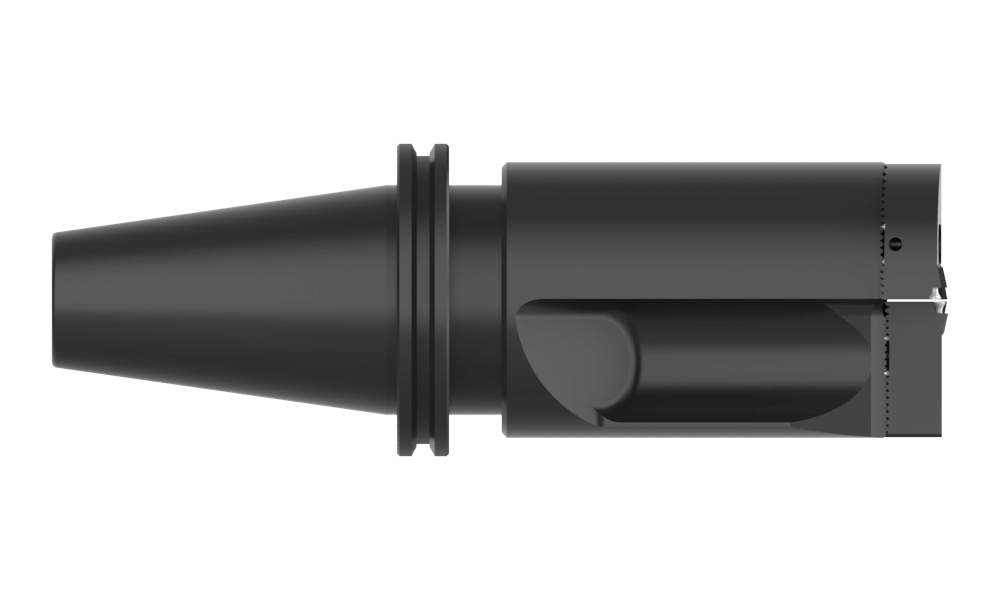

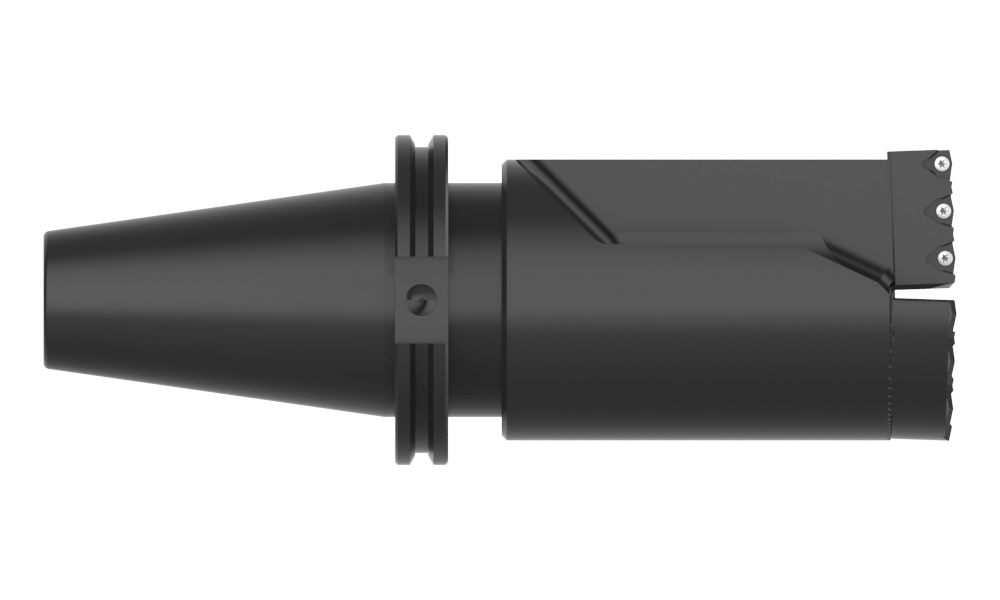

Revolution Drill® Holder

See Additional Technical Information

Revolution Drill®

Product Specifications

Type of Product	Indexable Drill Body
Series	R54
Minimum diameter inch	3.40
Maximum diameter inch	3.60
Drill depth inch	3-23/32
Quantity of Inserts	4
Insert prefix	OP-05T308-
Shank type	CV 50
Coolant	Yes
Coolant Inlet Style Rear	Through the Shank
Flute Type	Straight
Gage length inch	6-11/16
Length Type	1.0 X D

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	15.03
Category	Stocked
