SP58X10-50M
3.8-4.0 Rev. 1.0D 50mmSS SP

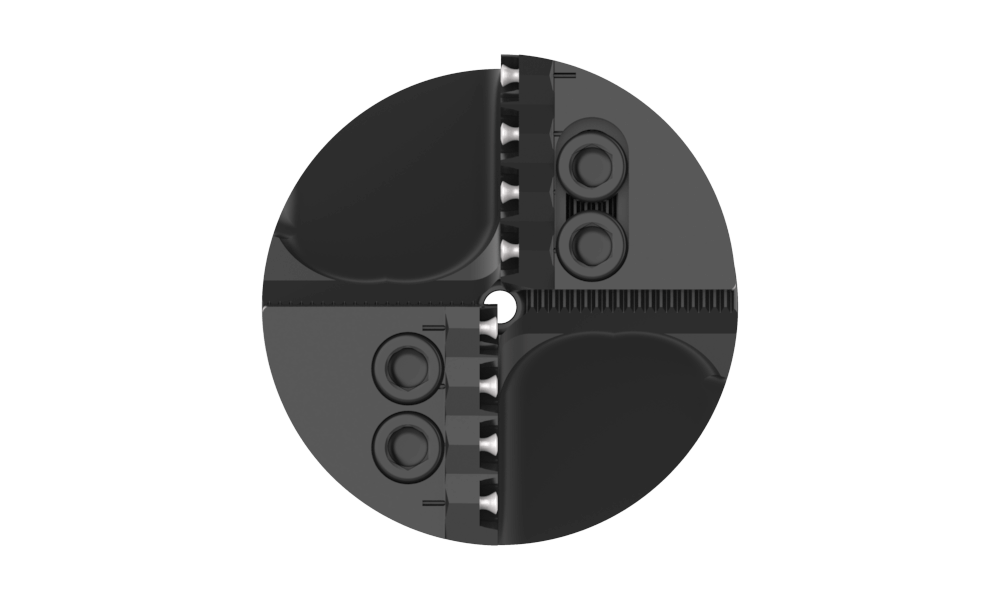

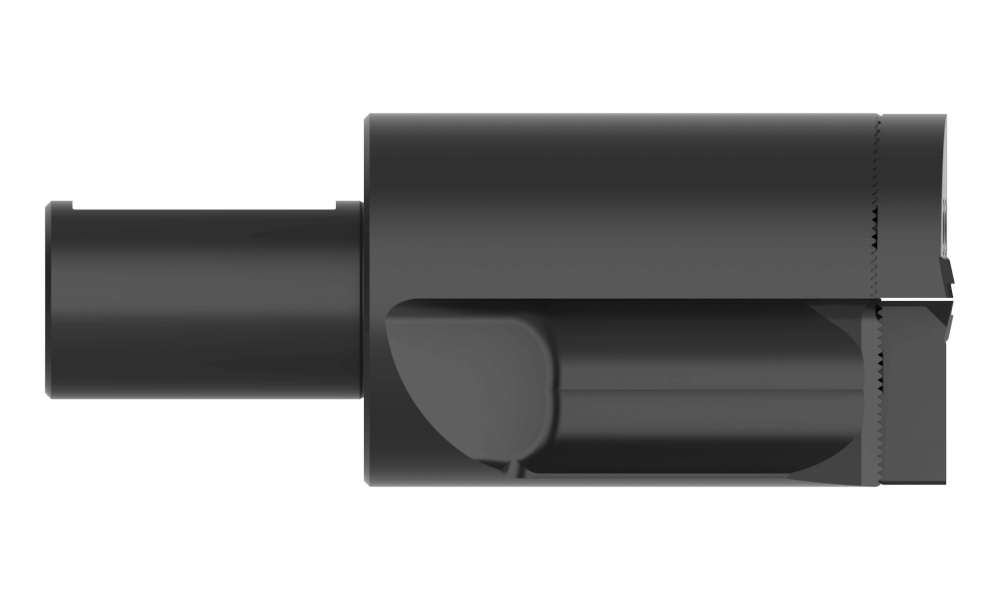

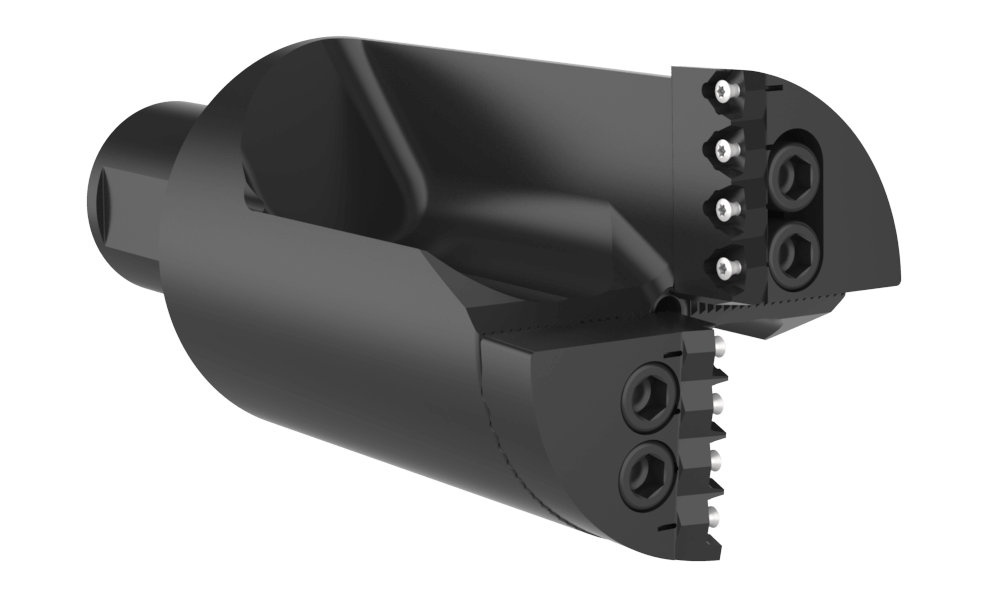

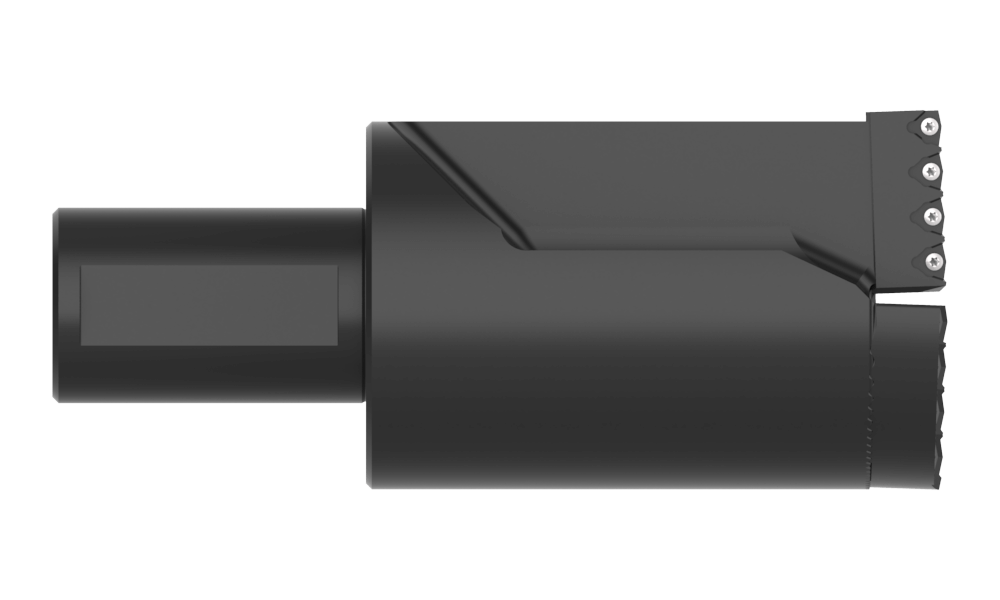

Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR58
Minimum diameter mm96.5
Maximum diameter mm101.6
Drill depth mm99.8
Overall length mm227.4
Shank diameter mm50
Shank length mm80
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm147.4
Length Type1.0 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)13.14
CategoryStocked
