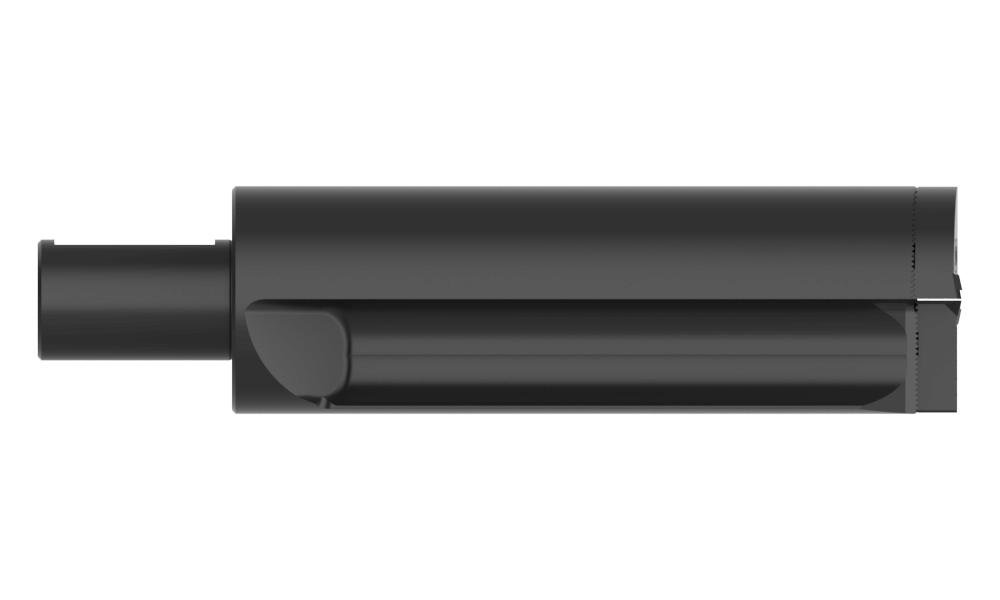

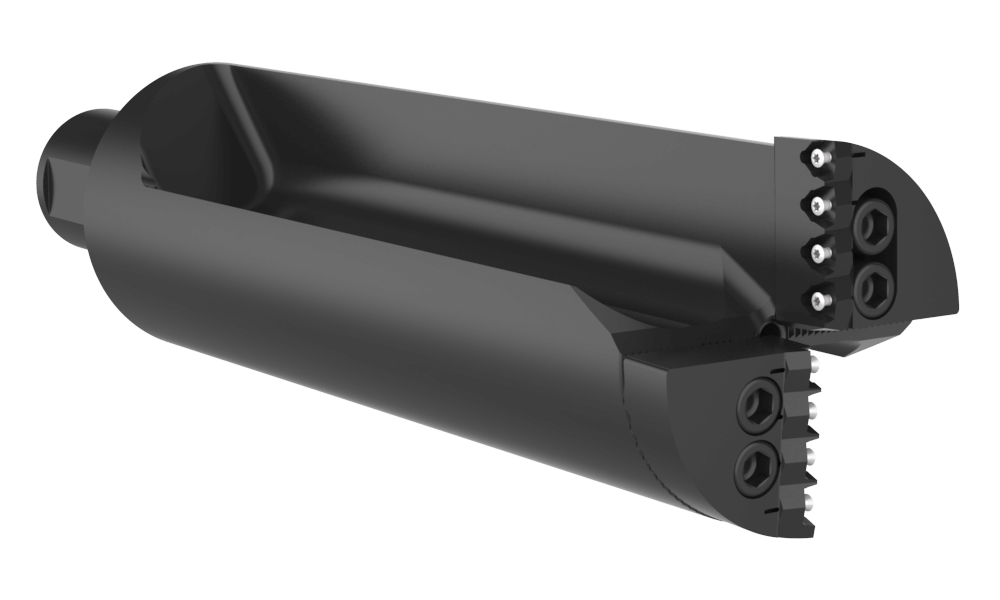

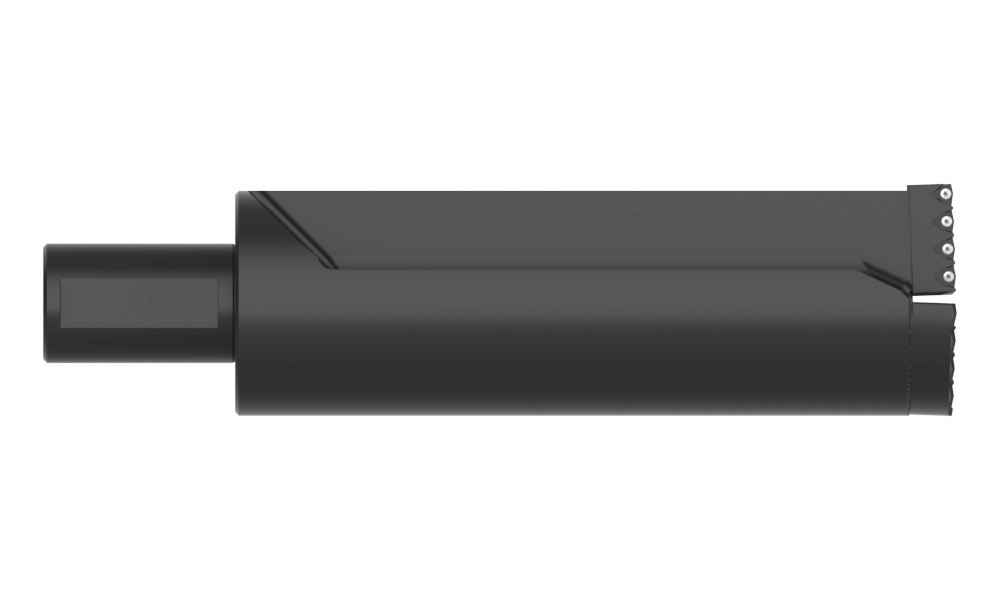

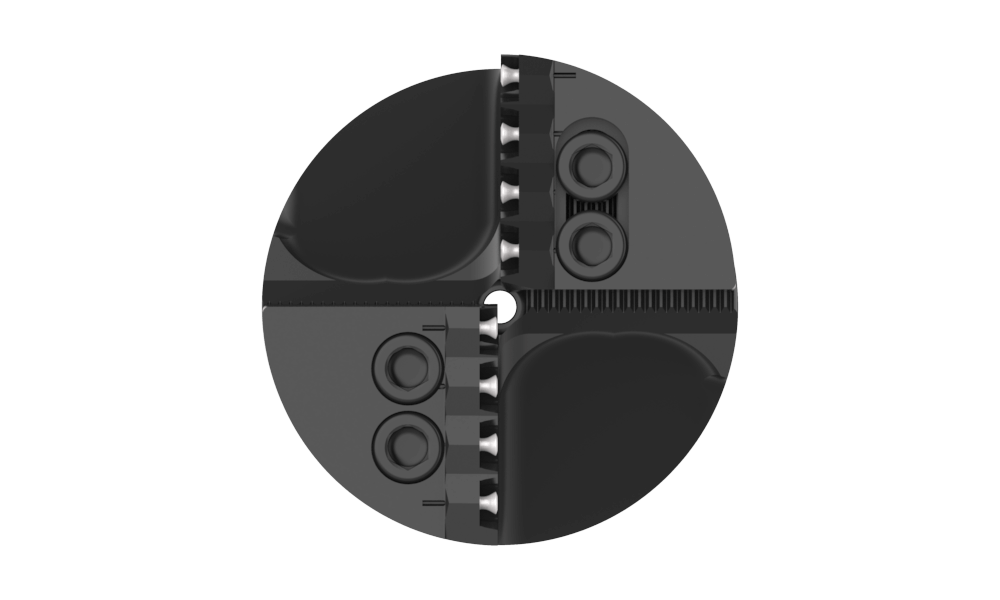

SP58X25-50M
3.8-4.0 Rev. 2.2D 50mmSS SP
Revolution Drill® Holder






Product Specifications
Type of ProductIndexable Drill Body
SeriesR58
Minimum diameter mm96.5
Maximum diameter mm101.6
Drill depth mm252.2
Overall length mm379.8
Shank diameter mm50
Shank length mm80
Quantity of Inserts4
Insert prefixOP-05T308-
Shank typeStraight
CoolantYes
Coolant Inlet Style RearThrough the Shank
Flute TypeStraight
FlatYes
Gage length mm299.8
Length Type2.5 X D
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)24.31
CategoryStocked
