TM10150
ThreadMills USA® Solid Carbide Threadmill: ISO 1.5, M10, Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

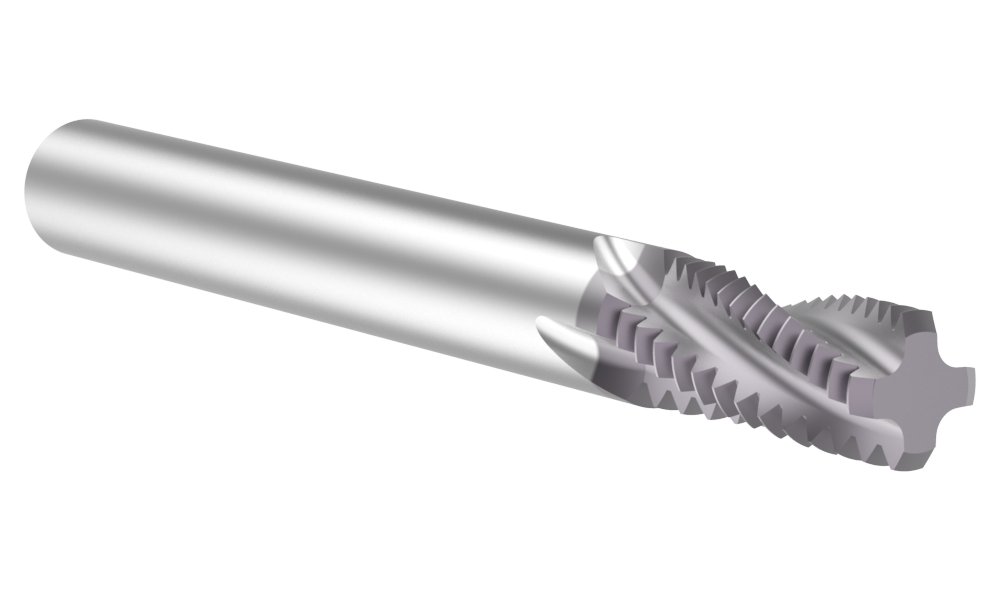

Angle

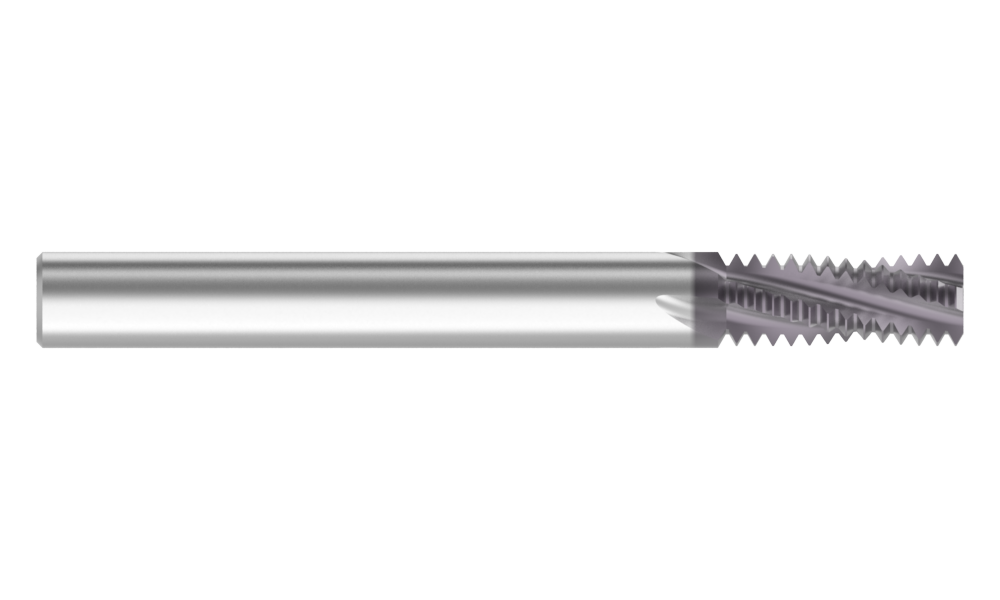

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length inch 3
Shank diameter inch 0.312
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard ISO
Minimum Thread Size M10
Pitch 1.5
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter inch 0.3
Length of cut inch 0.75
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.11
Weight in kg (each) 0.05
Category Stocked
