TM11240-3T3X
AccuThread® T3 Solid Carbide Threadmill: UN 40, #4, Helical 3 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

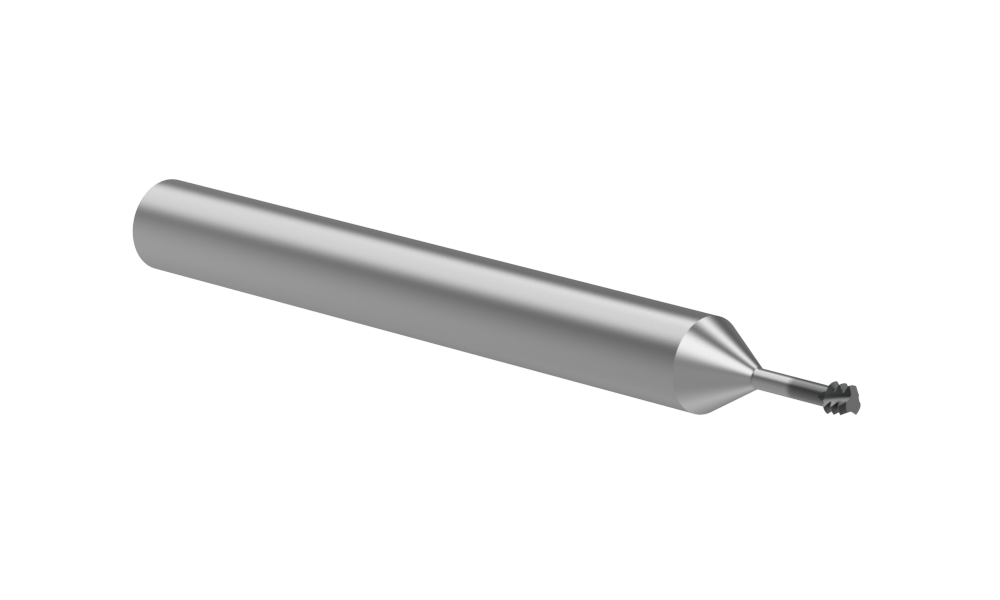

Angle

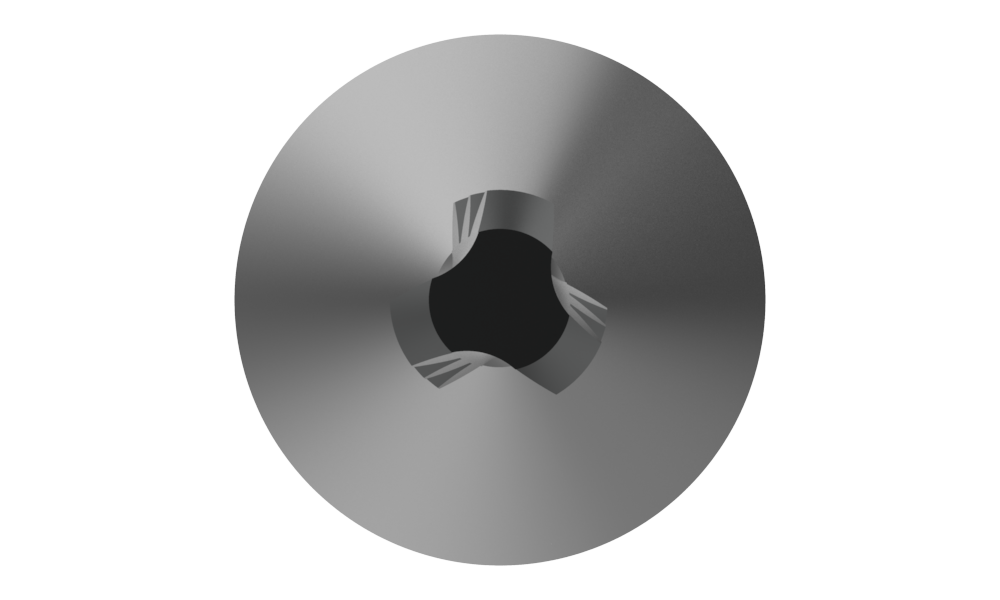

Front

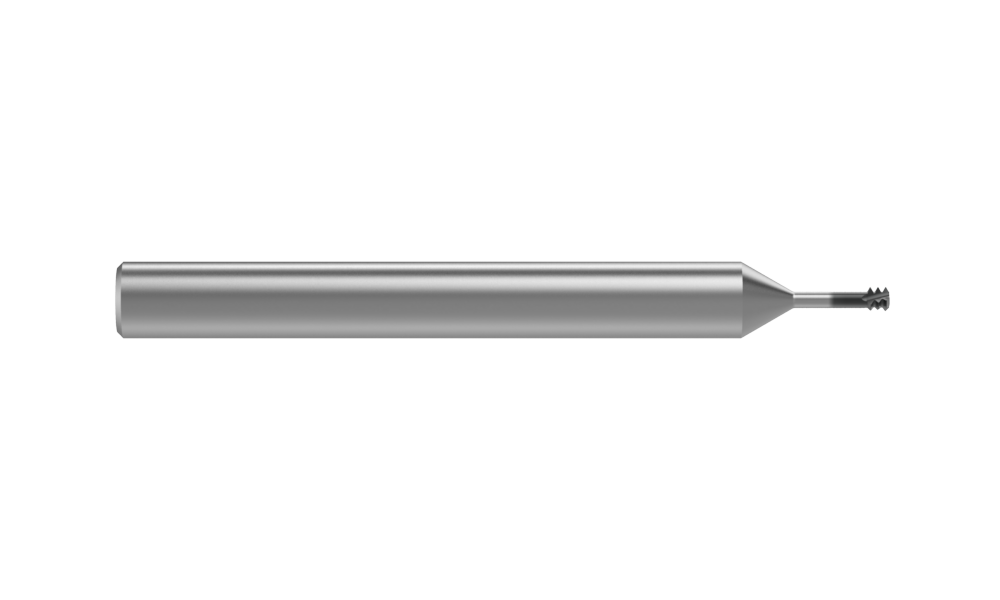

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 3X
Weldon Flat No
Material Carbide
Shank diameter inch 0.25
Pitch 40
Overall length inch 2.5
Number of Flutes 3
Coating AM210®
Shank type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size #4
Length of cut inch 0.31
Flute Type Helical
Cutting direction Left Hand (M04)
Thread Standard UN
Cutter Diameter inch 0.085
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.06
Weight in kg (each) 0.03
Category Stocked
