TM12540
ThreadMills USA® Solid Carbide Threadmill: UN 40, #4, Straight 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

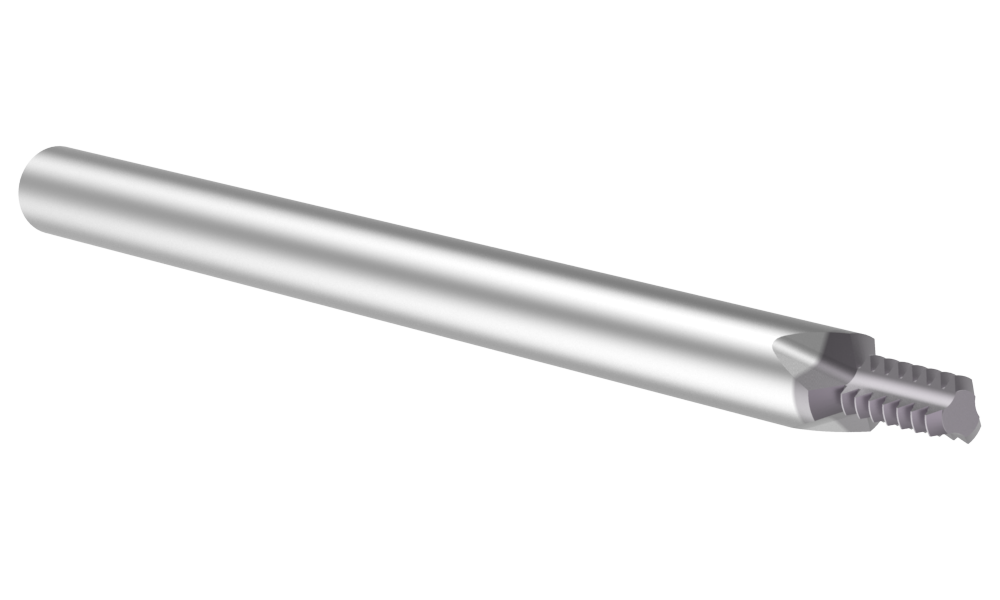

Angle

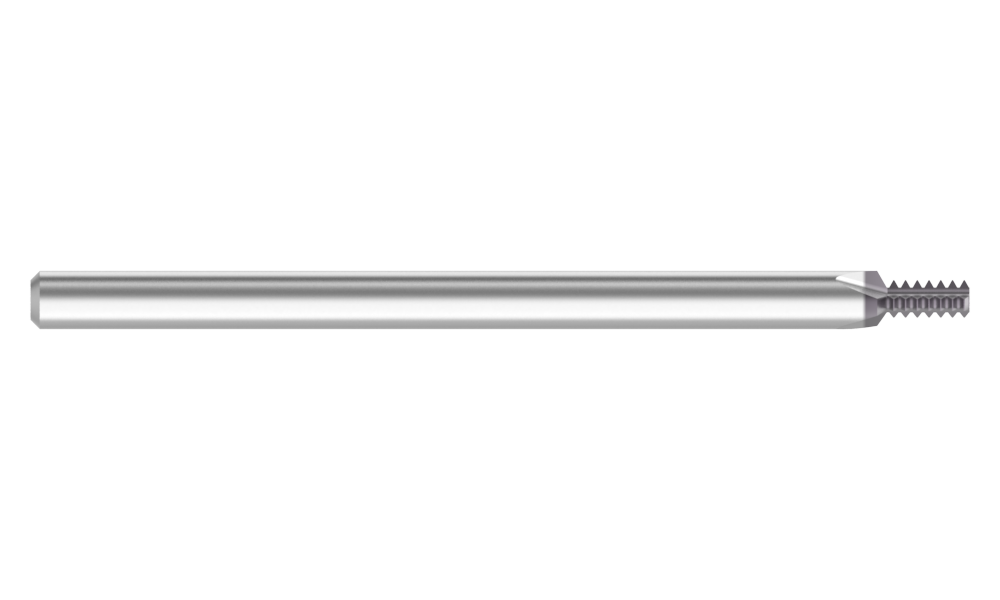

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 2
Shank Diameter (inch) 0.125
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Straight
Thread Standard UN
Minimum Thread Size #4
Pitch 40
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter (inch) 0.085
Length of Cut (inch) 0.175
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.01
Weight in kg (each) 0
Category Stocked
