TM14NPTCHM
ThreadMills USA® Solid Carbide Threadmill: NPT 14, 1/2" and 3/4", Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

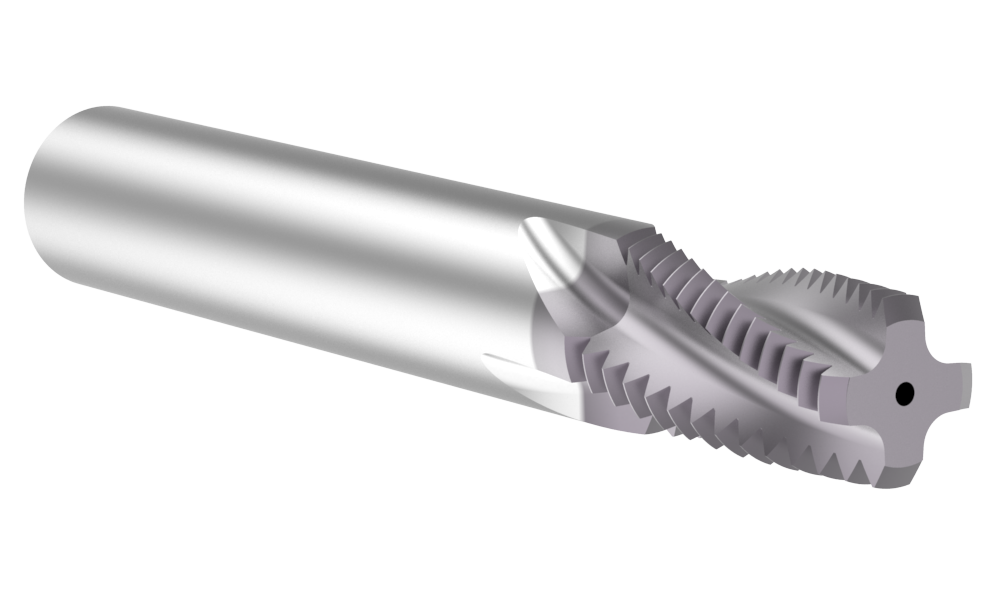

Angle

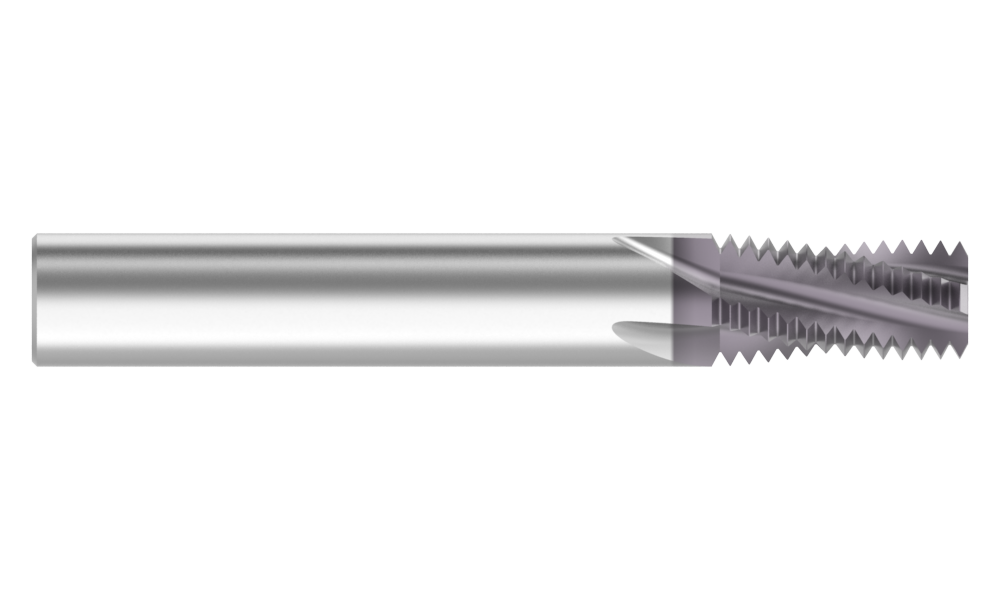

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length mm 84
Shank diameter mm 12
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPT
Minimum Thread Size 1/2" and 3/4"
Pitch 14
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter mm 11.95
Length of cut mm 23.7
Coolant Through Yes
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.25
Weight in kg (each) 0.11
Category Stocked
