TM16200M-3T3X
AccuThread® T3 Solid Carbide Threadmill: ISO 2, M16, Helical 4 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image







Default Image

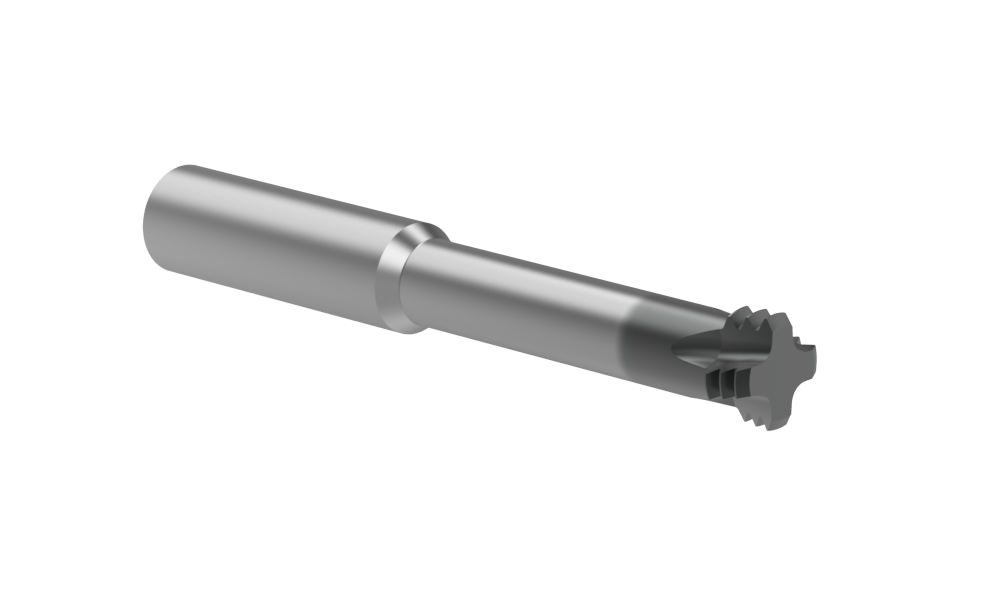

Angle

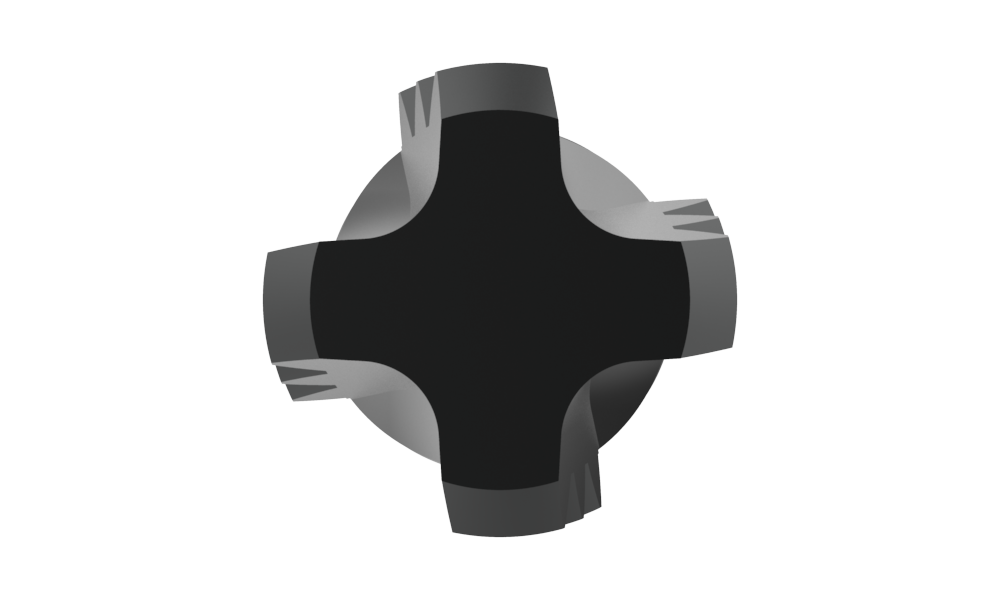

Front

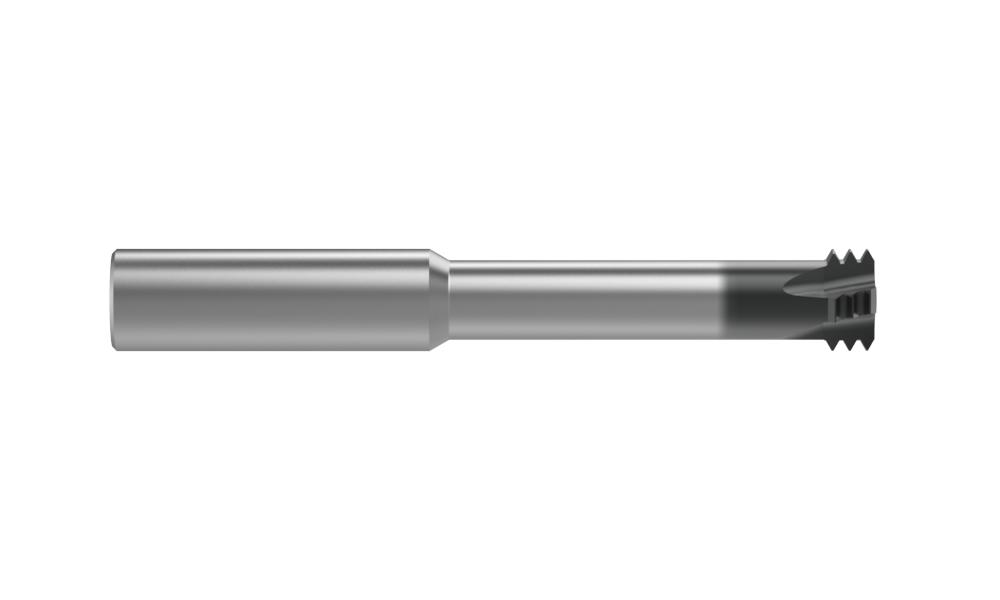

Side
Product Specifications
Shank Diameter (mm) 12
Pitch 2
Cutter Diameter (mm) 11.94
Flute Type Helical
Material Carbide
Coating AM210®
Coolant Through No
Overall Length (mm) 88.9
Length of Cut (mm) 49.53
Shank Type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size M16
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.25
Weight in kg (each) 0.11
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYETHYLENE
Total Recycled Content 0.00%
Weight 0.015 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.019 lbs
Recycleable? Yes
Contains PFAS? No
